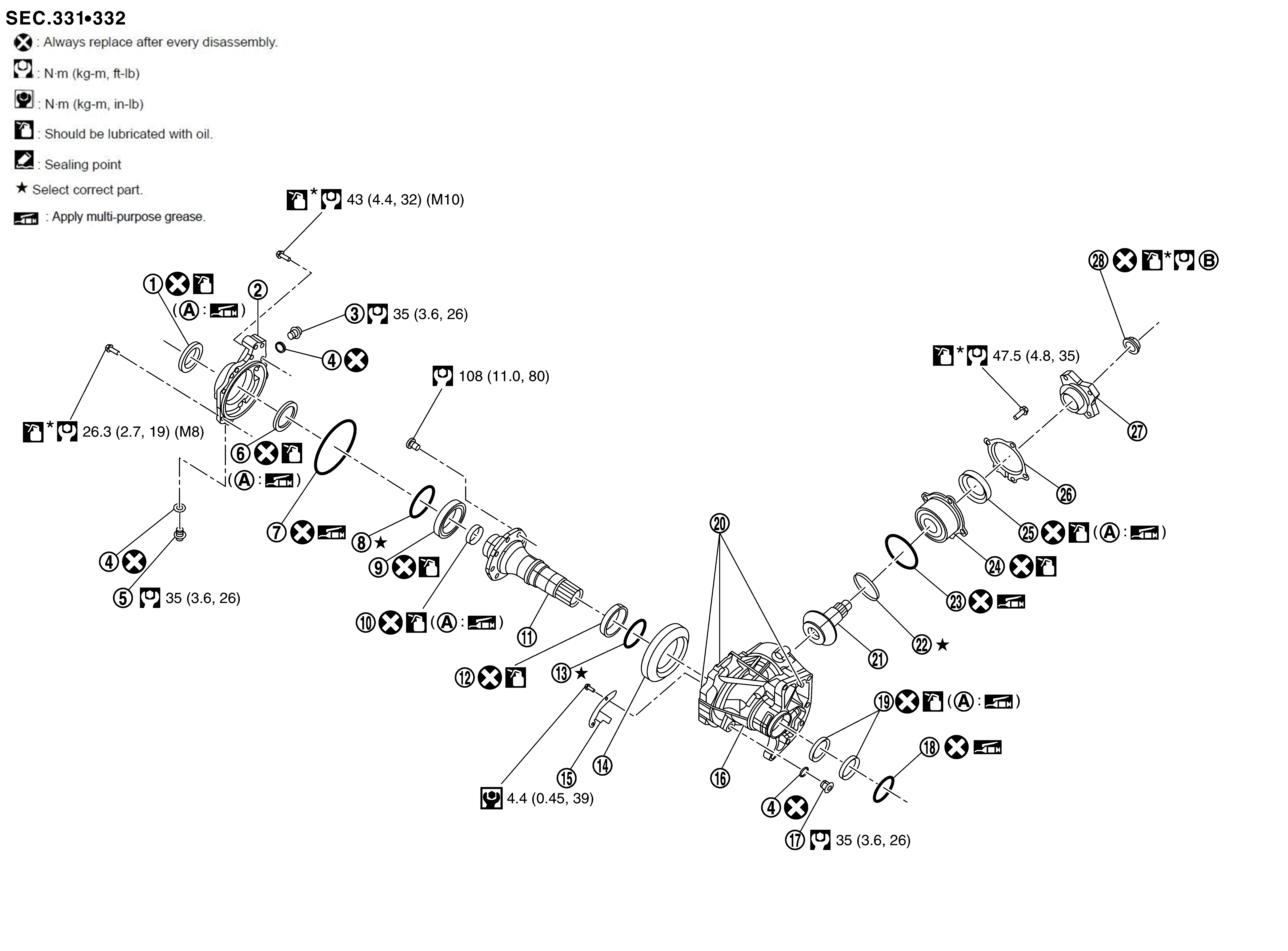

| 1. |
Oil seal |
2. |
Transfer cover |
3. |
Filler plug |
| 4. |
Gasket |
5. |
Drain plug |
6. |
Oil seal |
| 7. |
O-ring |
8. |
Ring gear bearing adjusting shim (transfer cover side) |
9. |
Ring gear bearing (transfer cover side) |
| 10. |
Drive shaft oil seal |
11. |
Ring gear shaft |
12. |
Ring gear bearing (transfer case side) |
| 13. |
Ring gear bearing adjusting shim (transfer case side) |
14. |
Ring gear |
15. |
Baffle plate |
| 16. |
Transfer case |
17. |
Plug |
18. |
O-ring |
| 19. |
Oil seal |
20. |
Dowel pin |
21. |
Drive pinion |
| 22. |
Drive pinion adjusting shim |
23. |
O-ring |
24. |
Pinion bearing assembly |
| 25. |
Oil seal |
26. |
Dust cover |
27. |
Companion flange |
| 28. |
Pinion lock nut |
|
|
|
|
| A. |
Oil seal lip |
B. |
Comply with the assembly procedure when tightening. Refer to ASSEMBLY . |
|
|
: N•m (kg - m, ft - lb) |
: N•m (kg - m, in - lb) |
: Always replace after every disassembly. |
: Apply gear oil. |
| *
: Apply anti-corrosive oil. |
: Apply multi-purpose grease. |
: Select with proper thickness. |
