Component Parts Location

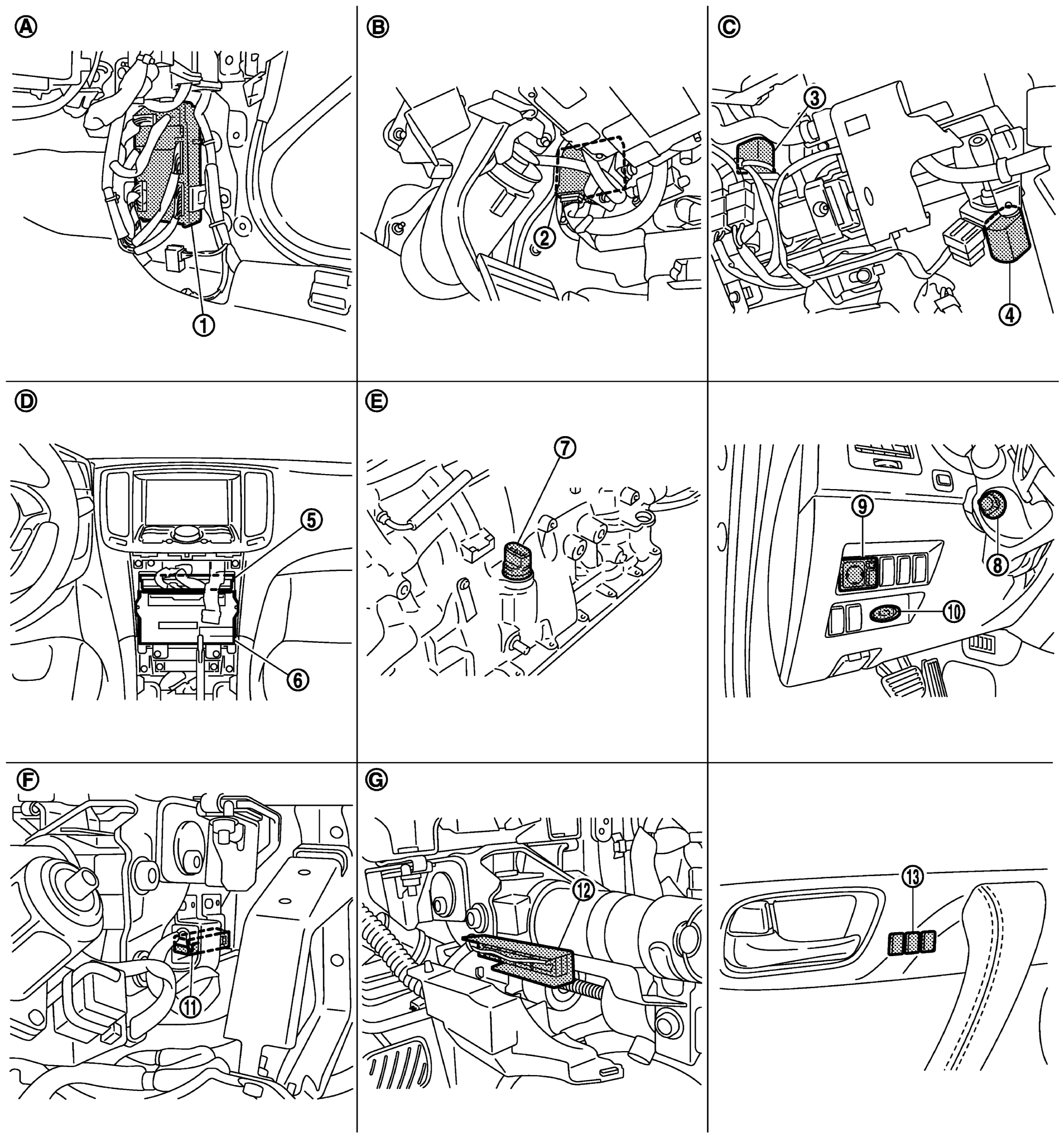

Fig 1: Automatic Drive Positioner Component Parts Location (1 Of 2)
GNSJMJIA1961ZZ-961Courtesy of NISSAN NORTH AMERICA, INC.
1. BCM M118, M119, M122, M123 2. Automatic Drive Positioner Control Unit M51, M52 3. Tilt Motor M49
4. Telescopic Motor M49 5. Unified Meter And A/C Amp. M67 6. AV Control Unit
With NAVI M87, M88
Without NAVI M83, M85
7. AT Assembly Connector F51 8. Tilt & Telescopic Switch M31 9. Door Mirror Remote Control Switch M26
10. Key Slot M22 11. Tilt Sensor M48 12. Telescopic Sensor M48
13. Seat Memory Switch D5
A. Dash Side Lower (Passenger Side) B. View With Instrument Driver Lower Panel Removed C. View With Steering Column Cover Lower And Upper Removed
D. Behind Cluster Lid C E. A/T Assembly
(TCM Is Built In A/T Assembly)		 F. View With Instrument Driver Lower Panel Removed
G View With Steering Column Cover Lower And Upper Removed

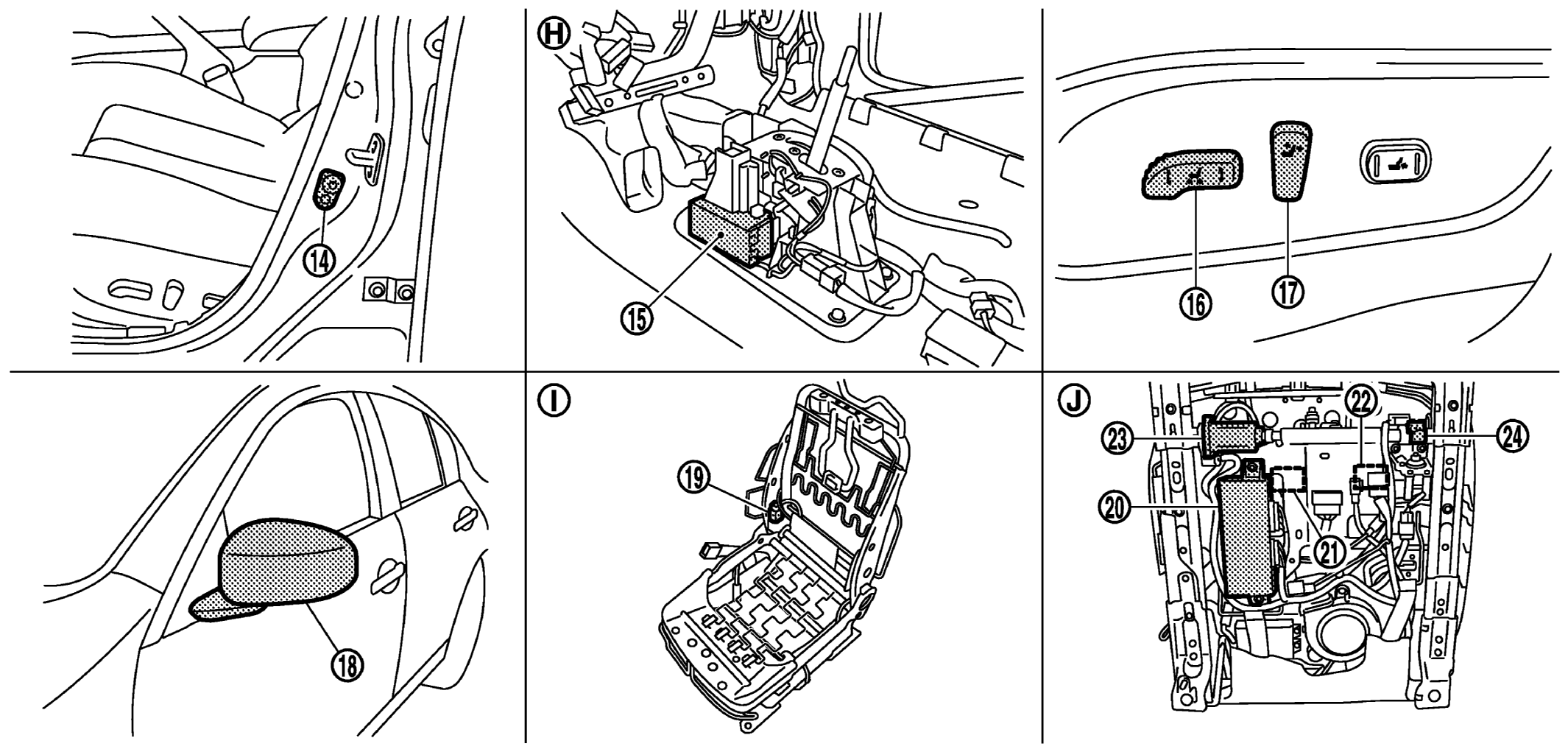

Fig 2: Automatic Drive Positioner Component Parts Location (2 Of 2)
GNSJMJIA1962ZZ-962Courtesy of NISSAN NORTH AMERICA, INC.
14. Front Door Switch (Driver Side) B16 15. A/T Shift Selector (Detention Switch) M137 16. Sliding, Lifting Switch
(Power Seat Switch B459)
17. Reclining Switch (Power Seat Switch B459) 18. Door Mirror (Driver Side) D3 19. Reclining Motor B454
20. Driver Seat Control Unit B451, B452 21. Lifting Motor (Front) B455 22. Lifting Motor (Rear) B456
23. Sliding Motor B461 24. Sliding Sensor B453
H. View With Center Console Assembly Removed I. View With Seat Cushion Pad And Seatback Pad Removed J. Backside Of The Seat Cushion
