Heater & Air Conditioning Control System (Introduction)
>>
System Description
>>
Compressor Control Function
>>
With ACCS
>>
Heater & Air Conditioning Control System
>>
Engine Compartment
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Engine Compartment

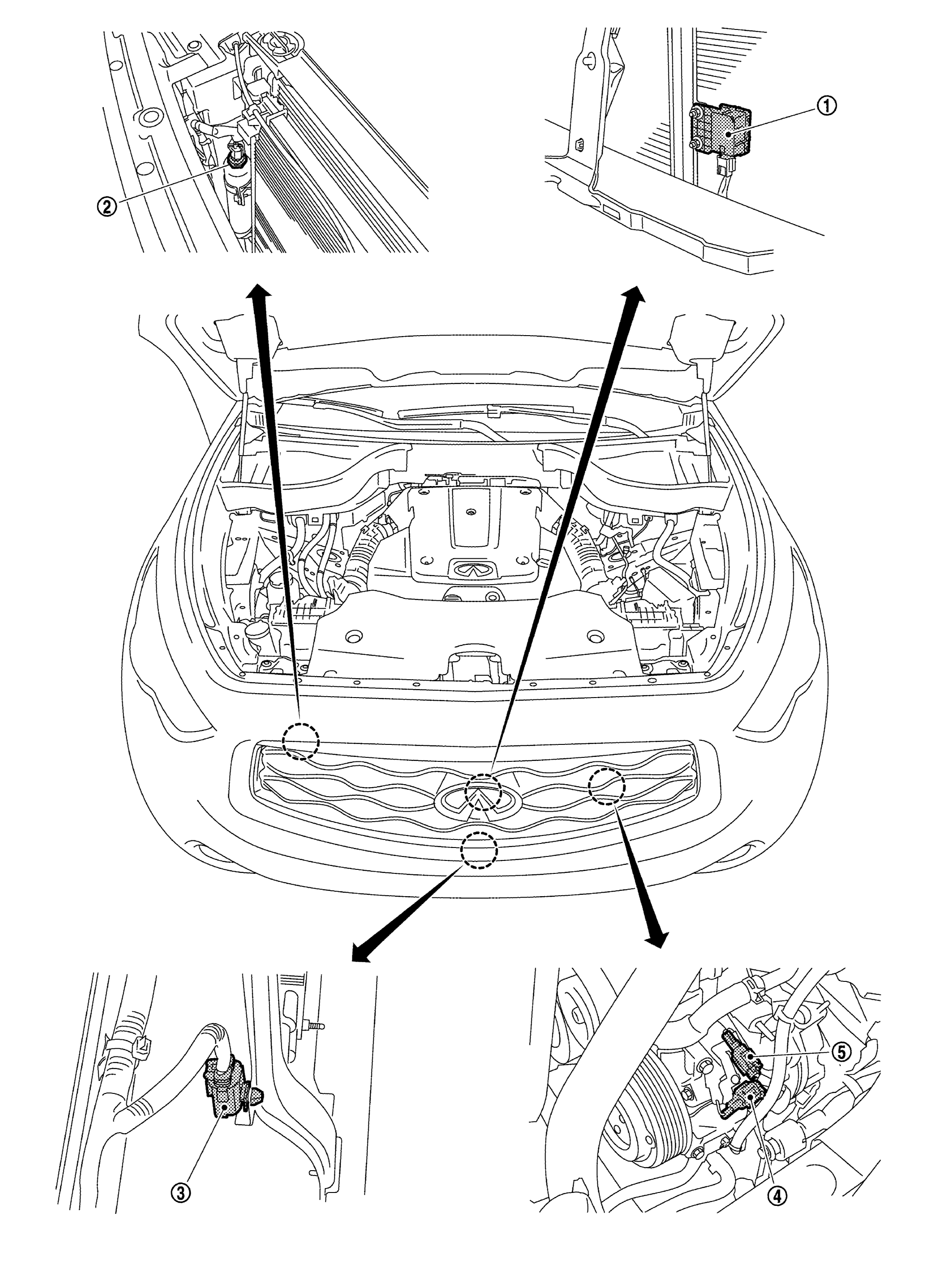

Fig 1: Heater & Air Conditioning Control System (Engine Compartment) (With ACCS)
Courtesy of NISSAN NORTH AMERICA, INC.
1.
Exhaust Gas/Outside Odor Detecting Sensor
2.
Refrigerant Pressure Sensor
3.
Ambient Sensor
4.
Compressor (magnet clutch)
5.
Compressor (ECV)
