Engine Compartment

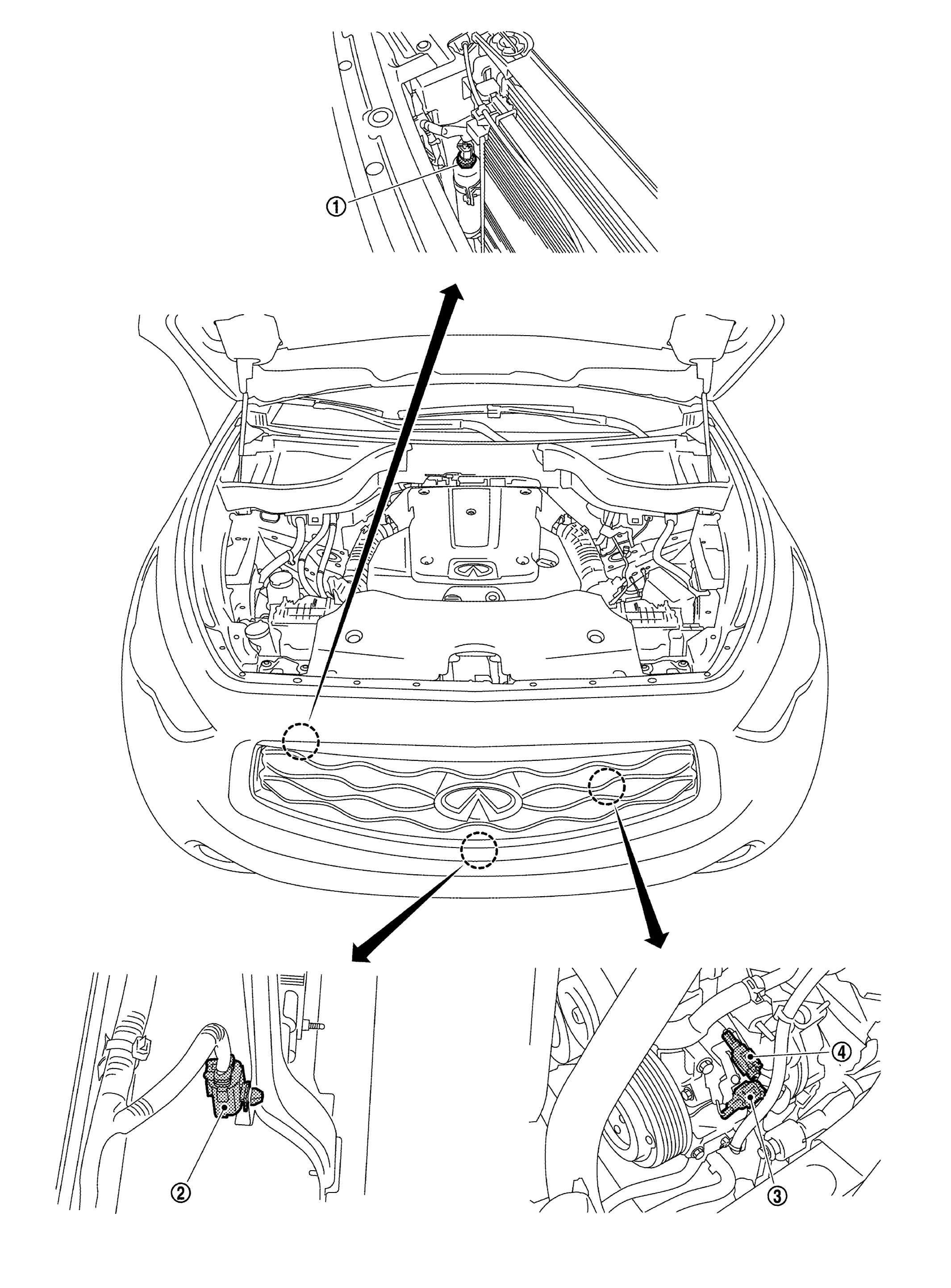

Fig 1: Heater & Air Conditioning Control System Component Part Location (Engine Compartment) (Without ACCS)
GNSJSIIA1284ZZ-284Courtesy of NISSAN NORTH AMERICA, INC.
1. Refrigerant Pressure Sensor 2. Ambient Sensor 3. Compressor (Magnet Clutch)
4. Compressor (ECV)
