Heater & Air Conditioning Control System (Introduction)
>>
System Description
>>
Compressor Control Function
>>
Without ACCS
>>
Component Part Location
>>
Passenger Compartment
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Passenger Compartment

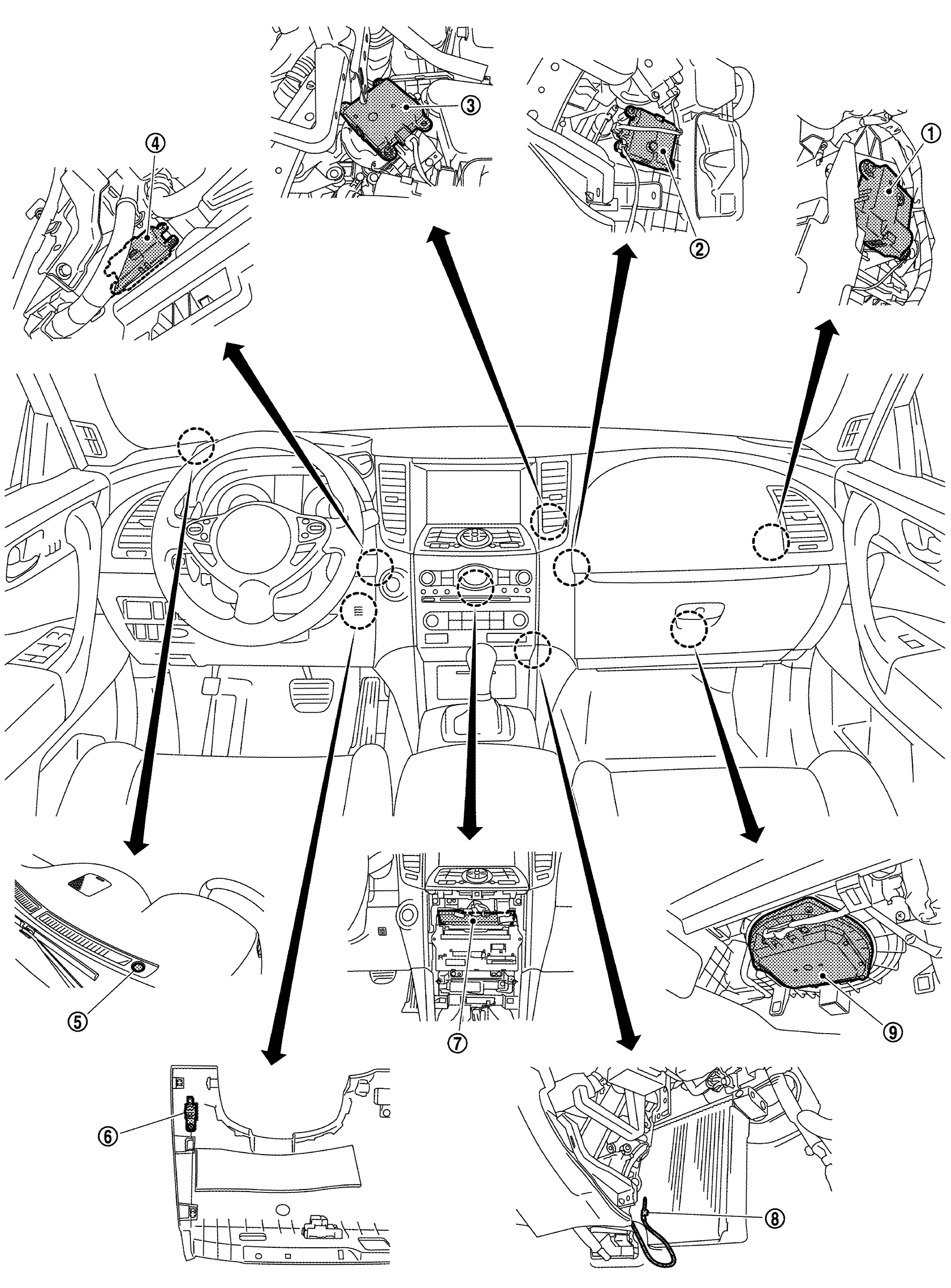

Fig 1: Heater & Air Conditioning Control System Component Part Location (Passenger Compartment)
Courtesy of NISSAN NORTH AMERICA, INC.
1.
Intake Door Motor
2.
Air Mix Door Motor (Passenger Side)
3.
Mode Door Motor
4.
Air Mix Door Motor (Driver Side)
5.
Sunload Sensor
6.
In-Vehicle Sensor
7.
Unified Meter And A/C Amp.
8.
Intake Sensor
9.
Blower Motor
