Wiring Diagram - Electronically Controlled Power Steering System

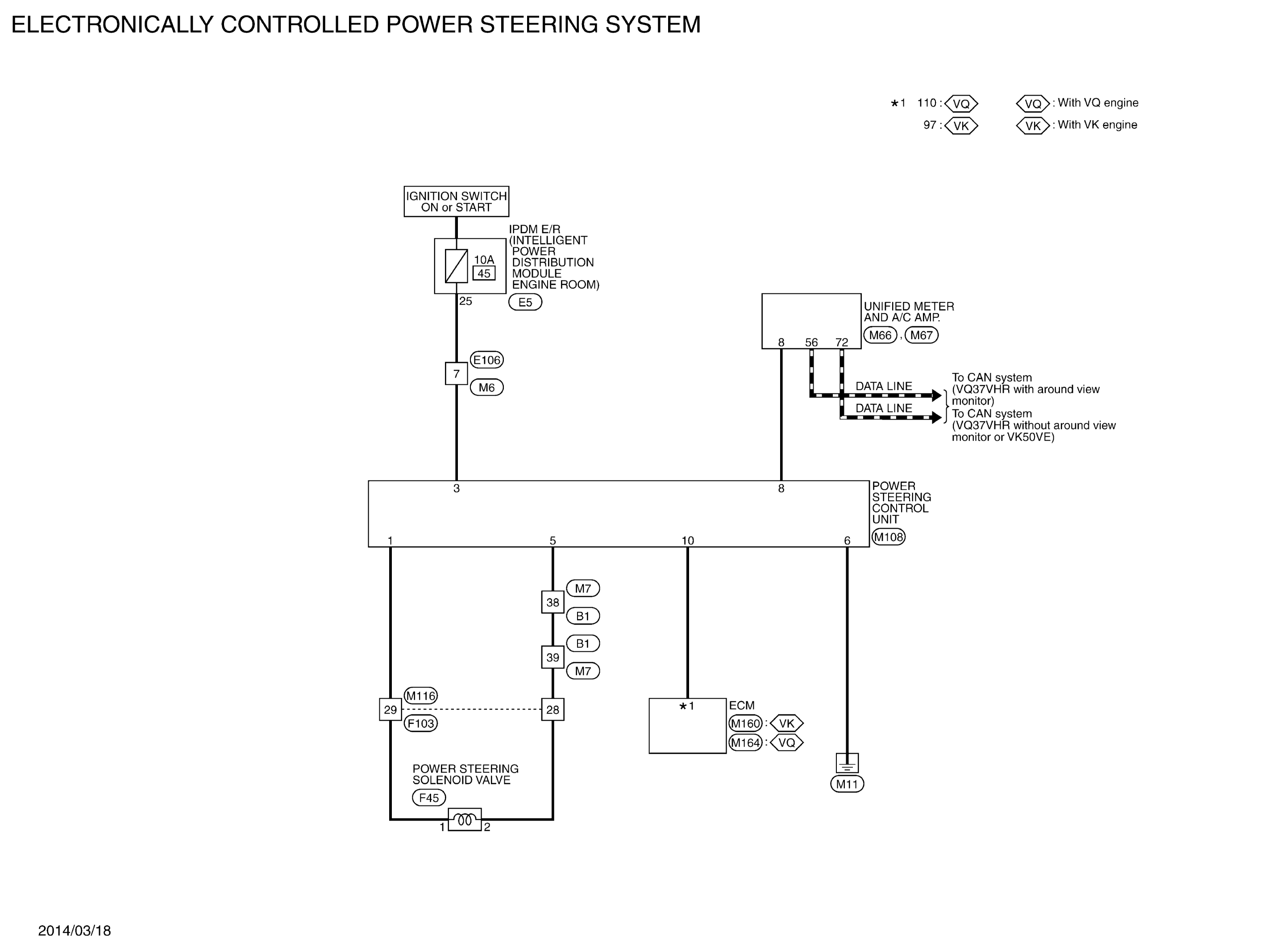

Fig 1: Electronically Controlled Power Steering System Wiring Diagram
GNSJRGWC1257GB-257Courtesy of NISSAN NORTH AMERICA, INC.

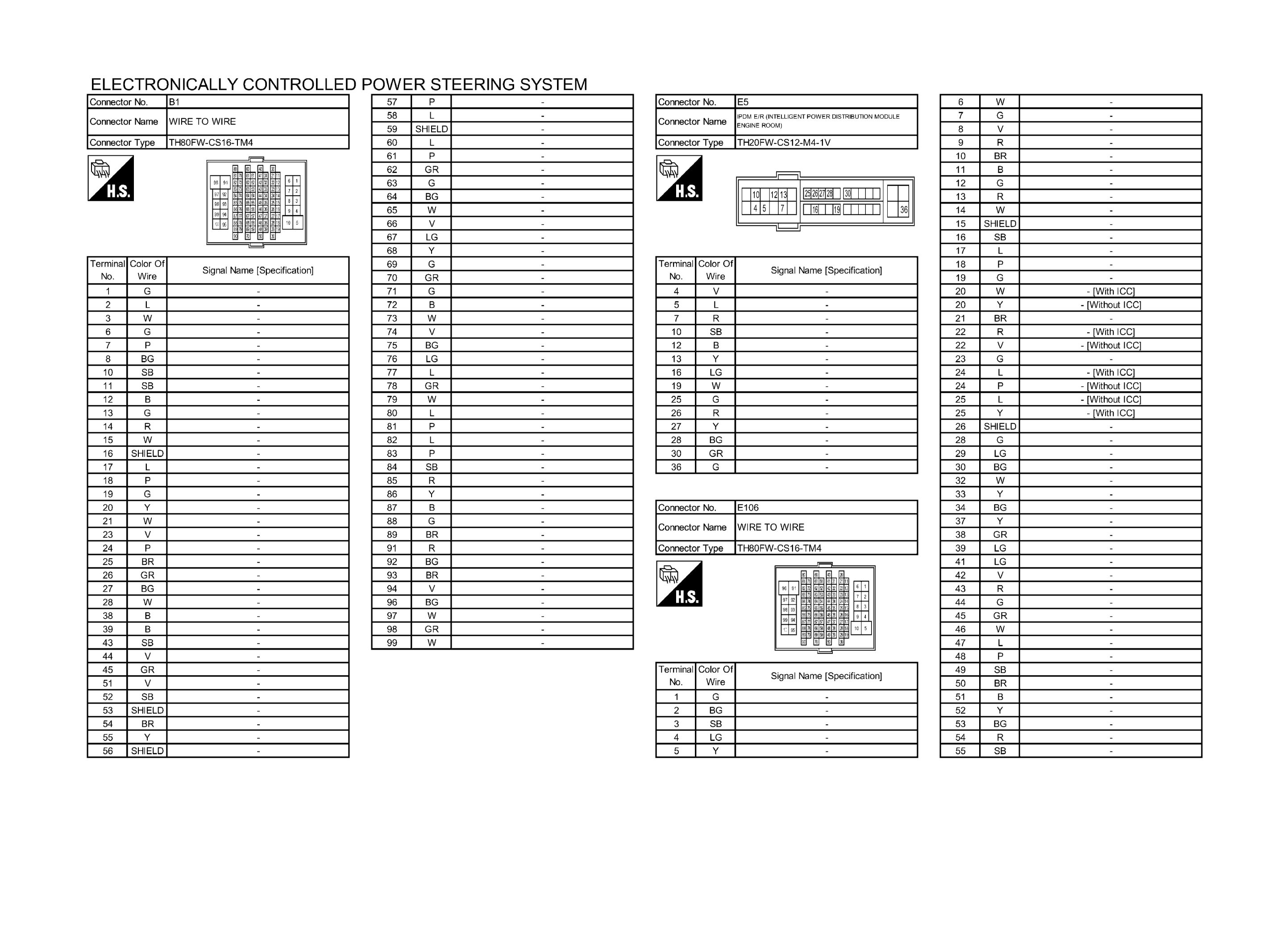

Fig 2: Electronically Controlled Power Steering System Connector End Views (1 Of 4)
GNSJRGWC1258GB-258Courtesy of NISSAN NORTH AMERICA, INC.

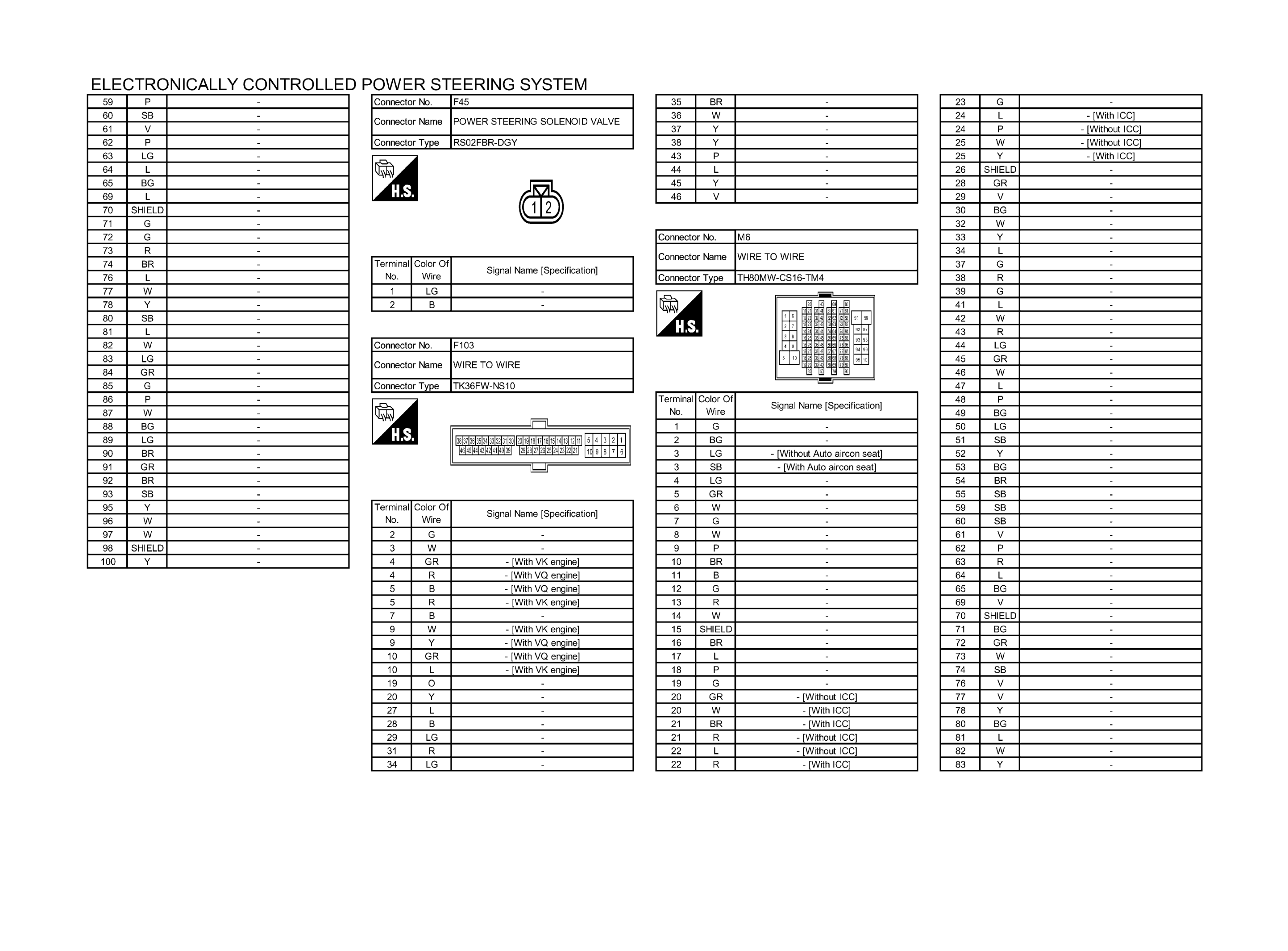

Fig 3: Electronically Controlled Power Steering System Connector End Views (2 Of 4)
GNSJRGWC1259GB-259Courtesy of NISSAN NORTH AMERICA, INC.

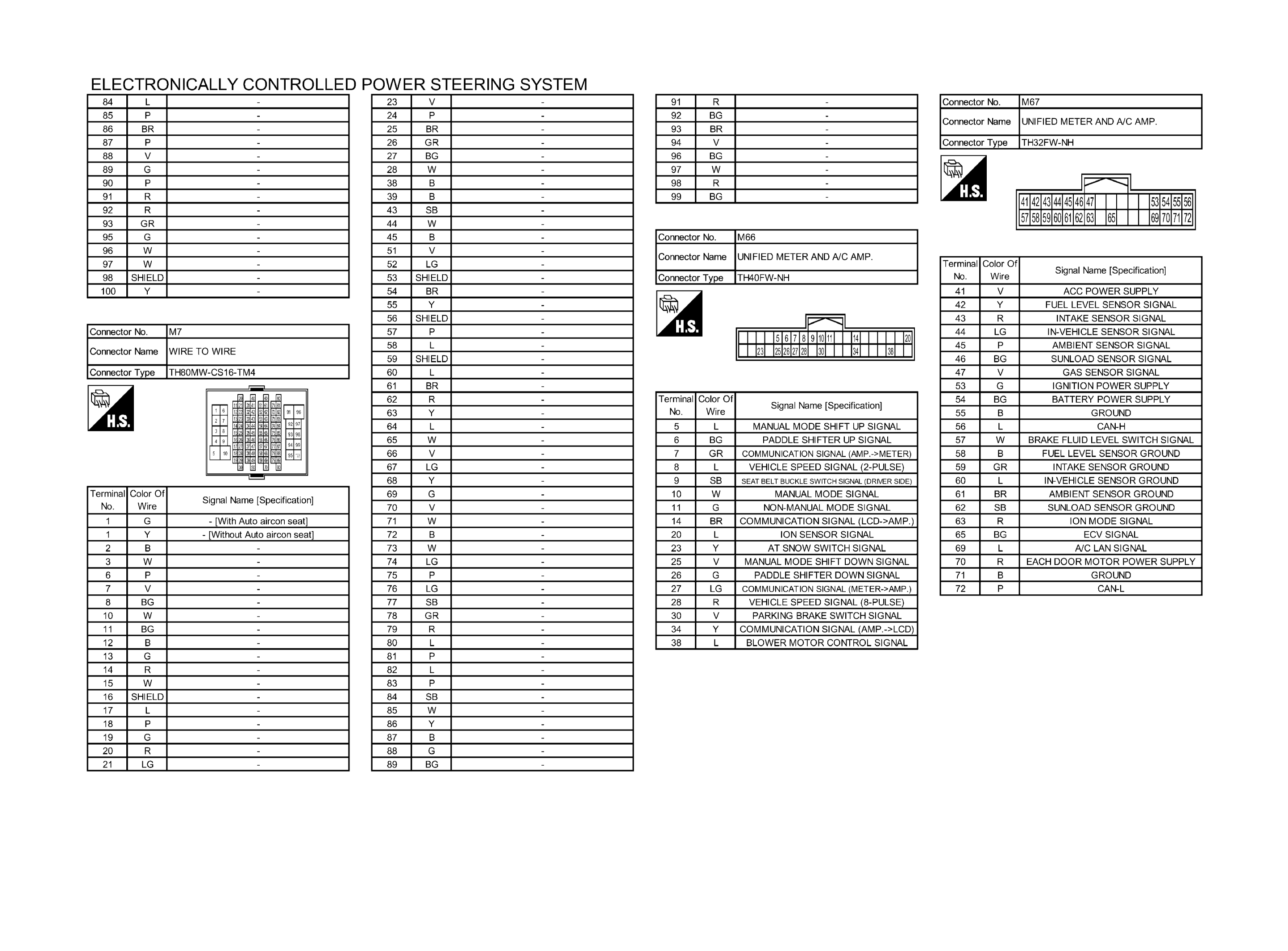

Fig 4: Electronically Controlled Power Steering System Connector End Views (3 Of 4)
GNSJRGWC1260GB-260Courtesy of NISSAN NORTH AMERICA, INC.

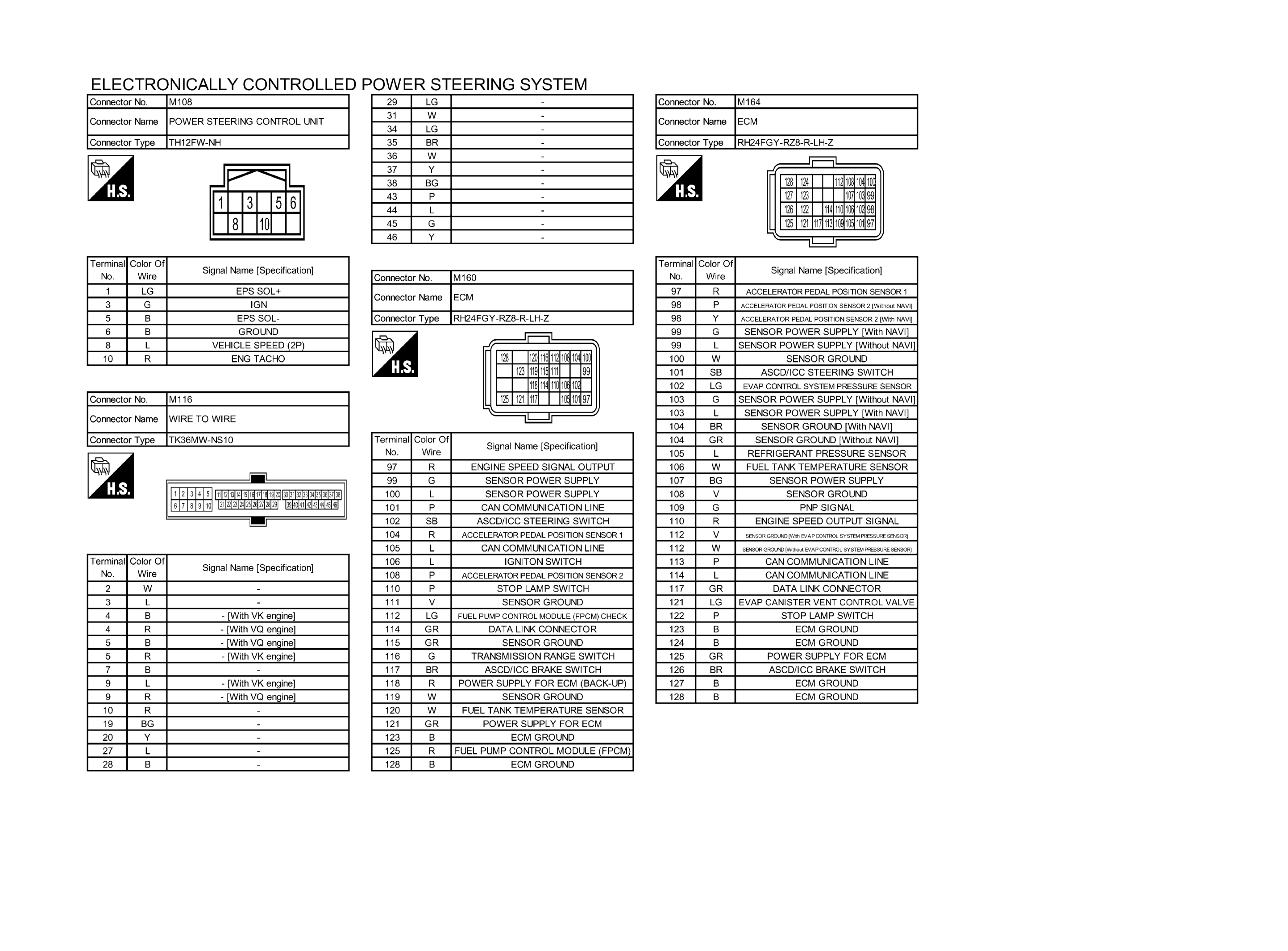

Fig 5: Electronically Controlled Power Steering System Connector End Views (4 Of 4)
GNSJRGWC1261GB-261Courtesy of NISSAN NORTH AMERICA, INC.
