Wiring Diagram - Vehicle Security System

Fig 1: Vehicle Security System Wiring Diagram
GNSJRKWD4767GB-767Courtesy of NISSAN NORTH AMERICA, INC.

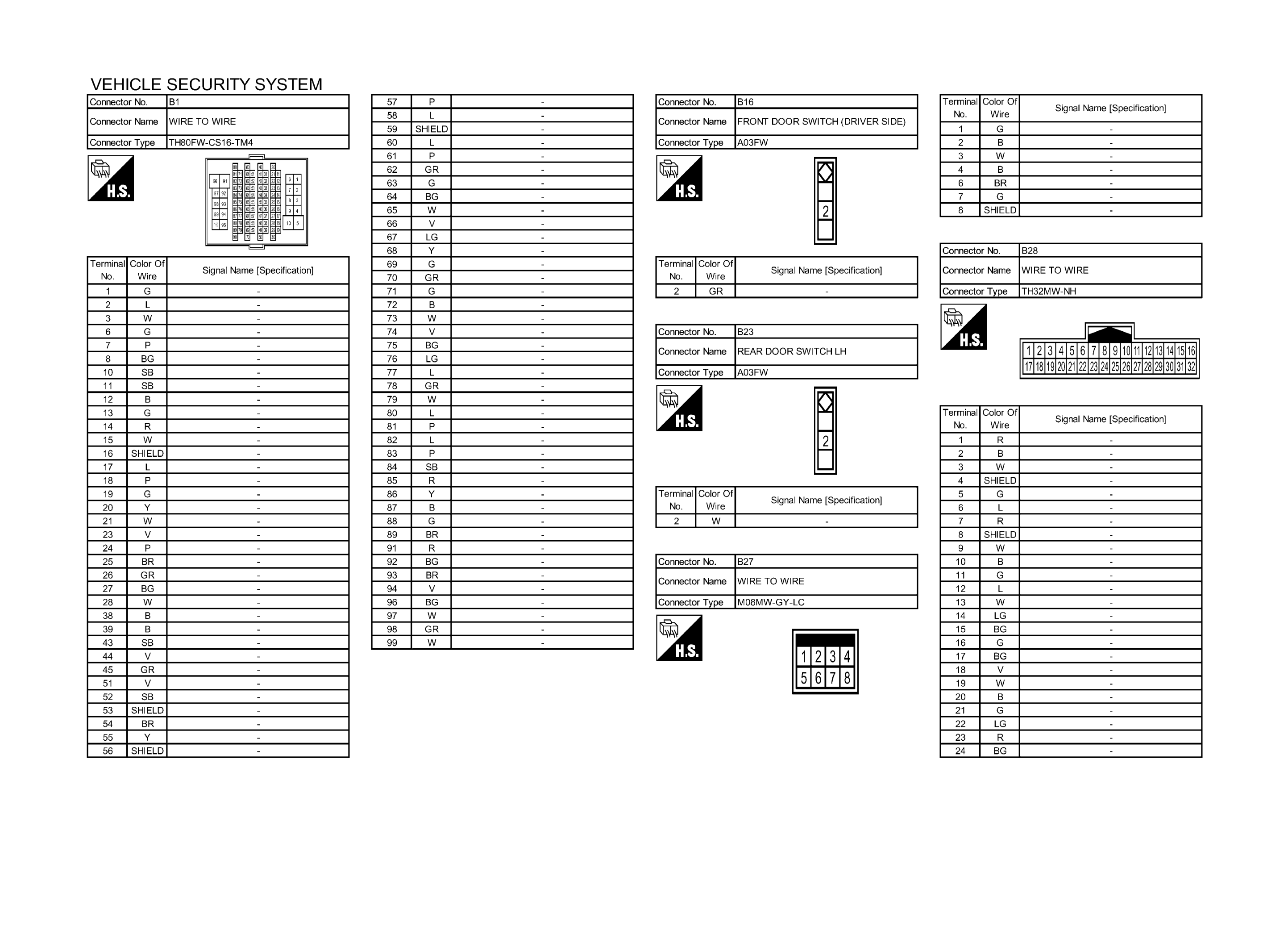

Fig 2: Vehicle Security System Connector End Views (1 Of 9)
GNSJRKWD4768GB-768Courtesy of NISSAN NORTH AMERICA, INC.

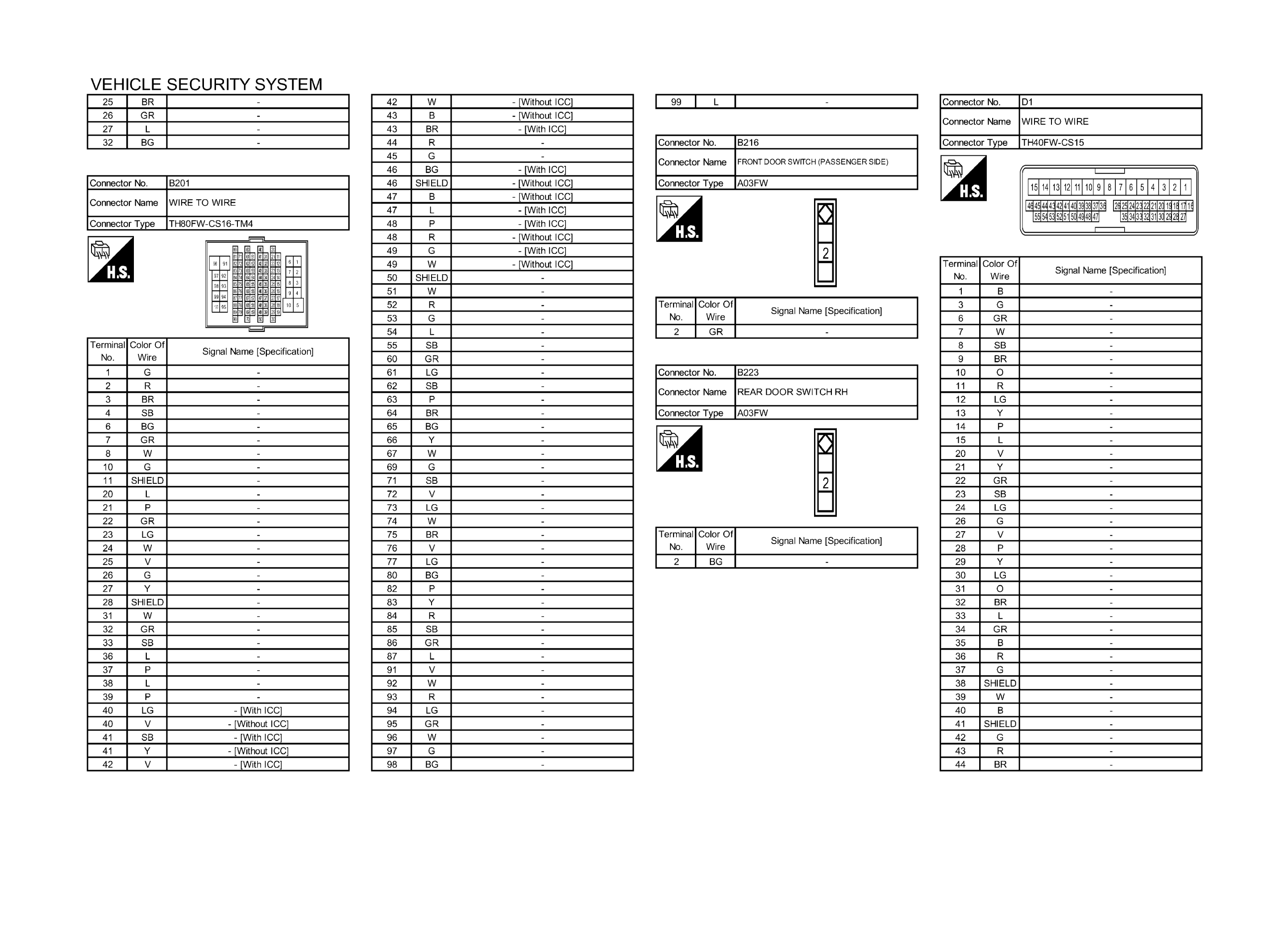

Fig 3: Vehicle Security System Connector End Views (2 Of 9)
GNSJRKWD4769GB-769Courtesy of NISSAN NORTH AMERICA, INC.

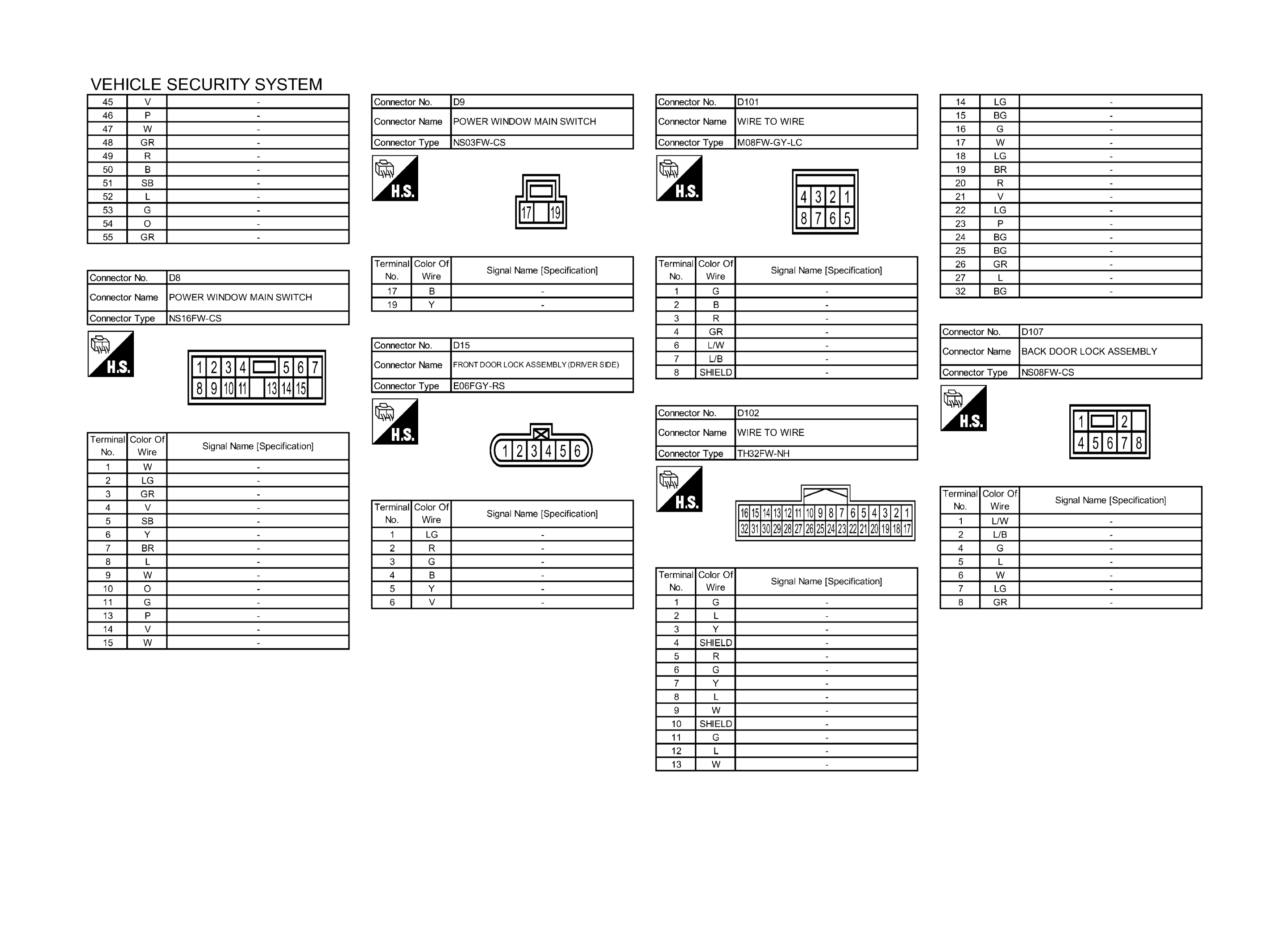

Fig 4: Vehicle Security System Connector End Views (3 Of 9)
GNSJRKWD4770GB-770Courtesy of NISSAN NORTH AMERICA, INC.

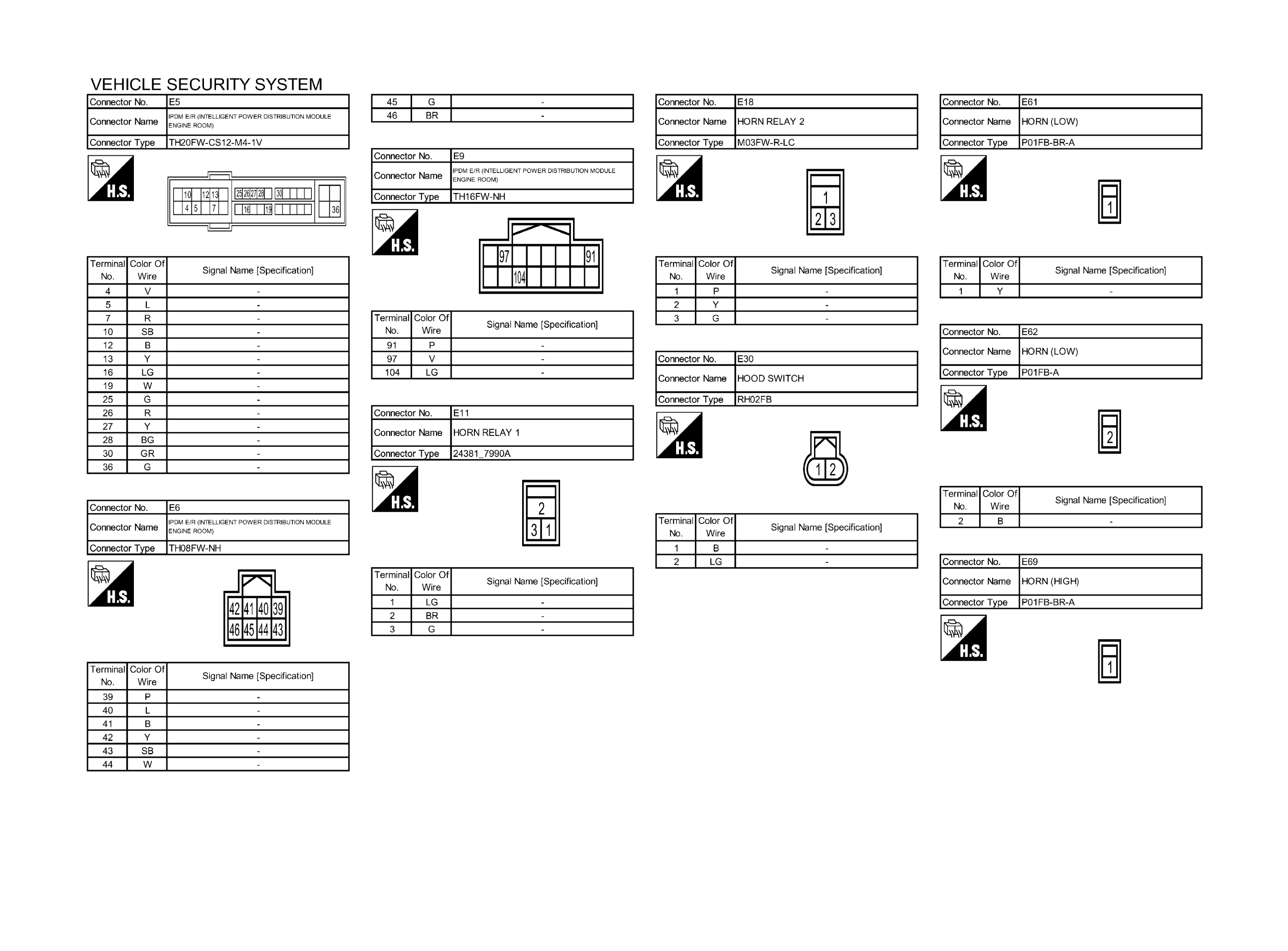

Fig 5: Vehicle Security System Connector End Views (4 Of 9)
GNSJRKWD4771GB-771Courtesy of NISSAN NORTH AMERICA, INC.

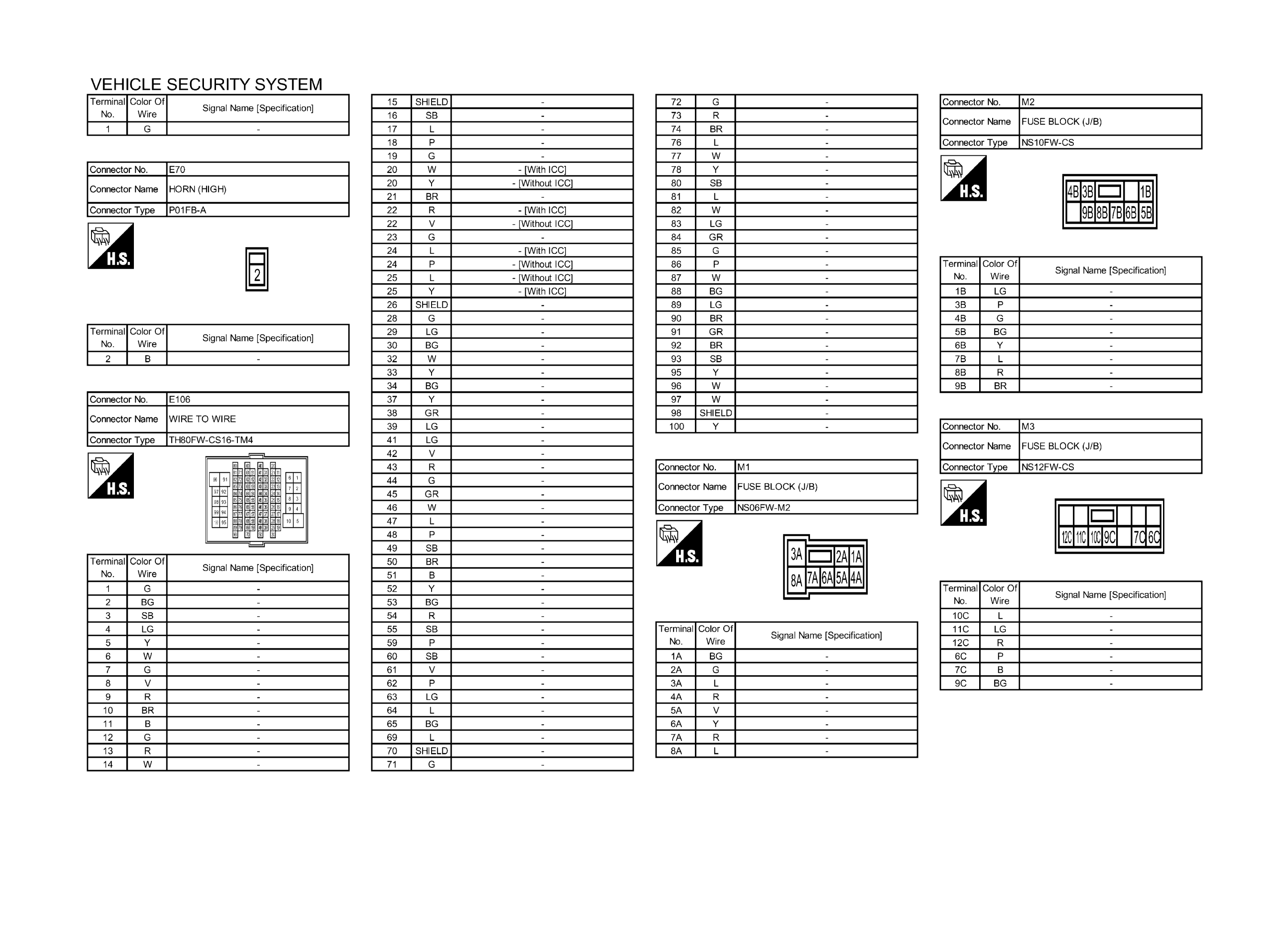

Fig 6: Vehicle Security System Connector End Views (5 Of 9)
GNSJRKWD4772GB-772Courtesy of NISSAN NORTH AMERICA, INC.

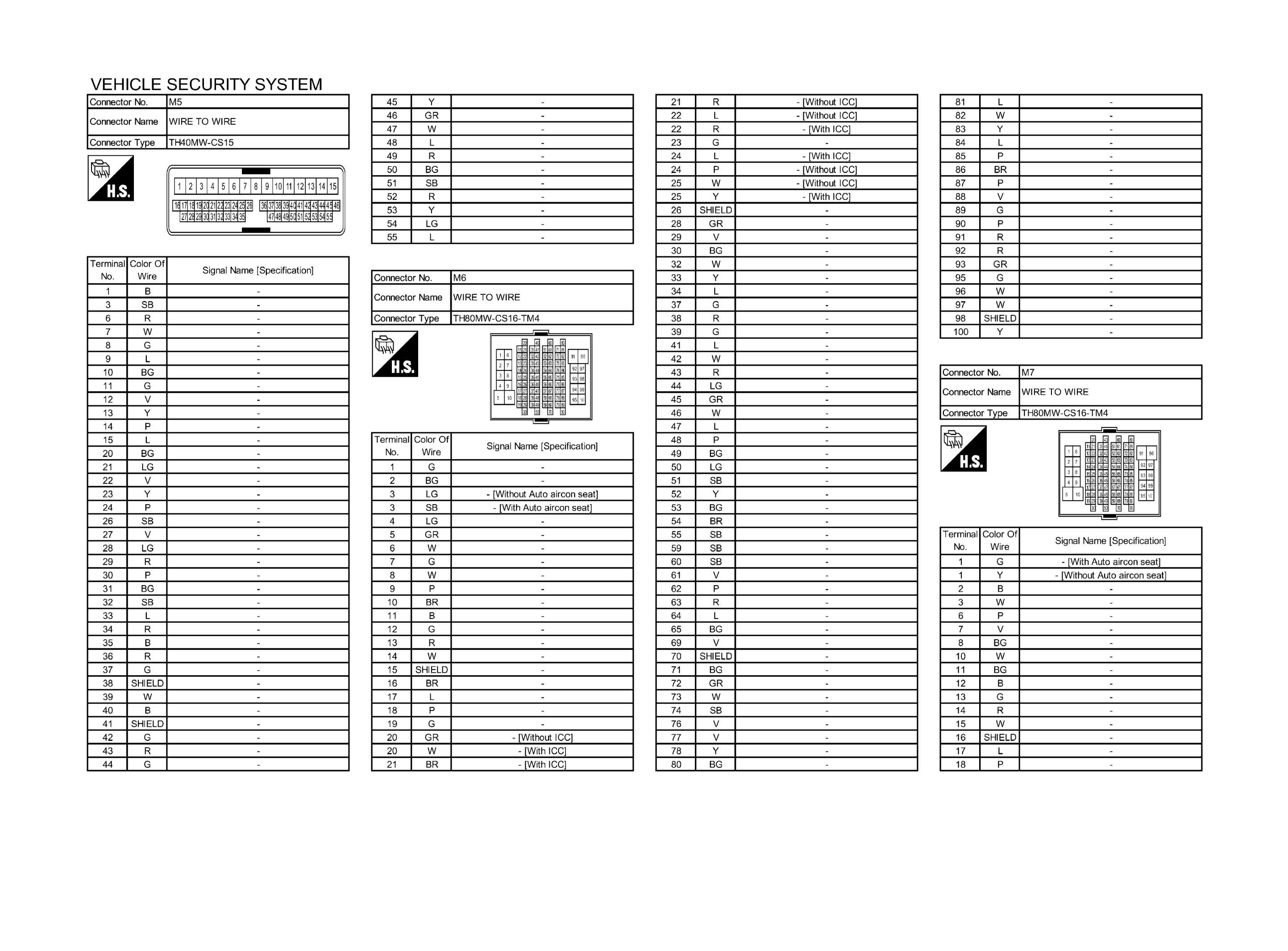

Fig 7: Vehicle Security System Connector End Views (6 Of 9)
GNSJRKWD4773GB-773Courtesy of NISSAN NORTH AMERICA, INC.

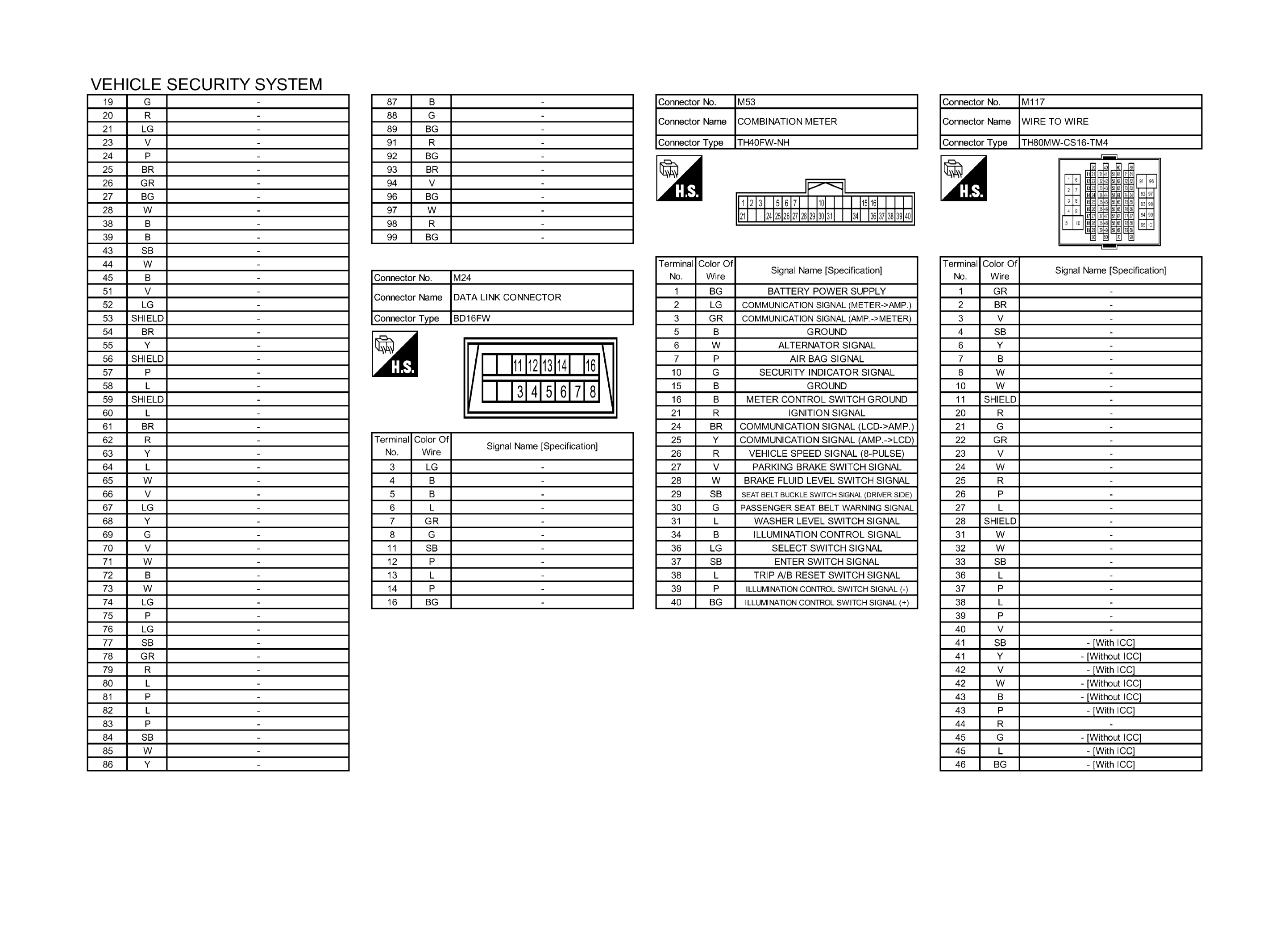

Fig 8: Vehicle Security System Connector End Views (7 Of 9)
GNSJRKWD4774GB-774Courtesy of NISSAN NORTH AMERICA, INC.

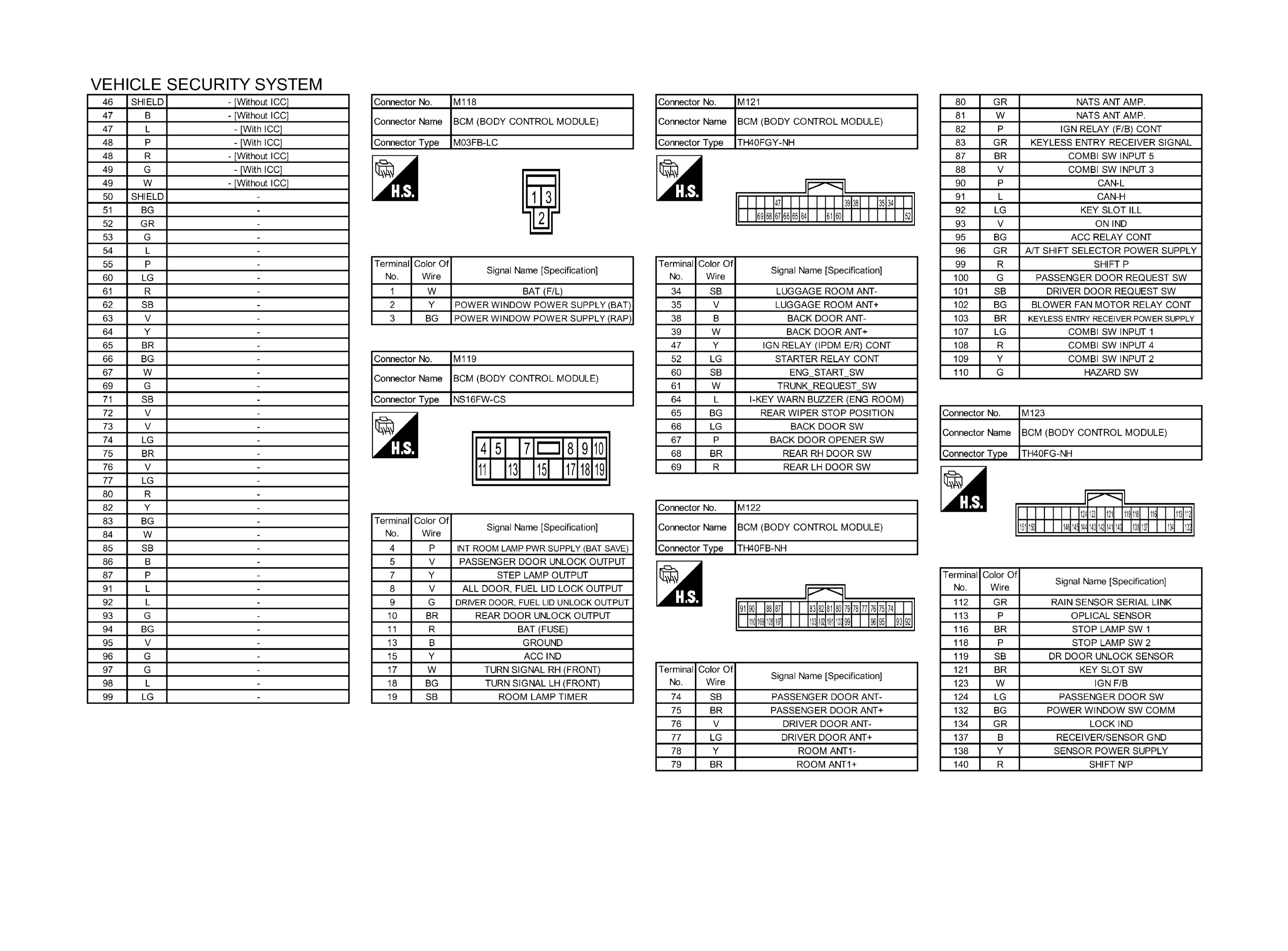

Fig 9: Vehicle Security System Connector End Views (8 Of 9)
GNSJRKWD4775GB-775Courtesy of NISSAN NORTH AMERICA, INC.

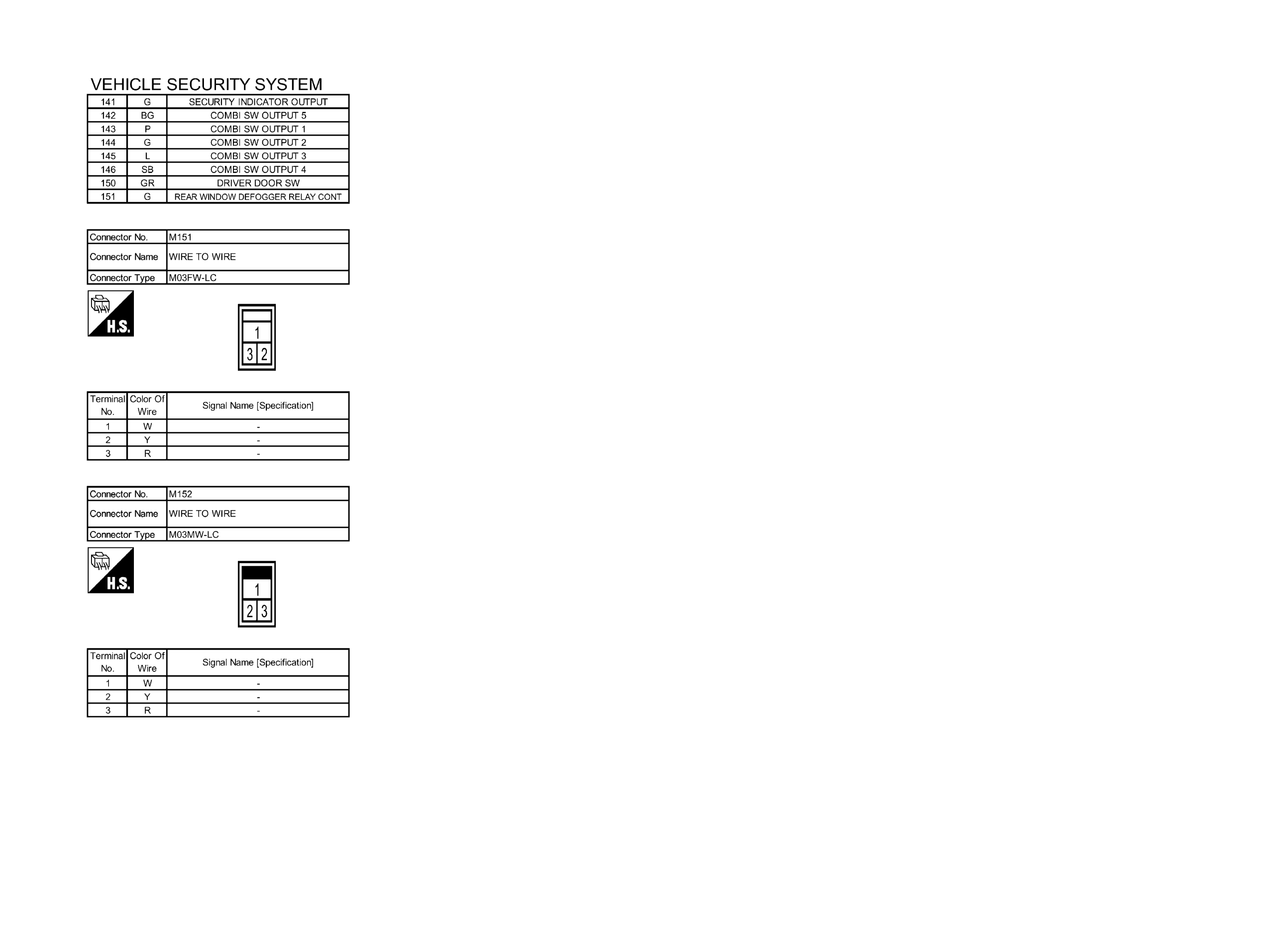

Fig 10: Vehicle Security System Connector End Views (9 Of 9)
GNSJRKWD4776GB-776Courtesy of NISSAN NORTH AMERICA, INC.
