Switch And Display

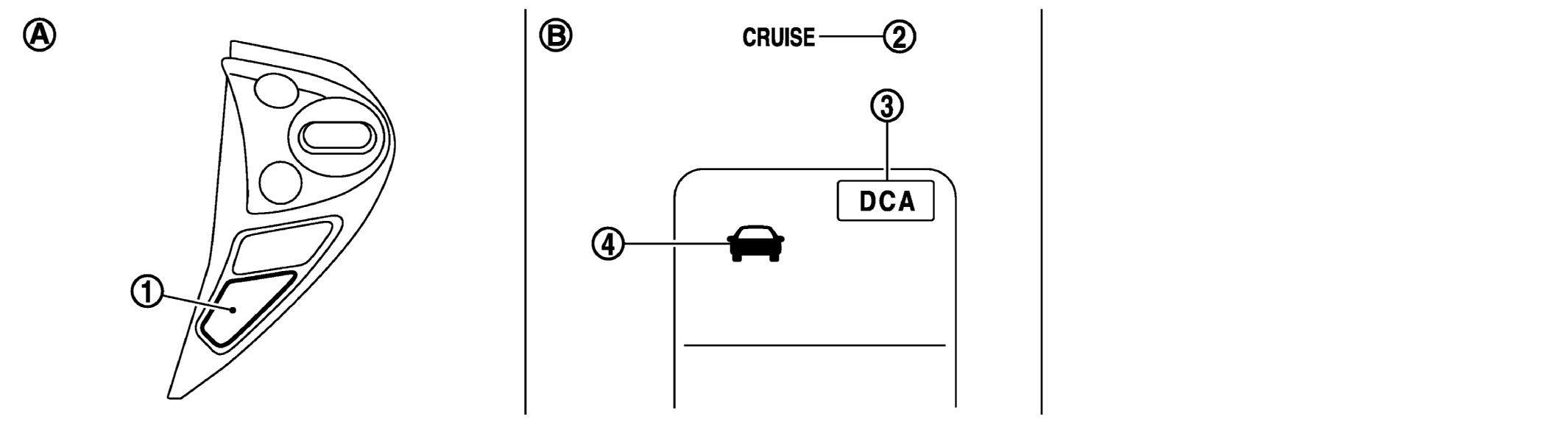

| 1. | Dynamic Driver Assistance Switch | 2. | ICC System Warning Lamp | 3. | DCA System Switch Indicator |
| 4. | Vehicle Ahead Detection Indicator | ||||
| A. | On The ICC Steering Switch | B. | On The Combination Meter |
| No. | Switch Name | Description |
|---|---|---|
| 1 | Dynamic Driver Assistance Switch | Turns the DCA system ON/OFF. (When the setting of the DCA system on the navigation screen is ON.) |
| 2 | ICC System Warning Lamp | This indicates that an abnormal condition is present in the ICC system. |
| 3 | DCA System Switch Indicator | Indicates that the DCA system is ON. |
| 4 | Vehicle Ahead Detection Indicator | Indicates whether it detects a vehicle ahead.
NOTE:
The vehicle ahead detection indicator turns OFF when the no operation condition is satisfied. |
