Led Headlamp Control Module
LED headlamp control module is integrated in the front combination lamp and turns the LED headlamp ON according to the request from IPDM E/R.

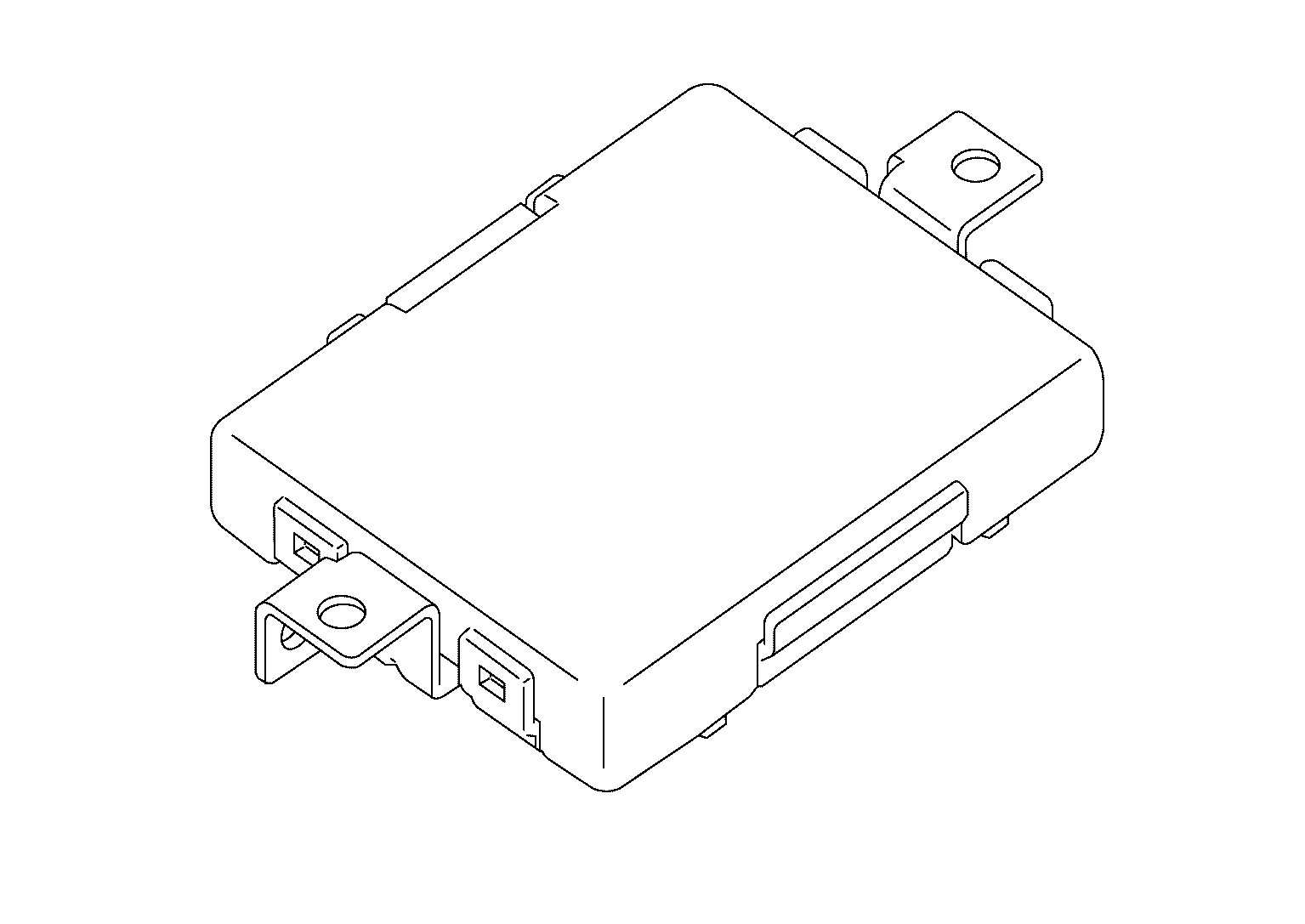

Fig 1: Identifying Front Combination Lamp (LED Headlamp Control Module)
Courtesy of NISSAN NORTH AMERICA, INC.
Outputs the headlamp warning signal to the combination meter.
