System Display

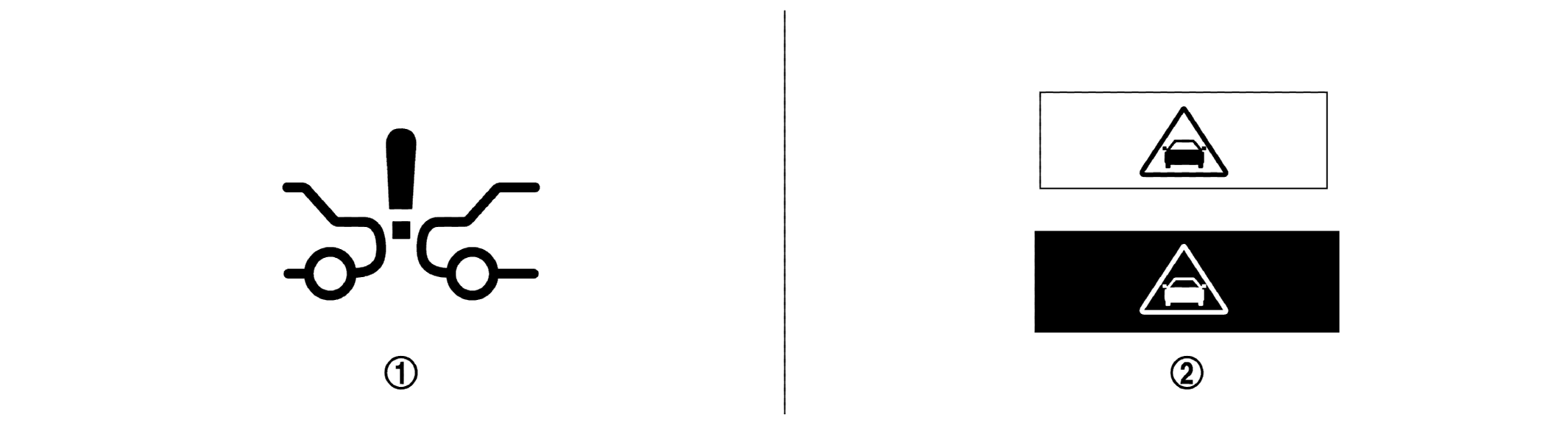

Fig 1: Brake Control System (Forward Emergency Braking) System Display
GNSJSOIA1734ZZ-734WHITE-1WHITE-2Courtesy of NISSAN NORTH AMERICA, INC.
No. Switch name Description
WHITE-1 FEB warning lamp
  • FEB warning lamp indicates that an abnormal condition is present in FEB system
  • When the FEB system turns OFF, the FEB warning lamp will illuminate.
WHITE-2 FEB warning Displays immediately before the harder brake operates
