Exploded View With Torque Specifications

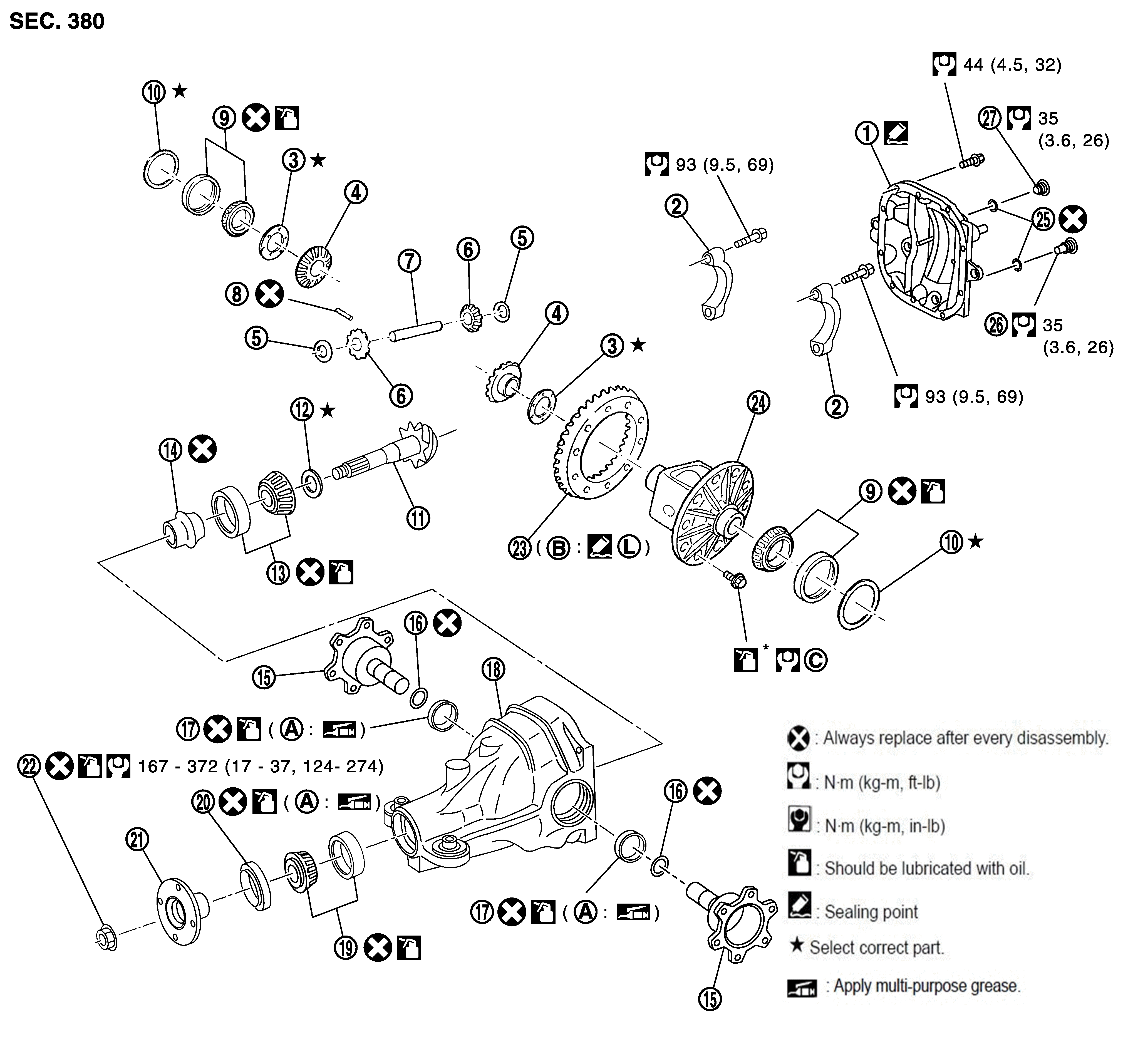

Fig 1: Exploded View Of Rear Differential Assembly With Torque Specifications
GNSJPDID0397GB-397Courtesy of NISSAN NORTH AMERICA, INC.
1. Rear cover 2. Bearing cap 3. Side gear thrust washer
4. Side gear 5. Pinion mate thrust washer 6. Pinion mate gear
7. Pinion mate shaft 8. Lock pin 9. Side bearing
10. Side bearing adjusting washer 11. Drive pinion 12. Pinion height adjusting washer
13. Pinion rear bearing 14. Collapsible spacer 15. Side flange
16. Circlip 17. Side oil seal 18. Gear carrier
19. Pinion front bearing 20. Front oil seal 21. Companion flange
22. Drive pinion lock nut 23. Drive gear 24. Differential case
25. Gasket 26. Drain plug 27. Filler plug
A. Oil seal lip B. Screw hole C. Comply with the assembly procedure when tightening. Refer to ASSEMBLY .
OIL : Apply gear oil.
OILASTERISK : Apply anti-corrosion oil.
SEAL : Apply Genuine Silicone RTV or equivalent. Refer to RECOMMENDED CHEMICAL PRODUCTS AND SEALANTS .
SEALMARU-L-W : Apply Genuine High Strength Thread Locking Sealant or equivalent. Refer to RECOMMENDED CHEMICAL PRODUCTS AND SEALANTS .
Refer to COMPONENTS for symbols not described above.
