How To Extended Storage Fuse Switch On/Off

CAUTION:

Turn the ignition switch OFF when operating the extended storage fuse switch.
Under normal conditions, keep the extended storage fuse switch in ON state. Never operate the extended storage fuse switch except when necessary.

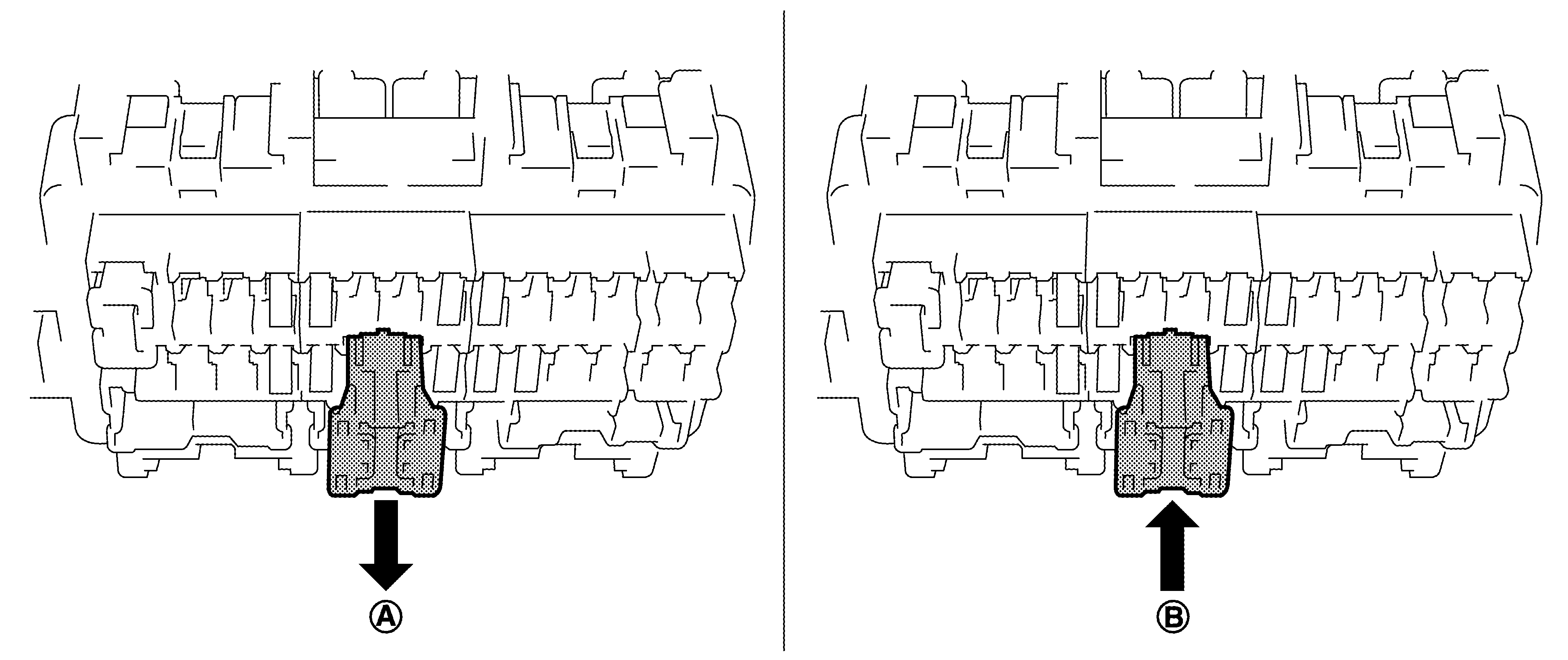

Type A

Fig 1: Directions To Turn ON/OFF Extended Storage Switch (Type A)
Courtesy of NISSAN NORTH AMERICA, INC.
- To turn the extended storage fuse switch OFF, pull it up in (A) direction as shown in the figure.
- To turn the extended storage fuse switch ON, press it in (B) direction as shown in the figure.

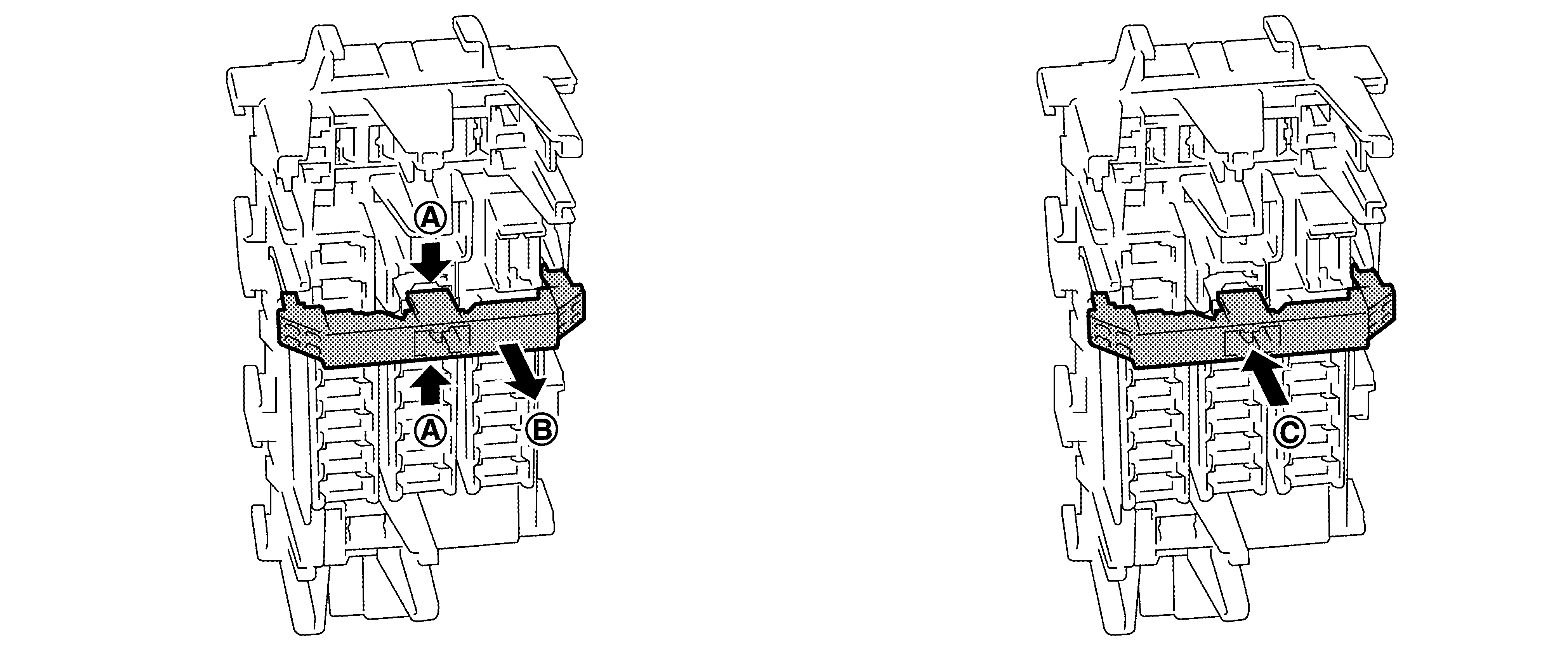

Type B

Fig 2: Directions To Turn ON/OFF Extended Storage Switch (Type B)
Courtesy of NISSAN NORTH AMERICA, INC.
- To turn the extended storage fuse switch OFF, hold (A) of the switch and pull up in (B) direction as shown in the figure.
- To turn the extended storage fuse switch ON, press it in (C) direction as shown in the figure.

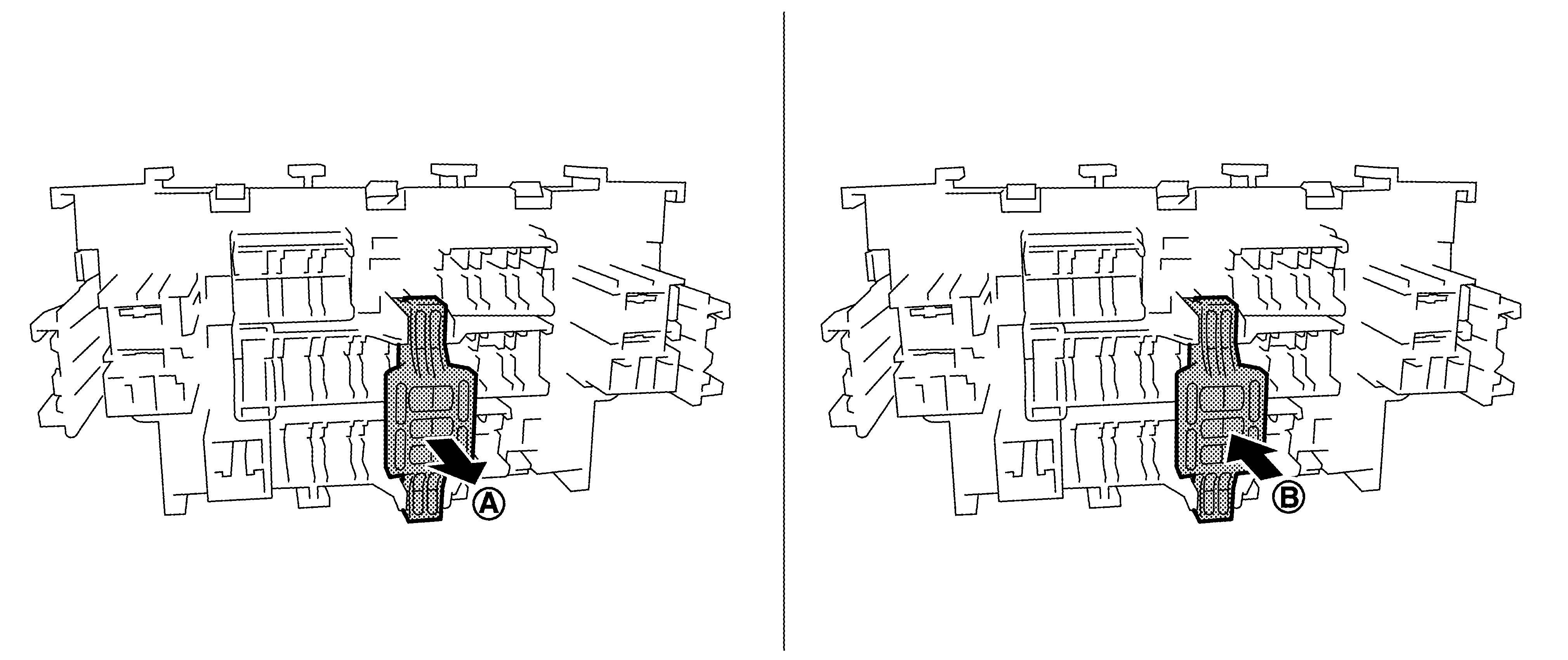

Type C

Fig 3: Directions To Turn ON/OFF Extended Storage Switch (Type C)
Courtesy of NISSAN NORTH AMERICA, INC.
- To turn the extended storage fuse switch OFF, pull it up in (A) direction as shown in the figure.
- To turn the extended storage fuse switch ON, press it in (B) direction as shown in the figure.
