How To Use This Article: Components: Notes

THE LARGE ILLUSTRATIONS are exploded views (see the following) and contain tightening torques, lubrication points, section number of the PARTS CATALOG (e.g. SEC. 440) and other information necessary to perform repairs.
The illustrations should be used in reference to service matters only. When ordering parts, refer to the appropriate PARTS CATALOG .

Components shown in an illustration may be identified by a circled number. When this style of illustration is used, the text description of the components will follow the illustration.

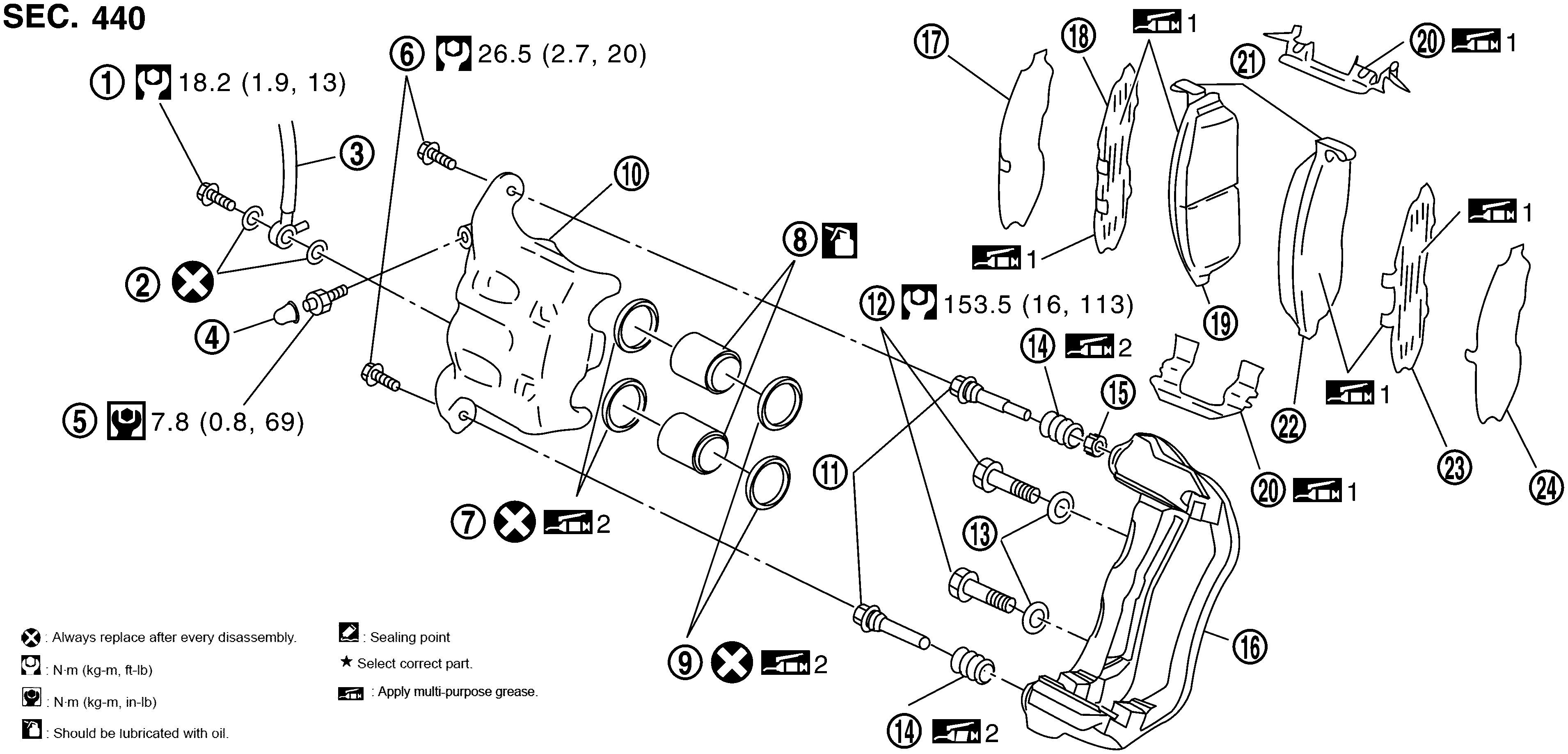

Fig 1: Exploded View Of Components (Example)

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Union bolt	2.	Copper washer	3.	Brake hose
4.	Cap	5.	Bleed valve	6.	Sliding pin bolt
7.	Piston seal	8.	Piston	9.	Piston boot
10.	Cylinder body	11.	Sliding pin	12.	Torque member mounting bolt
13.	Washer	14.	Sliding pin boot	15.	Bushing
16.	Torque member	17.	Inner shim cover	18.	Inner shim
19.	Inner pad	20.	Pad retainer	21.	Pad wear sensor
22.	Outer pad	23.	Outer shim	24.	Outer shim cover
	1: PBC (Poly Butyl Cuprysil) grease or silicone-based grease		2: Rubber grease		: Brake fluid
Refer to the information below for additional symbol definitions.
