Switches And Their Control Function

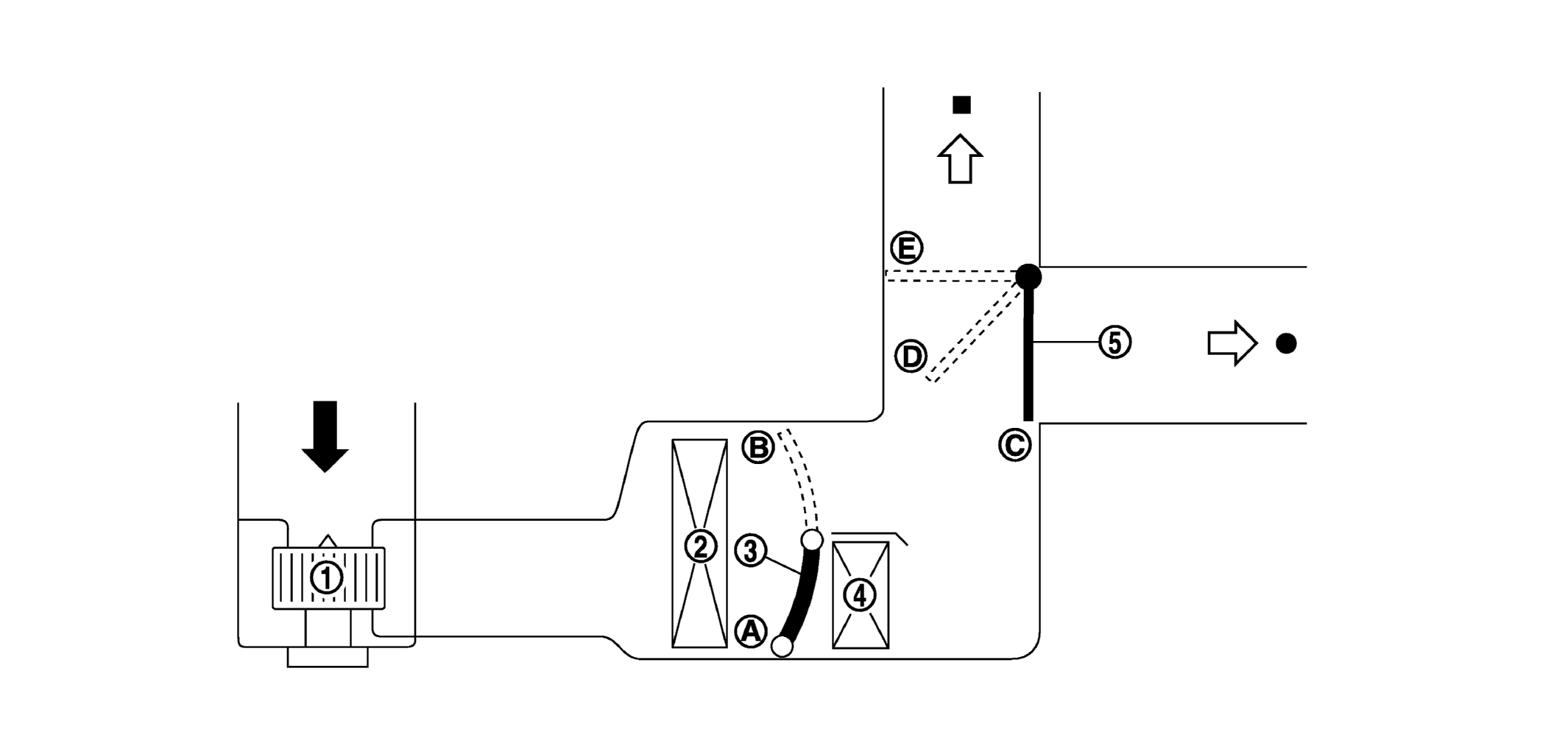

| 1. | Rear blower motor | 2. | Rear evaporator | 3. | Rear air mix door |
| 4. | Rear heater core | 5. | Rear mode door | ||
| Recirculation air | |||||
| Rear ventilator | Rear A/C foot |
| Switch/Dial position | Door position | |||||
|---|---|---|---|---|---|---|
| Rear mode door | Rear air mix door | |||||
| AUTO switch | Front A/C control | AUTO | ||||
| Rear A/C control | ||||||
| MODE switch | VENT | C | - | |||
| B/L | D | - | ||||
| FOOT | E | - | ||||
| Temperature control dial (front A/C control) Temperature control switch (rear A/C control) |
18.0°C (60°F) | - | A | |||
| 18.5°C (61°F) ==> 31.5°C (89°F) | - | AUTO | ||||
| 32.0°C (90°F) | - | B | ||||
| OFF switch | AUTO | - | ||||
