System Diagram

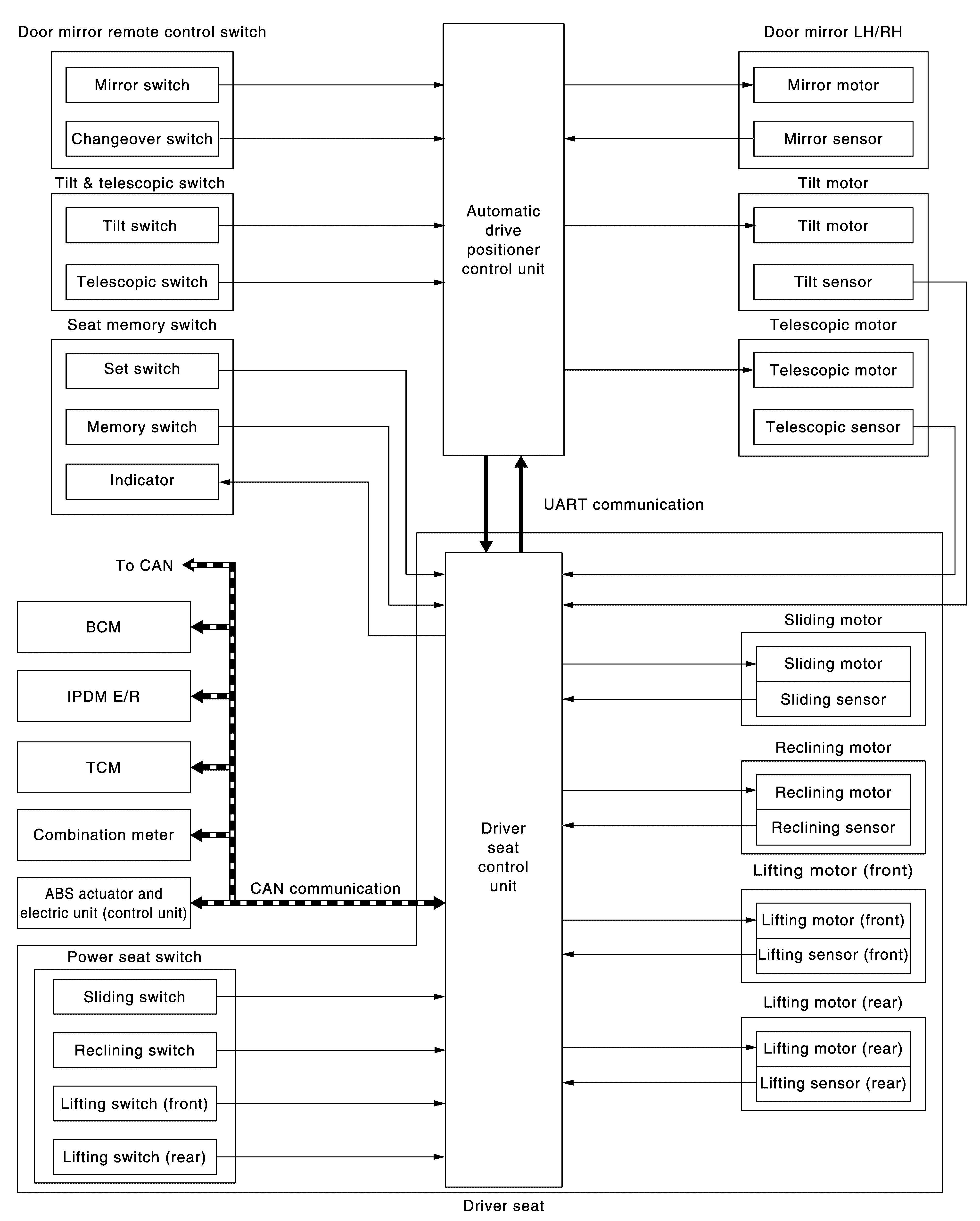

Fig 1: Automatic Drive Positioner System Diagram
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
