Removal And Installation: Removal

  1. Remove the cluster lid A. Refer to REMOVAL AND INSTALLATION .
  2. Disengage the push-button ignition switch fixing pawl and then remove push-button ignition switch.

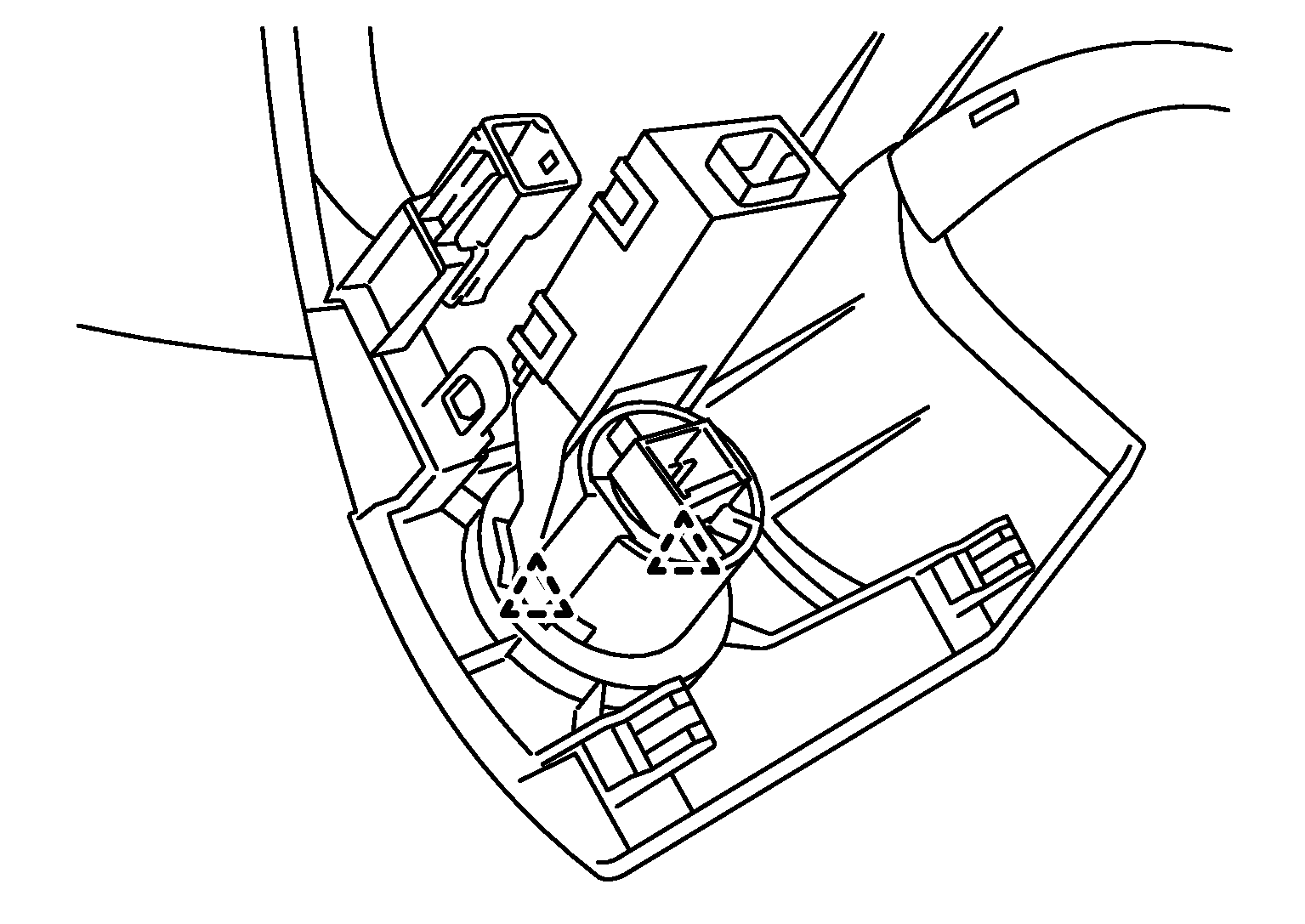

    Fig 1: Identifying Pawls
    GNSJMKIA5306ZZ-306Courtesy of NISSAN NORTH AMERICA, INC.
    SANKAKU-H : Pawl
