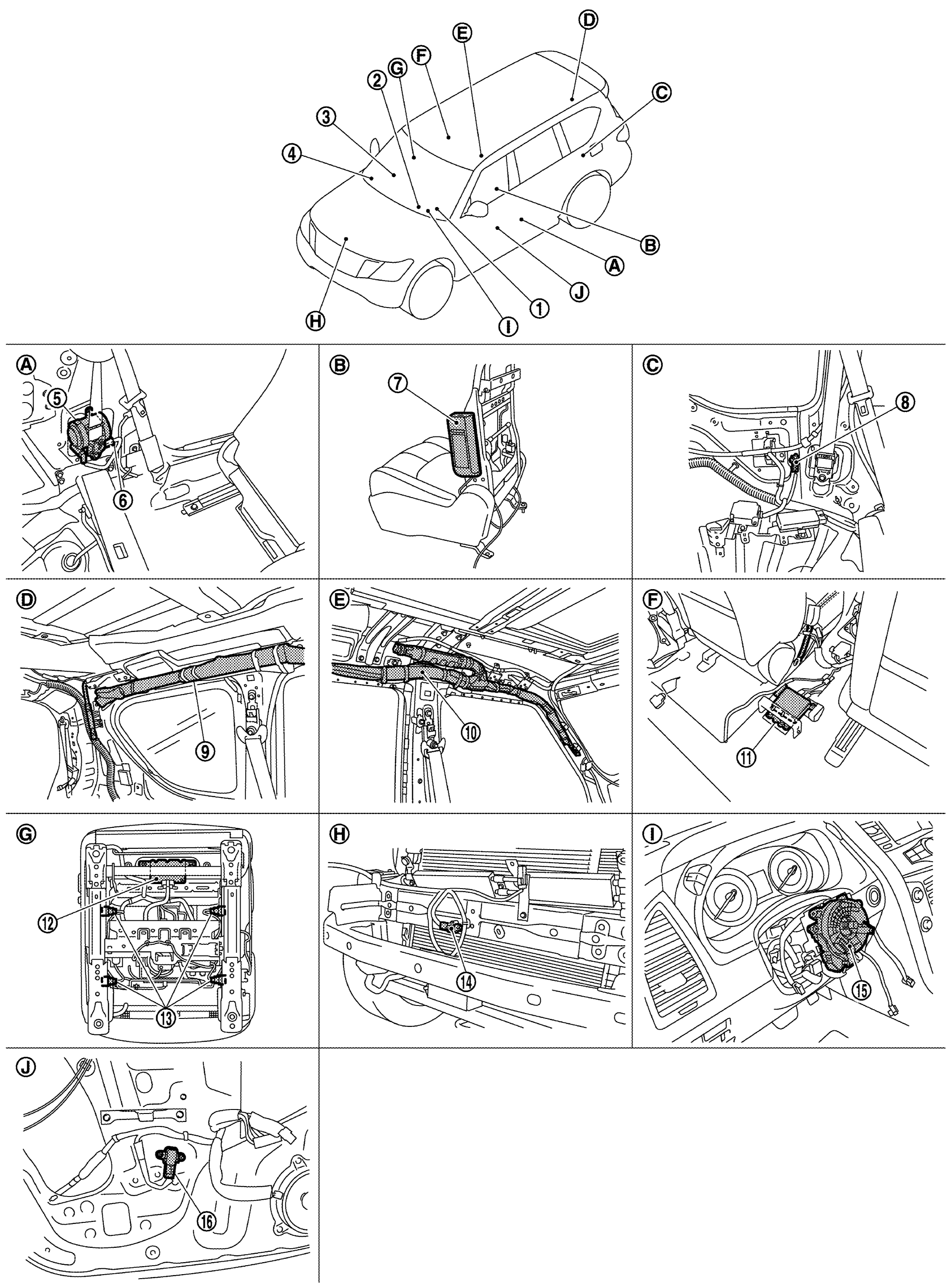

| 1. |
Driver air bag module |
2. |
Combination meter |
3. |
Front passenger air bag OFF indicator |
| 4. |
Passenger air bag module |
5. |
Seat belt pre-tensioner |
6. |
Front satellite sensor |
| 7. |
Side air bag module |
8. |
C - pillar satellite sensor |
9. |
Rear curtain air bag module |
| 10. |
Front curtain air bag module |
11. |
Air bag diagnosis sensor unit |
12. |
Occupant detection system control unit |
| 13. |
Occupant detection system seat sensor |
14. |
Crash zone sensor |
15. |
Combination switch (spiral cable) |
| 16. |
Front door satellite sensor |
|
|
|
|
| A. |
Behind center pillar lower garnish |
B. |
View with seatback pad removed |
C. |
View with luggage side finisher lower removed |
| D. |
View with headlining assembly removed |
E. |
View with headlining assembly removed |
F. |
View with center console assembly removed |
| G. |
Backside of passenger seat cushion frame |
H. |
View with bumper fascia assembly removed |
I. |
View with steering wheel removed |
| J. |
View with door finisher removed |
|
|
|
|
