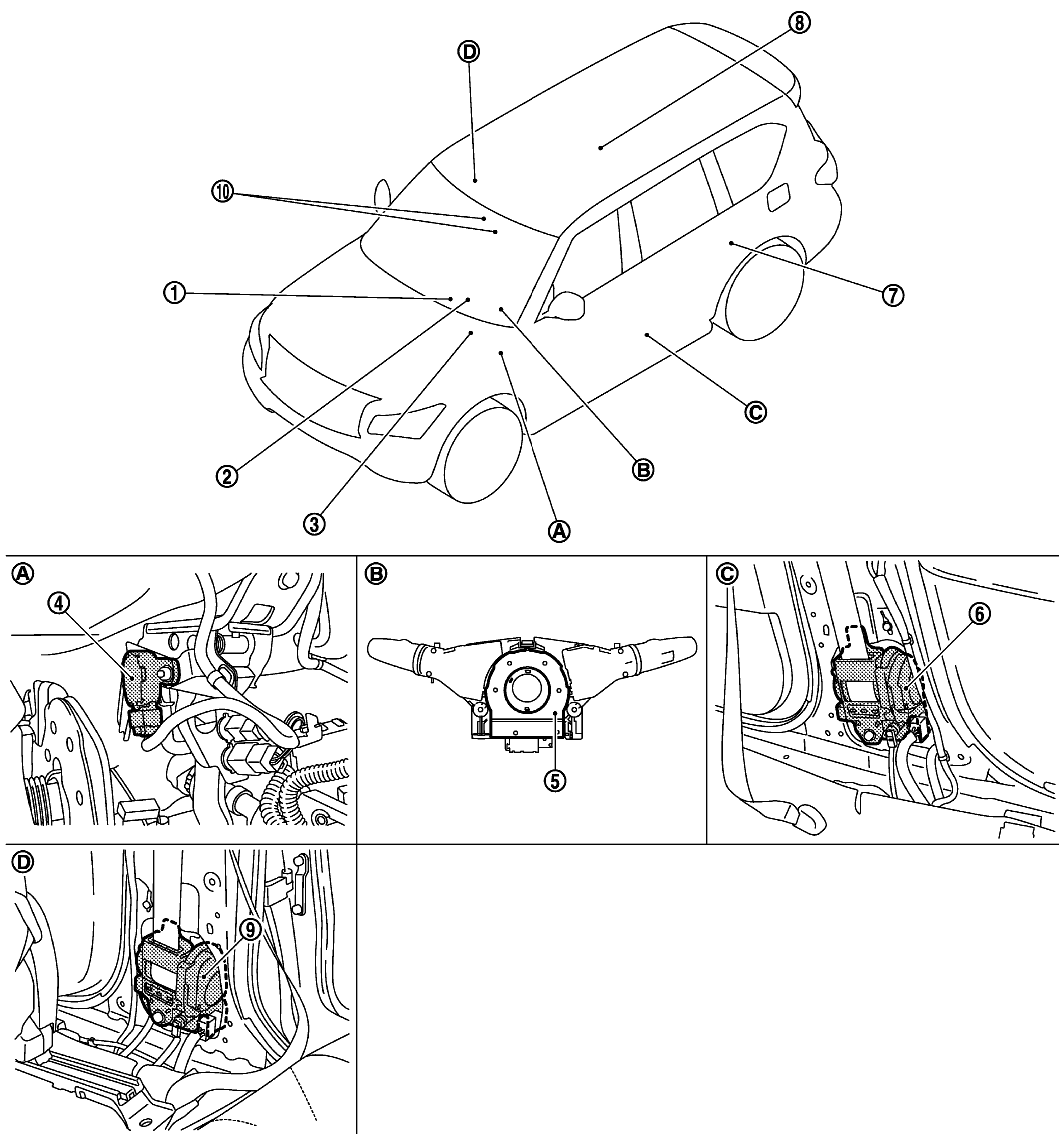

Component Parts Location
| 1. | BCM Refer to COMPONENT PARTS LOCATION . |
2. | Combination meter Refer to COMPONENT PARTS LOCATION . |
3. | ABS actuator and electric unit (control unit) Refer to COMPONENT PARTS LOCATION . |
| 4. | Brake pedal stroke sensor | 5. | Steering angle sensor Pre-crash | 6. | Pre-crash seat belt control unit (driver side) |
| 7. | ADAS control unit Refer to COMPONENT PARTS LOCATION . |
8. | Air bag diagnosis sensor unit Refer to COMPONENT PARTS LOCATION . |
9. | Seat belt control unit (passenger side) |
| 10. | Seat belt buckle switch | ||||
| A. | View with instrument driver lower cover removed | B. | Combination switch | C. | View with center pillar lower garnish removed (driver side) |
| D. | View with center pillar lower garnish removed (passenger side) |
