Exploded View With Torque Specifications

Engine speed sensitive type

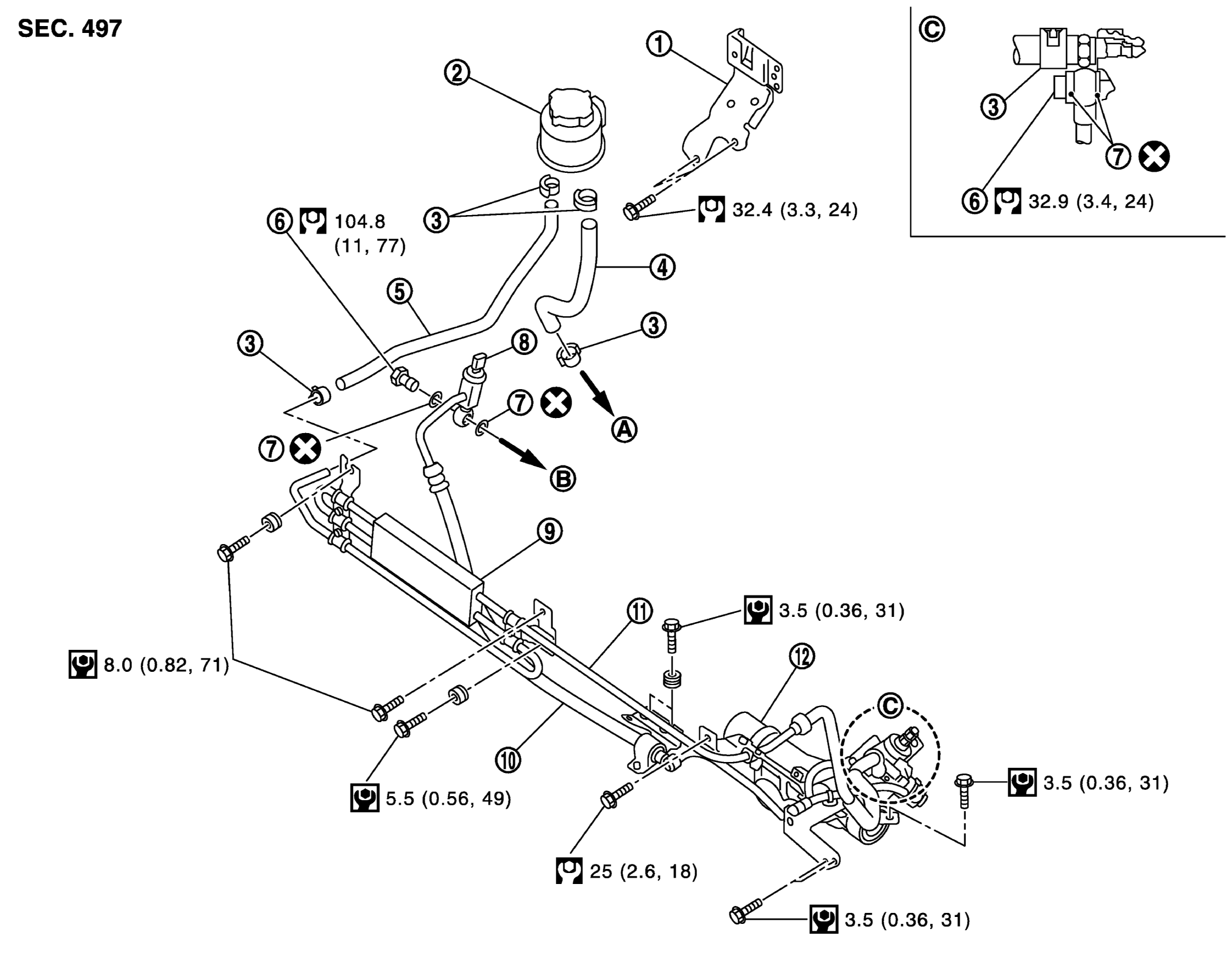

Fig 1: Exploded View Of Power Steering Hydraulic Line With Torque Specifications (Engine Speed Sensitive Type)

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Reservoir tank bracket	2.	Reservoir tank	3.	Clamp
4.	Suction hose	5.	Return hose	6.	Eye bolt
7.	Copper washer	8.	Pressure sensor	9.	Oil cooler
10.	High pressure piping	11.	Low pressure piping	12.	Steering gear assembly
A.	To power steering oil pump suction hose.
B.	To power steering oil pump.
: Always replace after every disassembly.
: N•m (kg - m, ft - lb)
: N•m (kg - m, in - lb)

Vehicle speed sensitive type

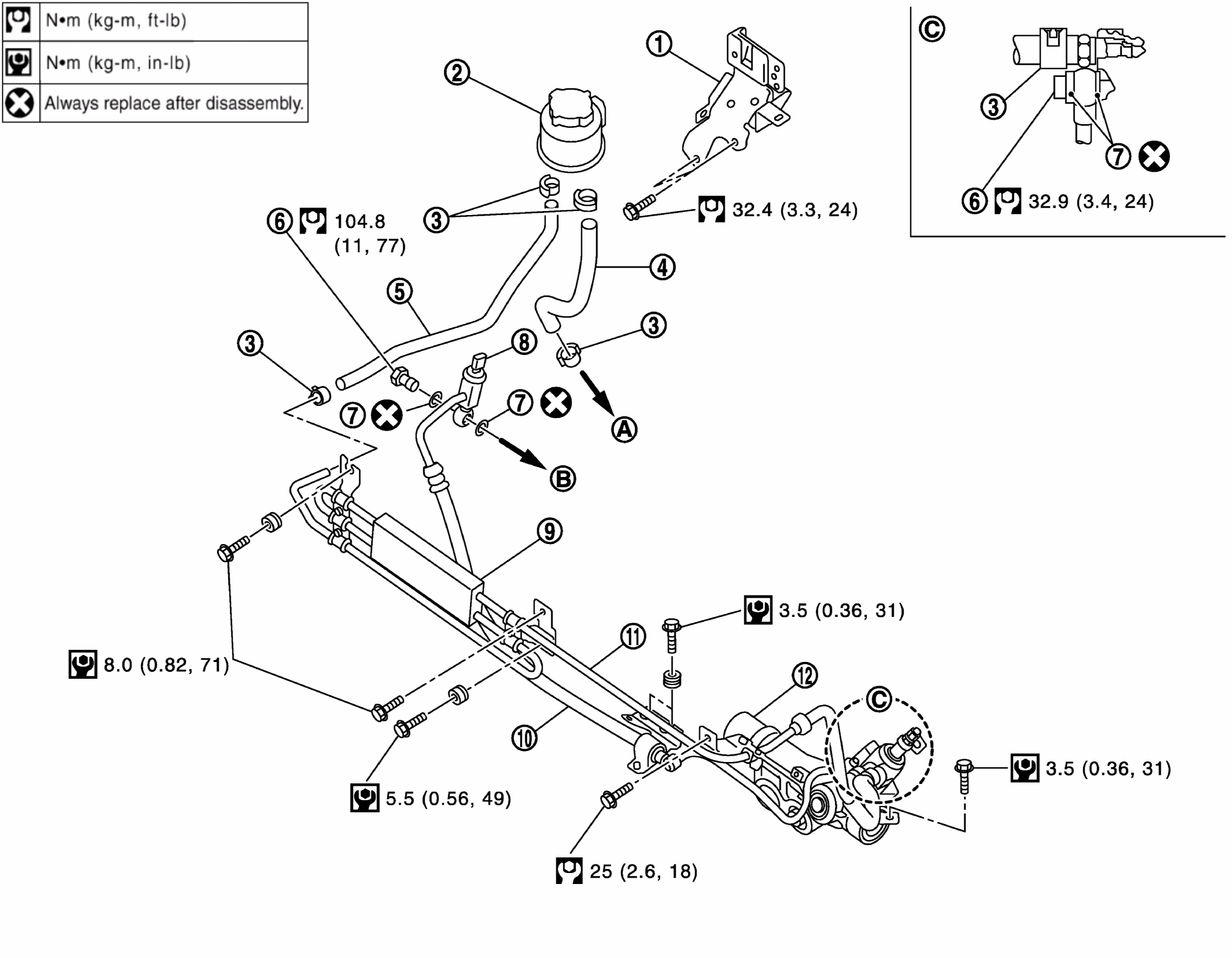

Fig 2: Exploded View Of Power Steering Hydraulic Line With Torque Specifications (Vehicle Speed Sensitive Type)

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Reservoir tank bracket	2.	Reservoir tank	3.	Clamp
4.	Suction hose	5.	Return hose	6.	Eye bolt
7.	Copper washer	8.	Pressure sensor	9.	Oil cooler
10.	High pressure piping	11.	Low pressure piping	12.	Steering gear assembly
A.	To power steering oil pump suction hose.
B.	To power steering oil pump.
: Always replace after every disassembly.
: N•m (kg - m, ft - lb)
: N•m (kg - m, in - lb)
