Exploded View With Torque Specifications

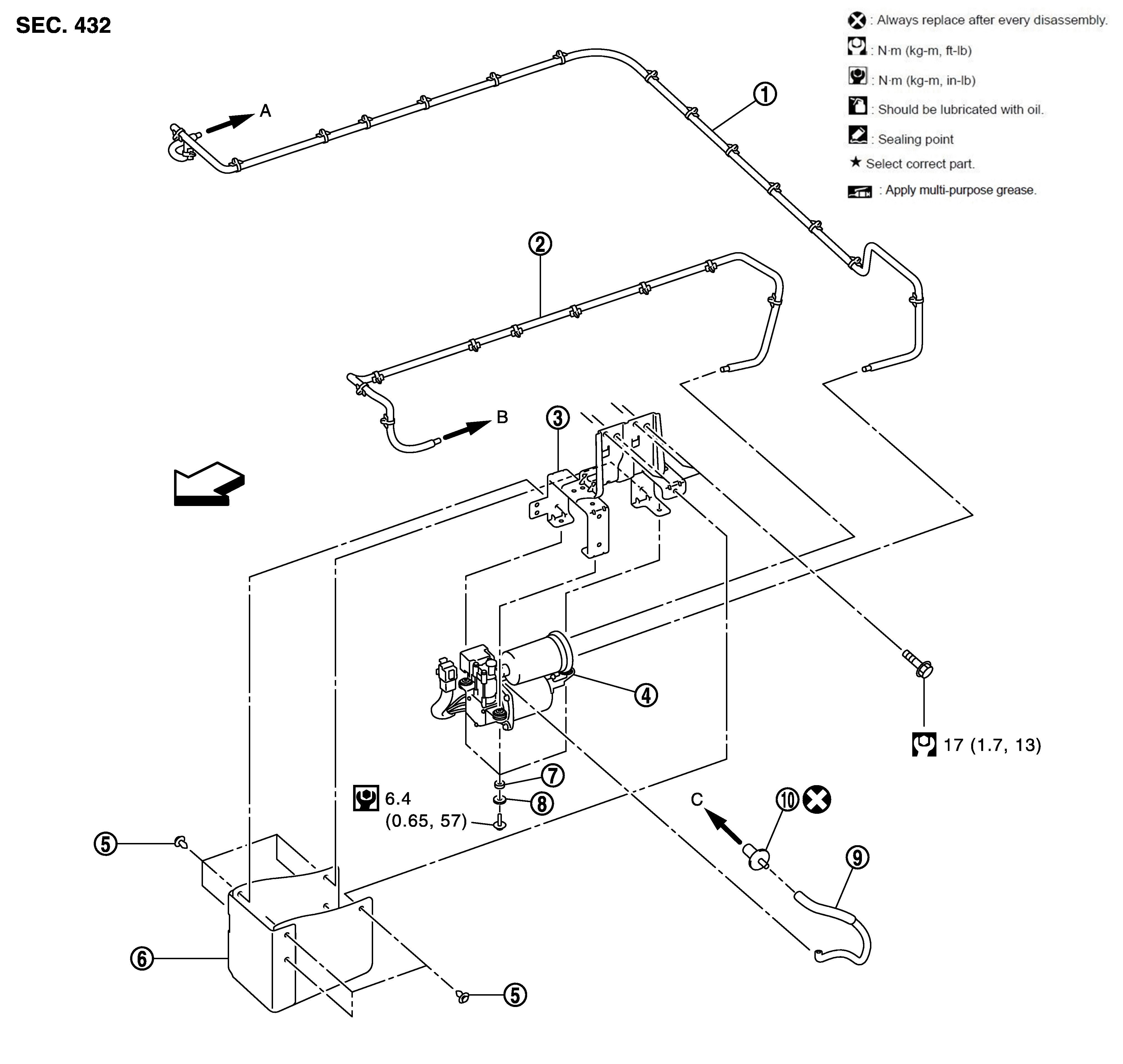

Fig 1: Exploded View Of Air Compressor & Air Tube With Torque Specifications

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Air tube A	2.	Air tube B	3.	Bracket
4.	Air compressor	5.	Clip	6.	Cover
7.	Insulator	8.	Washer	9.	Exhaust tube
10.	Exhaust tube connector
A.	To rear shock absorber (RH)	B.	To rear shock absorber (LH)	C.	To frame
:	Vehicle front
: Always replace after every disassembly.
: N•m (kg - m, ft - lb)
: N•m (kg - m, in - lb)
