Exploded View With Torque Specifications

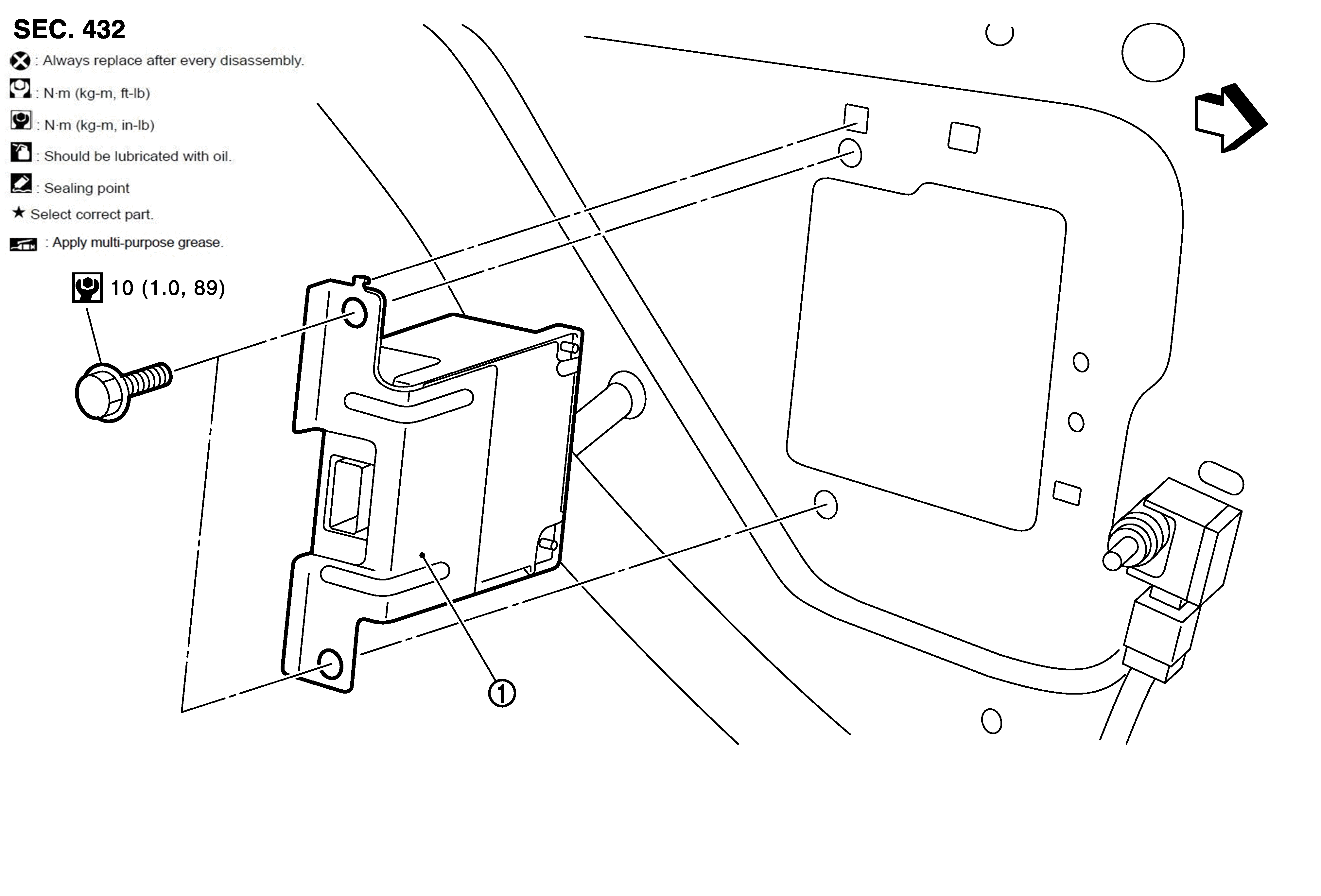

Fig 1: Exploded View Of Air Levelizer Control Module With Torque Specifications
GNSJSEIA0237GB-237Courtesy of NISSAN NORTH AMERICA, INC.
1. Air levelizer control module
ARROW : Vehicle front
BOLTIN : N•m (kg - m, in - lb)
