Exploded View With Torque Specifications

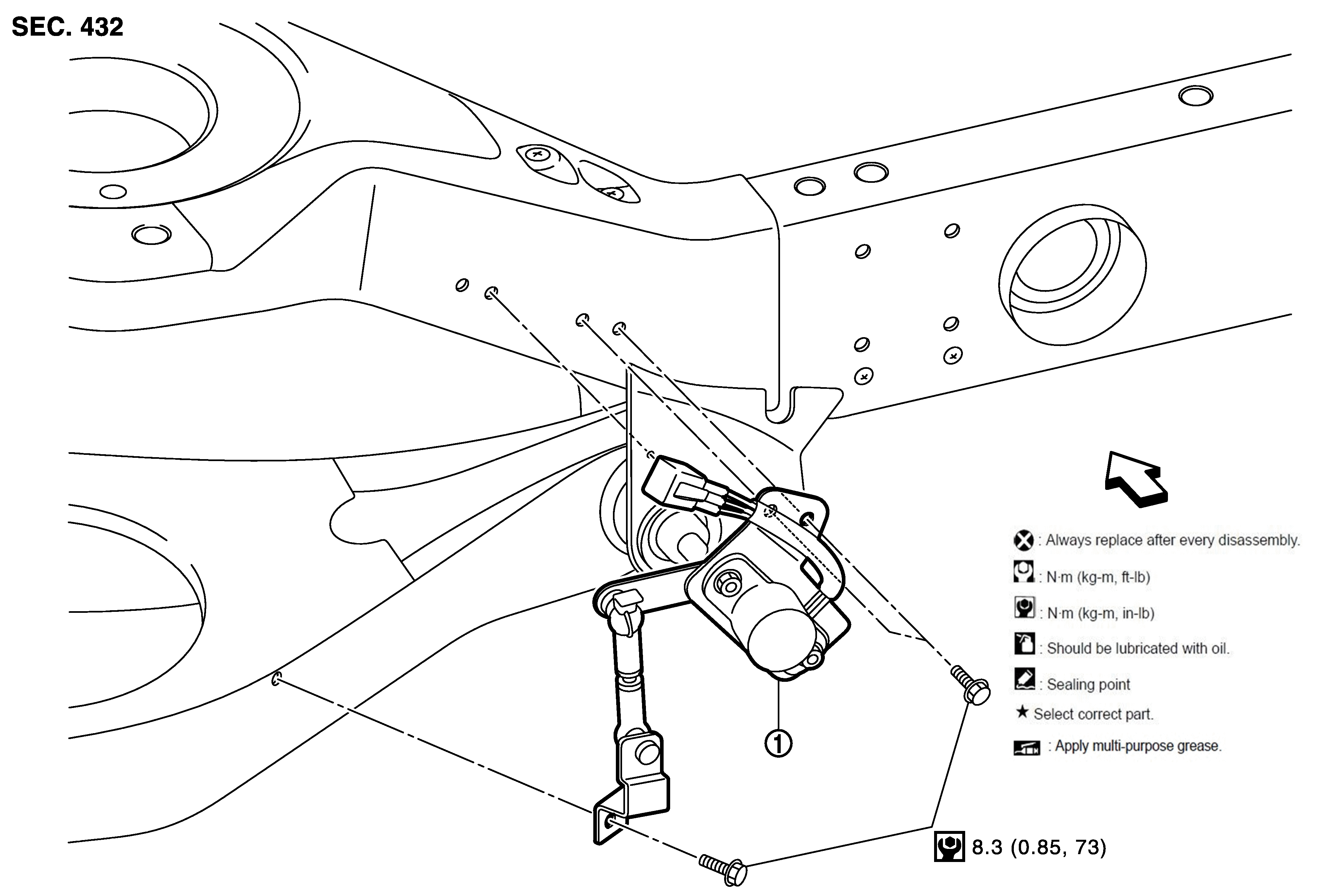

Fig 1: Exploded View Of Vehicle Height Sensor With Torque Specifications
GNSJSEIA0226GB-226Courtesy of NISSAN NORTH AMERICA, INC.
1. Vehicle height sensor
ARROW : Vehicle front
BOLTIN : N•m (kg - m, in - lb)
