Exploded View With Torque Specifications

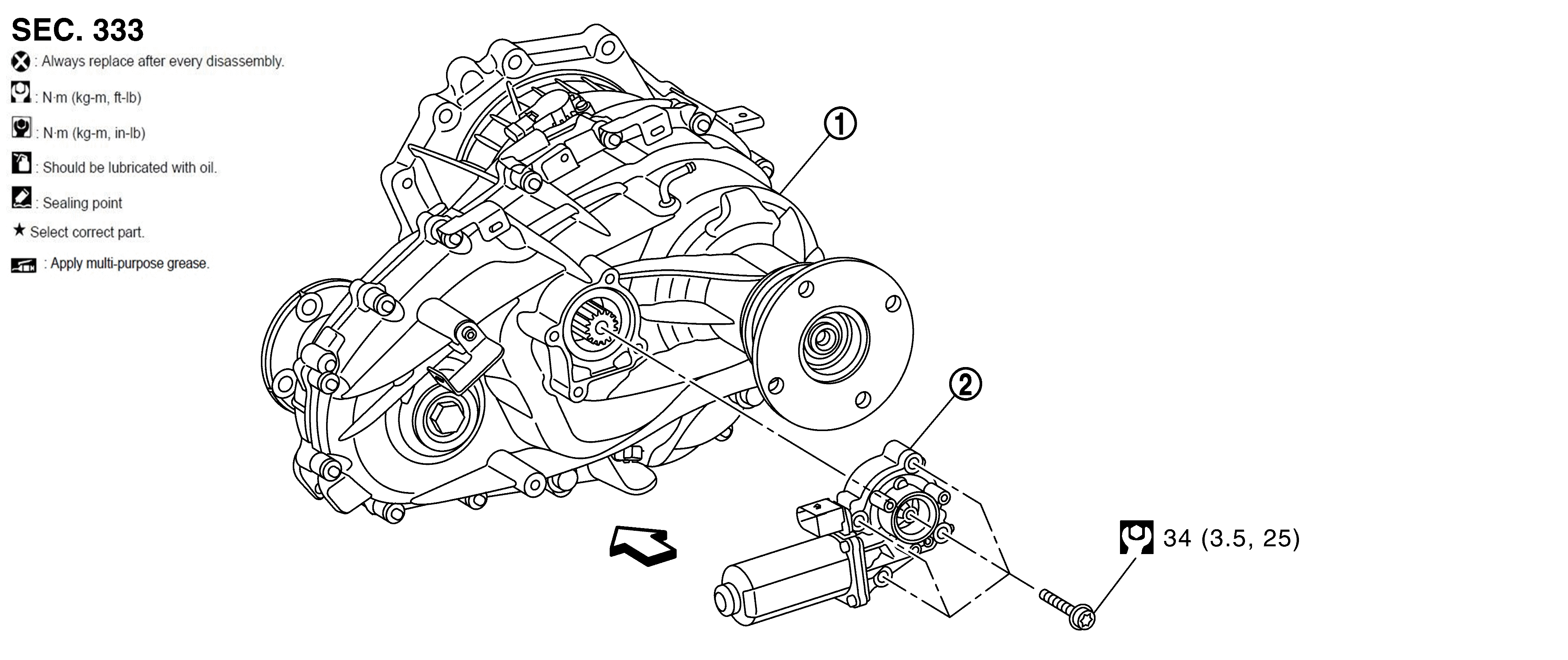

Fig 1: Exploded View Of Transfer Control Actuator With Torque Specifications
GNSJSDIA3813GB-813Courtesy of NISSAN NORTH AMERICA, INC.
1. Transfer assembly 2. Transfer control actuator
ARROW : Vehicle front
Refer to COMPONENTS for symbols not described above.
