Exploded View With Torque Specifications

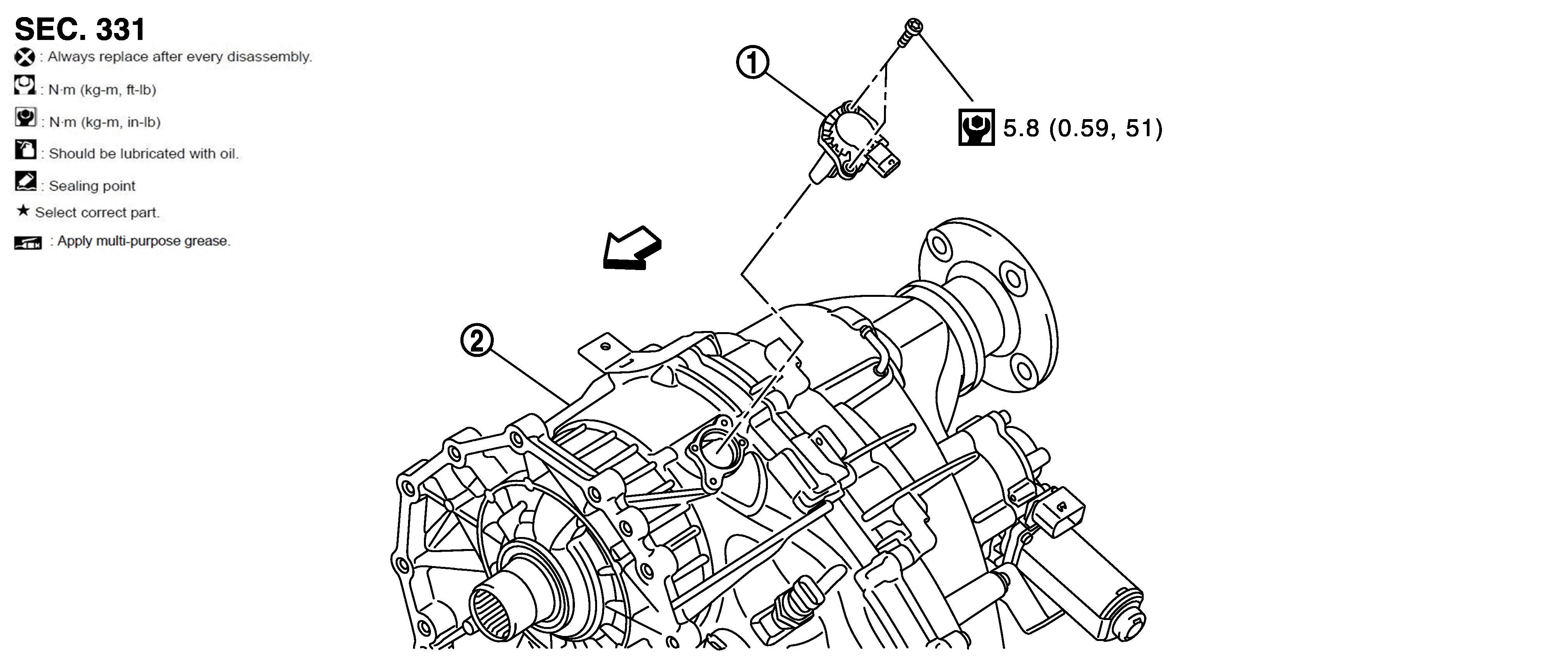

Fig 1: Exploded View Of Transfer Lock Position Sensor With Torque Specifications
GNSJPDIE0284GB-284ARROWCourtesy of NISSAN NORTH AMERICA, INC.
1. Transfer lock position sensor 2. Transfer assembly
ARROW : Vehicle front
Refer to COMPONENTS for symbols not described above.
