Exploded View With Torque Specifications

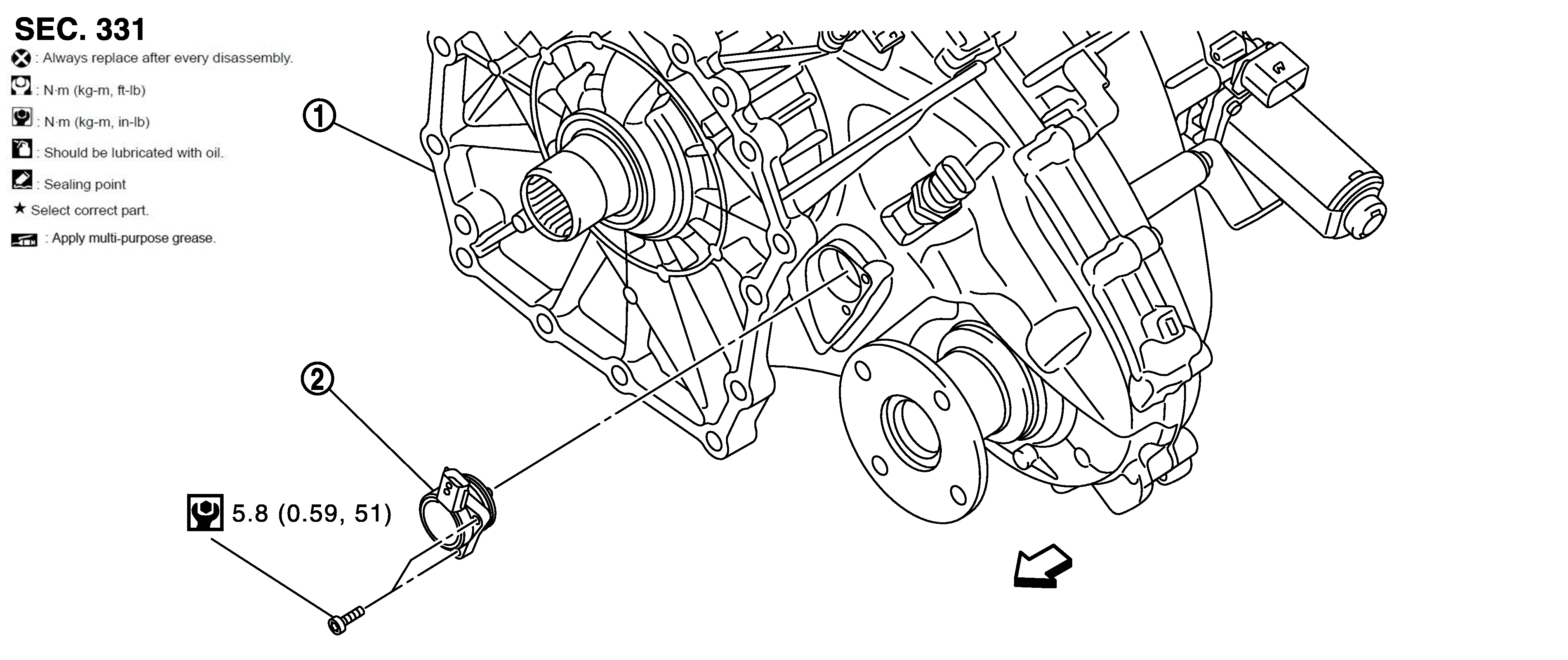

Fig 1: Exploded View Of Transfer Rotary Position Sensor With Torque Specifications
GNSJPDIE0283GB-283ARROWCourtesy of NISSAN NORTH AMERICA, INC.
1. Transfer assembly 2. Transfer rotary position sensor
ARROW : Vehicle front
Refer to COMPONENTS for symbols not described above.
