Torque Distribution Diagram

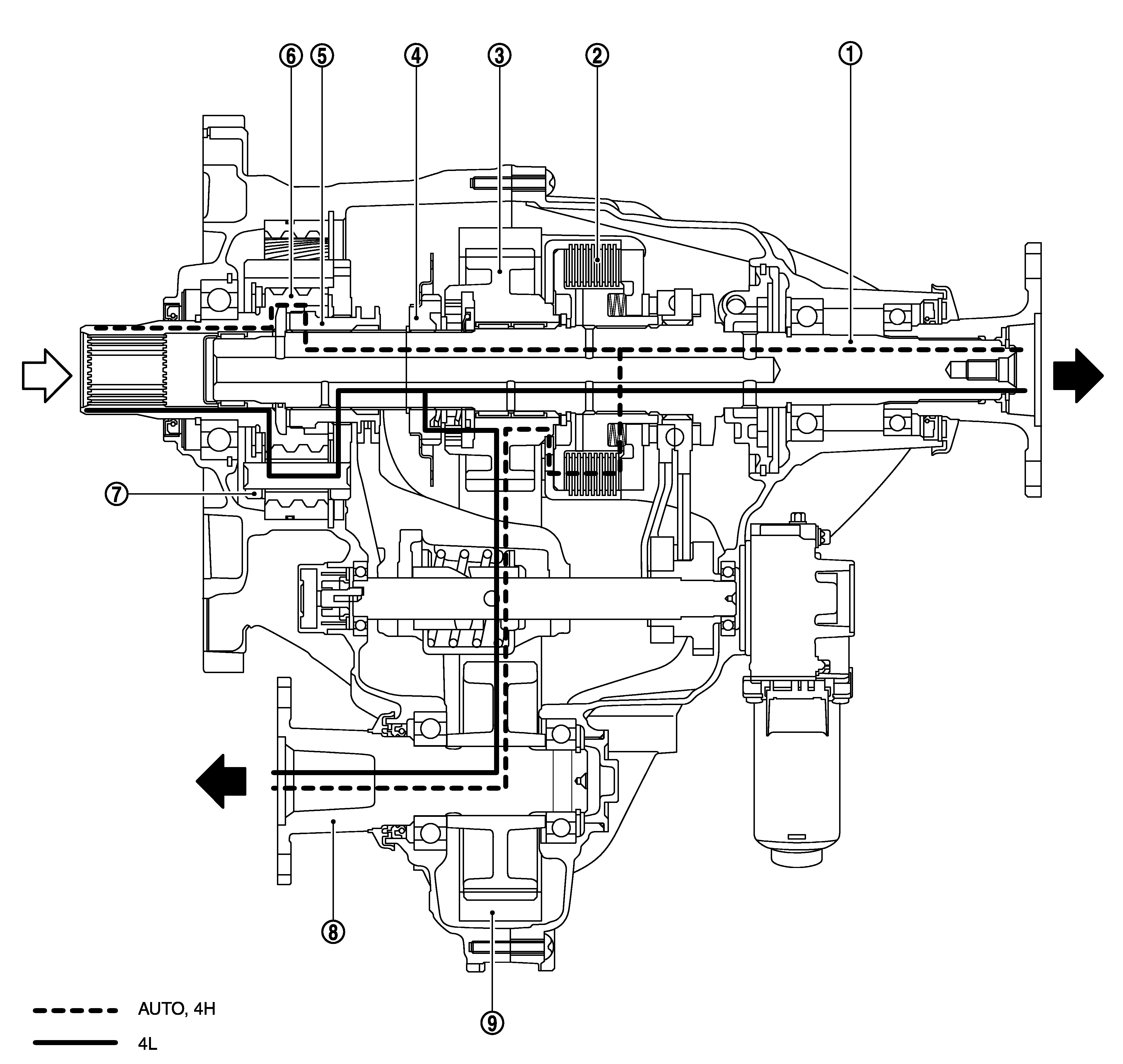

Fig 1: Torque Split Mechanism Torque Distribution Diagram
GNSJPDIE0271GB-271Courtesy of NISSAN NORTH AMERICA, INC.
1. Main shaft 2. Clutch 3. Sprocket
4. Lock sleeve 5. Hi-Lo sleeve 6. Sun gear
7. Planetary carrier assembly 8. Front shaft flange 9. Drive chain
