Physical Values

Terminal No. (Wire color)		Description		Condition		Standard value	Reference value
+	-	Signal name	Input/Output	Condition		Standard value	Reference value
1 (W/G)	5 (B)	Ignition power supply	Input	Ignition switch ON	-	10 - 16V	Battery voltage
3 (L)	-	ITS communication - H	-	-	-	-	-
5 (B)	Ground	Ground	-	Ignition switch ON	-	0 - 0.1 V	Approx. 0 V
8 (BR)	16 (Y)	Warning buzzer signal	Output	Ignition switch ON	Driver assistance buzzer OFF	0 - 0.1 V	Approx. 0 V

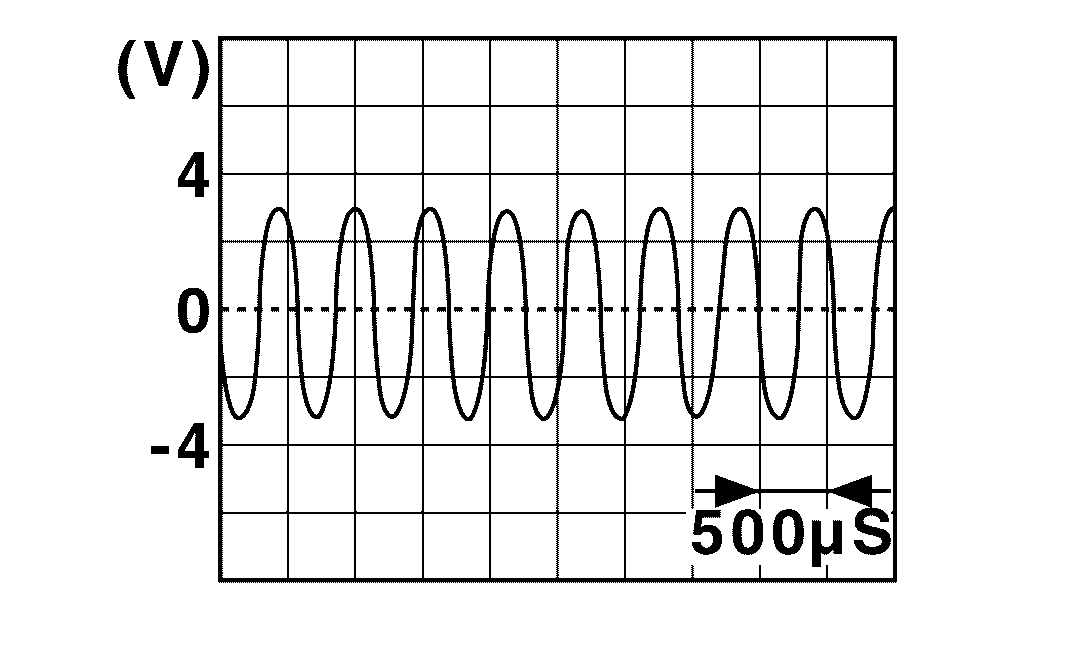

					At "BUZZER 1" test of "Active test"	Courtesy of NISSAN NORTH AMERICA, INC.

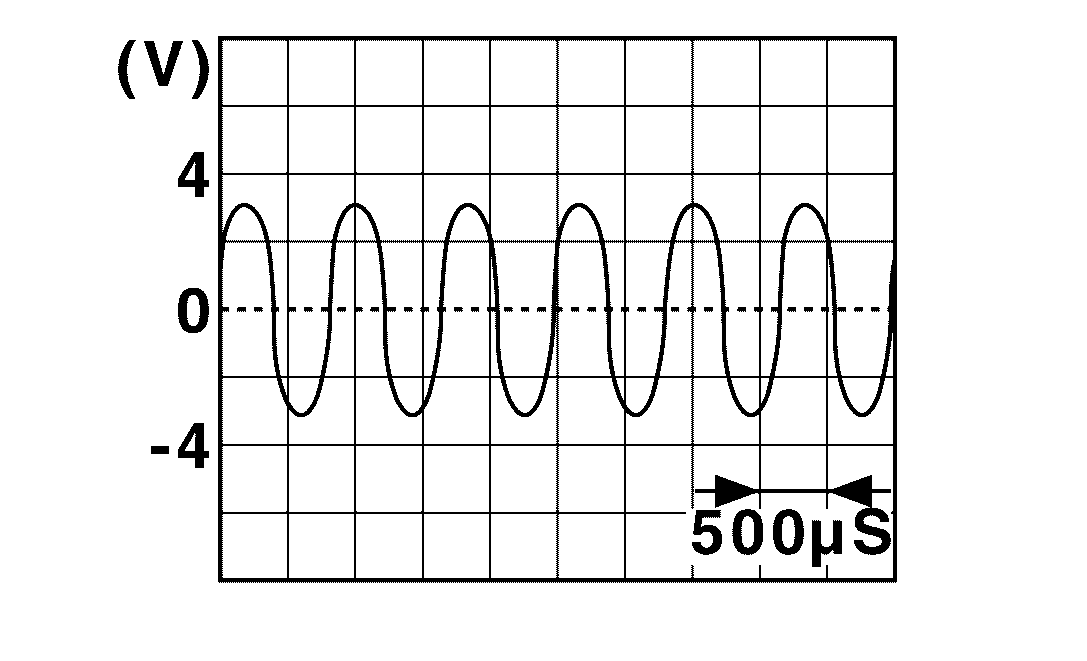

					At "BUZZER 2" test of "Active test"	Courtesy of NISSAN NORTH AMERICA, INC.
					At "BUZZER 3" test of "Active test"	Courtesy of NISSAN NORTH AMERICA, INC.
11 (Y)	-	ITS communication - L	-	-	-	-	-
13 (B)	Ground	Ground	-	Ignition switch ON	-	0 - 0.1 V	Approx. 0 V
16 (Y)	5 (B)	Warning buzzer signal ground	Output	Ignition switch ON	-	0 - 0.1 V	Approx. 0 V
