Without ACCS (Advanced Climate Control System) - Controller (Preset Switch)

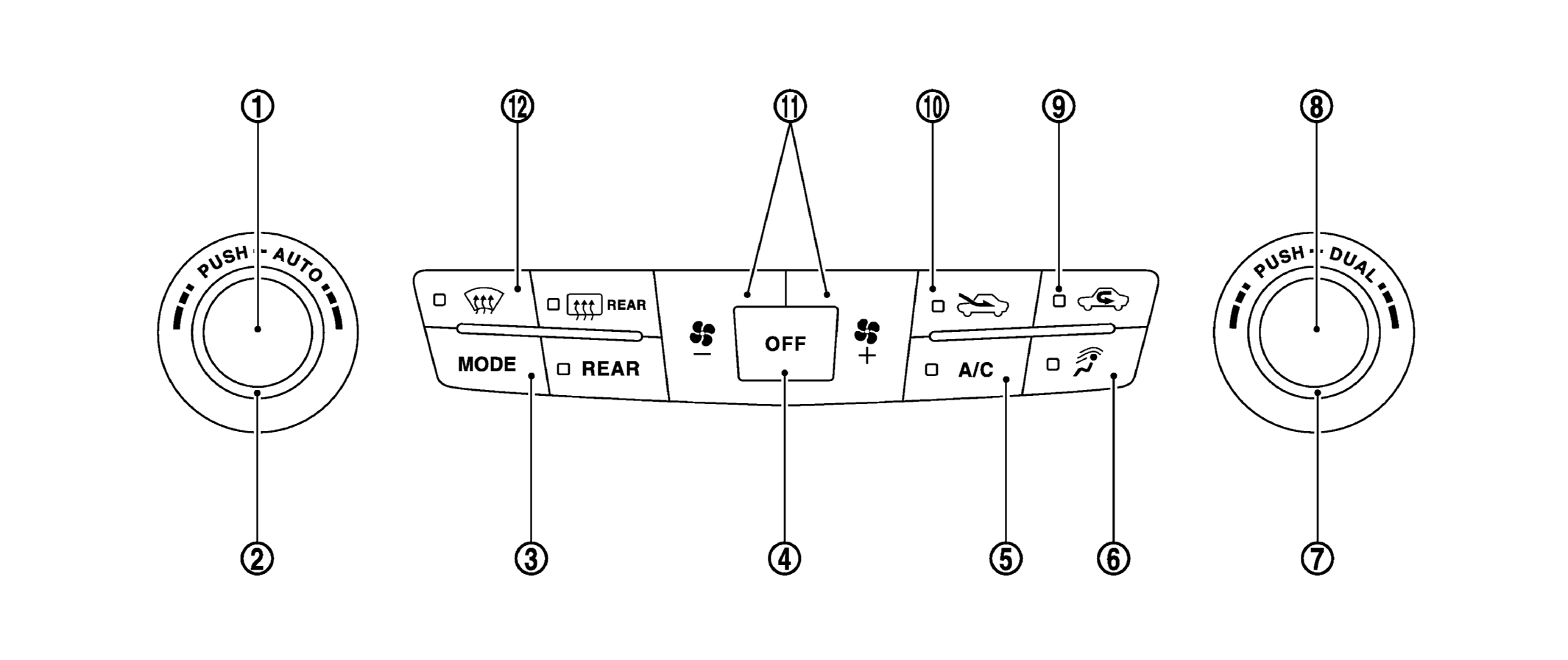

Fig 1: Locating Front Climate Control Switches (Without ACCS)
GNSJMIIA0822ZZ-822Courtesy of NISSAN NORTH AMERICA, INC.
1. AUTO switch 2. Temperature control dial (Driver side) 3. MODE switch
4. OFF switch 5. A/C switch 6. Upper ventilator switch
7. Temperature control dial (passenger side) 8. DUAL switch 9. REC switch
10. FRE switch 11. Fan switch 12. DEF switch
