Front Controller Operation - A/C Display

• Rear air conditioning system state is indicated on the front display.
• When REAR switch is pressed, the front display changes to state indication display (rear control mode) of rear air conditioning system.

Display screen

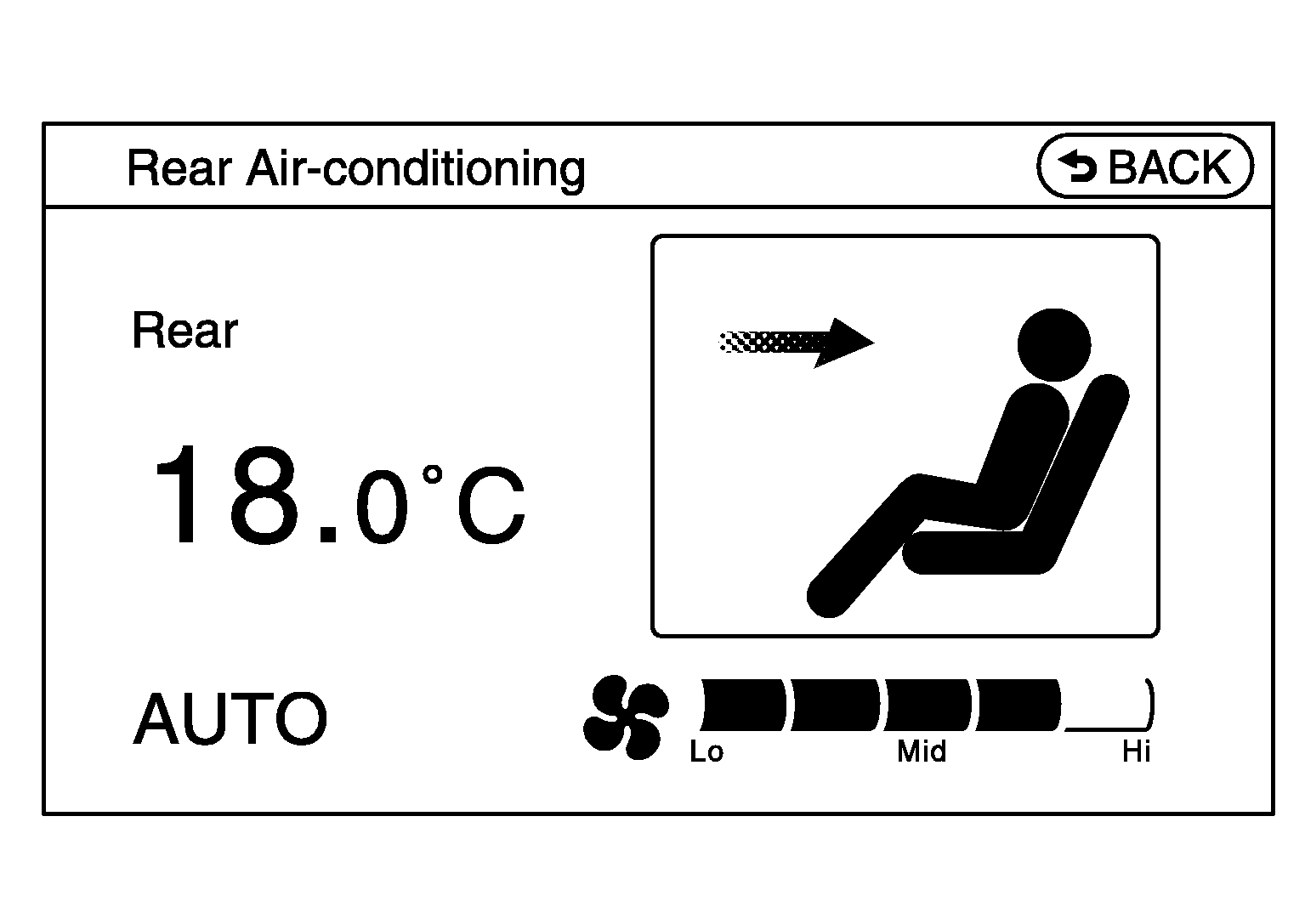

Fig 1: Screen Display - Rear Air-Conditioning

Courtesy of NISSAN NORTH AMERICA, INC.
