Front Controller Operation - Controller (Preset Switch)

With ACCS (advanced climate control system)

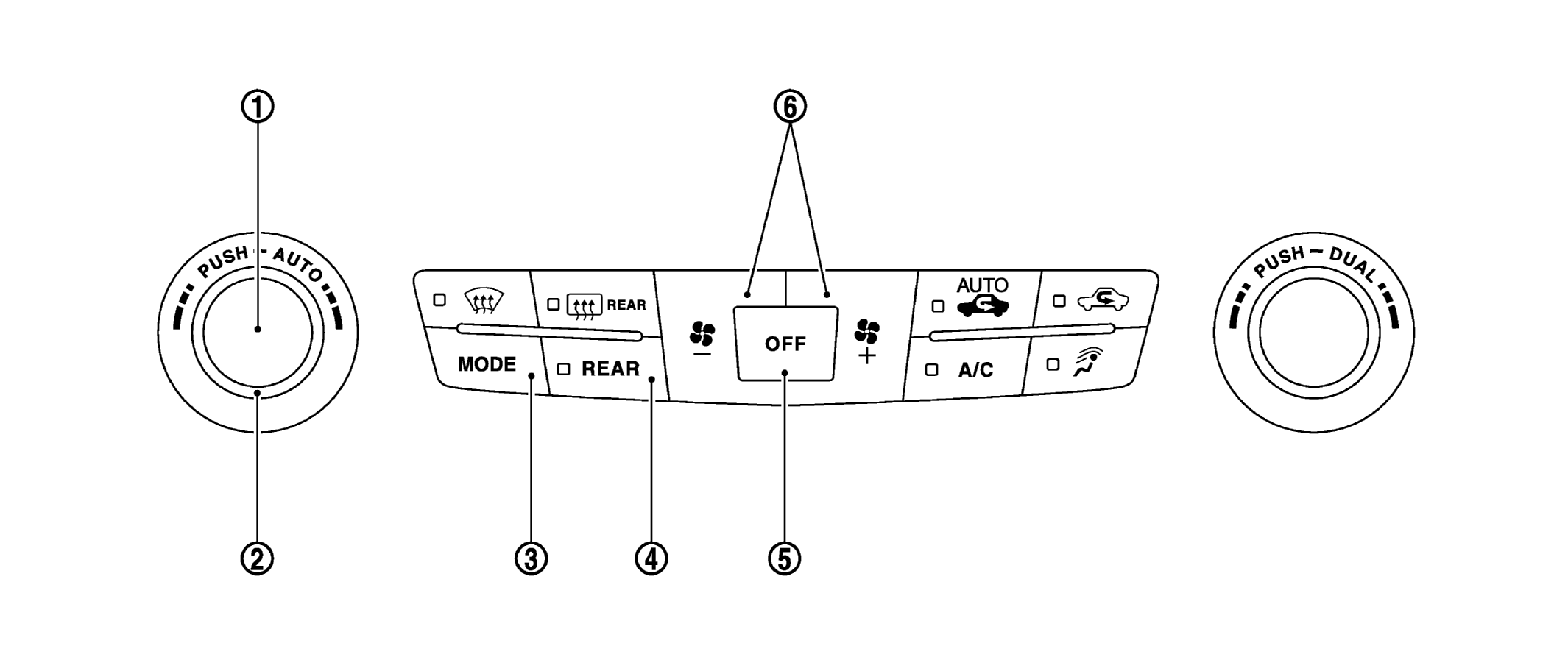

Fig 1: Locating Rear Climate Control Switches (With ACCS)
GNSJMIIA0825ZZ-825Courtesy of NISSAN NORTH AMERICA, INC.
1. AUTO switch 2. Temperature control dial (Driver side) 3. MODE switch
4. REAR switch 5. OFF switch 6. Fan switch

Without ACCS (advanced climate control system)

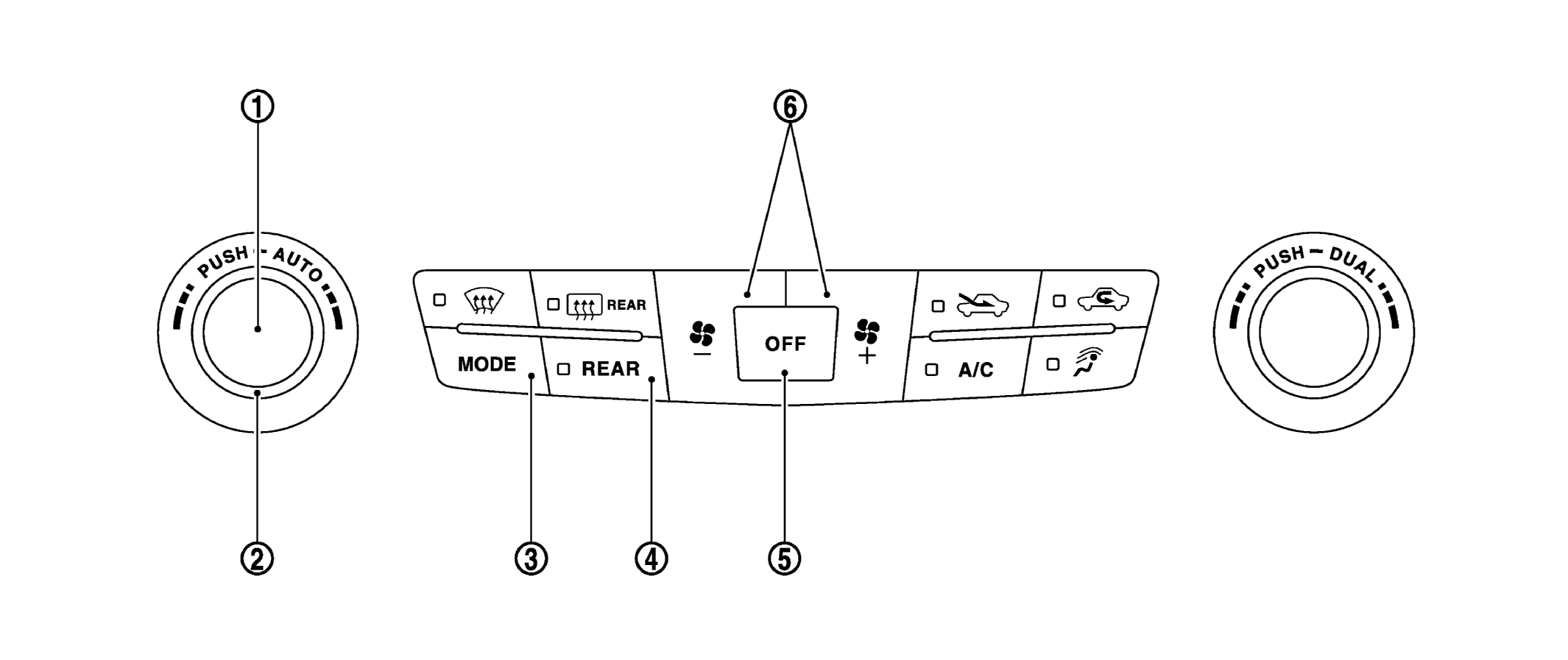

Fig 2: Locating Rear Climate Control Switches (Without ACCS)
GNSJMIIA0824ZZ-824Courtesy of NISSAN NORTH AMERICA, INC.
1. AUTO switch 2. Temperature control dial (Driver side) 3. MODE switch
4. REAR switch 5. OFF switch 6. Fan switch
