Driver Assistance Buzzer Control Module Connector End View (M150)

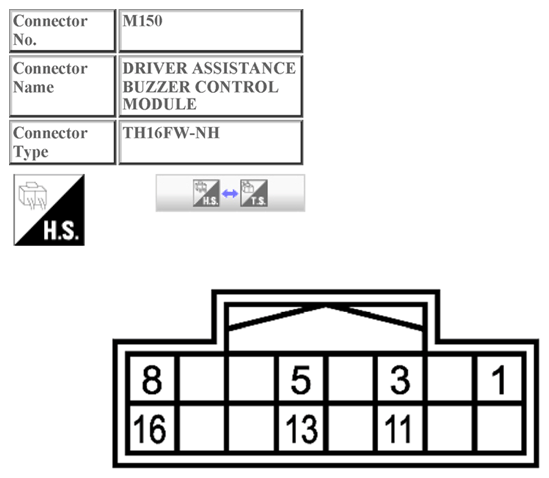

Fig 1: Driver Assistance Buzzer Control Module Connector End View (M150)
G10438750Courtesy of NISSAN NORTH AMERICA, INC.
