Exploded View With Torque Specifications

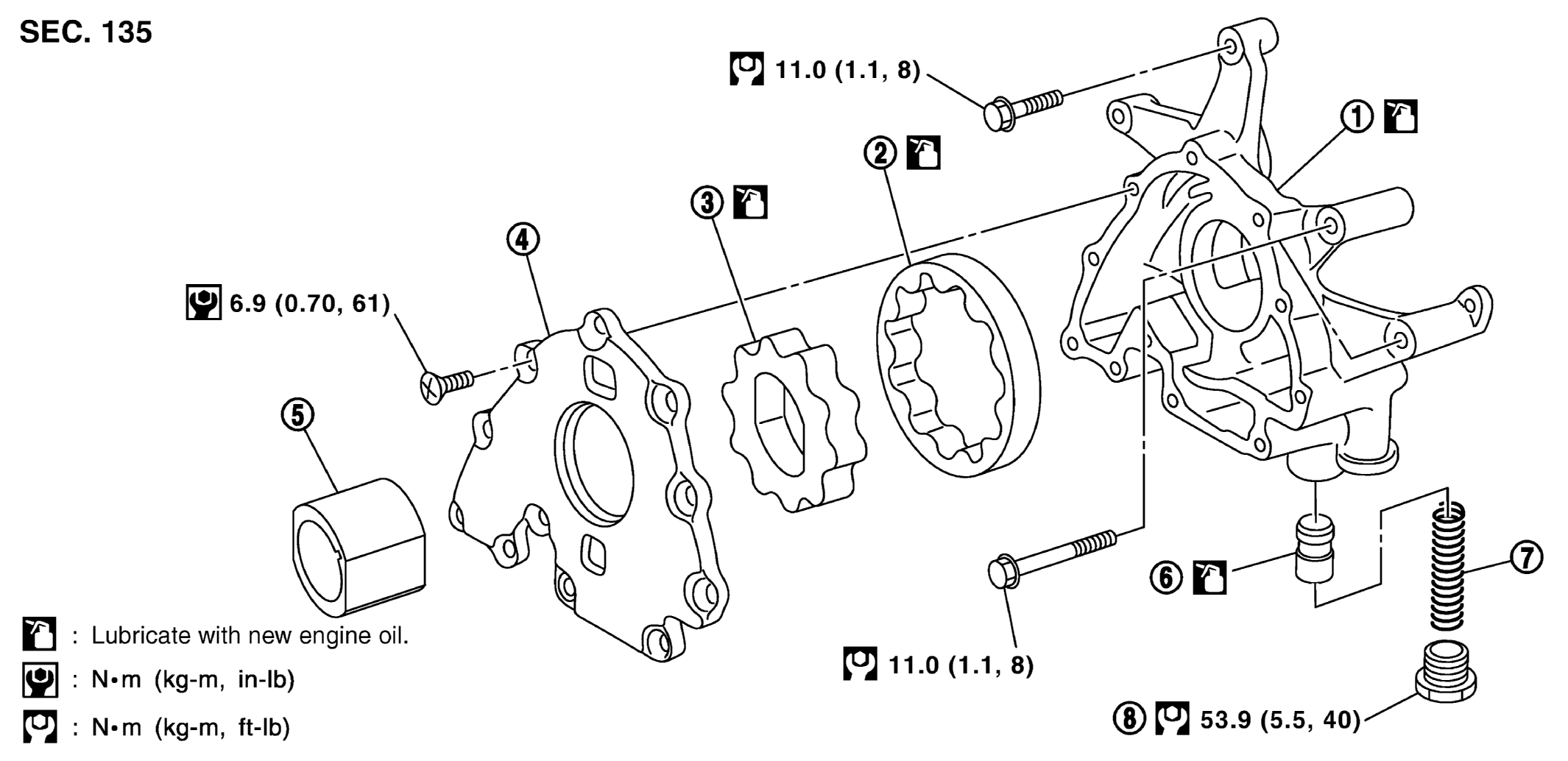

Fig 1: Exploded View Of Oil Pump With Torque Specifications
G04132439Courtesy of NISSAN NORTH AMERICA, INC.
1. Oil pump body 2. Outer rotor 3. Inner rotor
4. Oil pump cover 5. Oil pump drive spacer 6. Regulator valve
7. Regulator spring 8. Regulator plug
