Exploded View With Torque Specifications

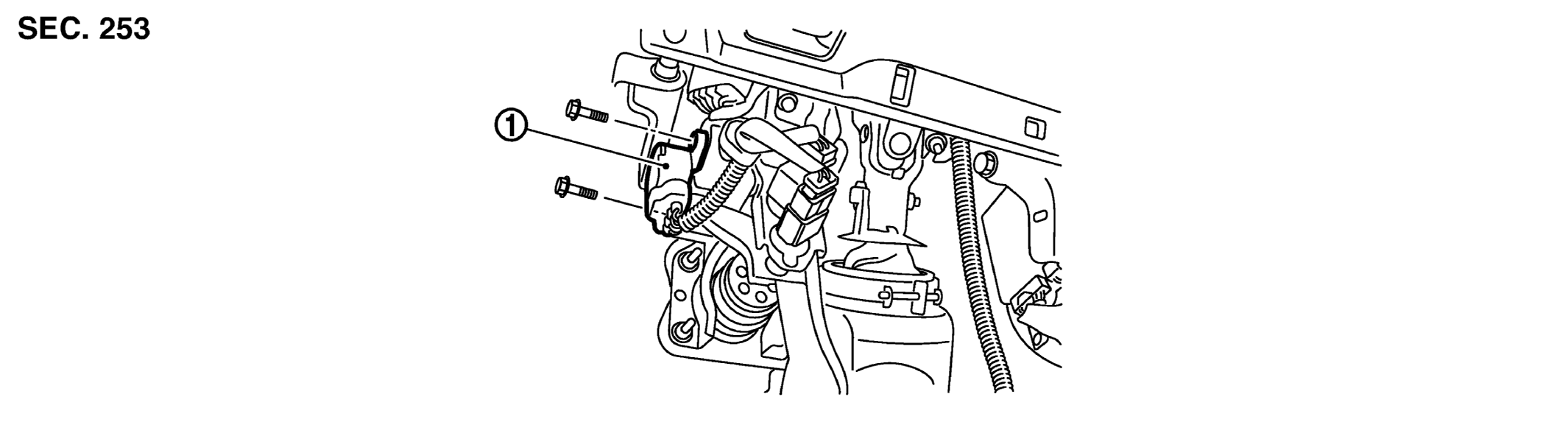

Fig 1: Exploded View Of Brake Pedal Stroke Sensor
GNSJMHIA0712ZZ-712Courtesy of NISSAN NORTH AMERICA, INC.
1. Brake pedal stroke sensor
