Exploded View

WARNING: This page is about a different car, the 2019 Infiniti Q50. However, it is still accessible from the selected car via links, so may be relevant.

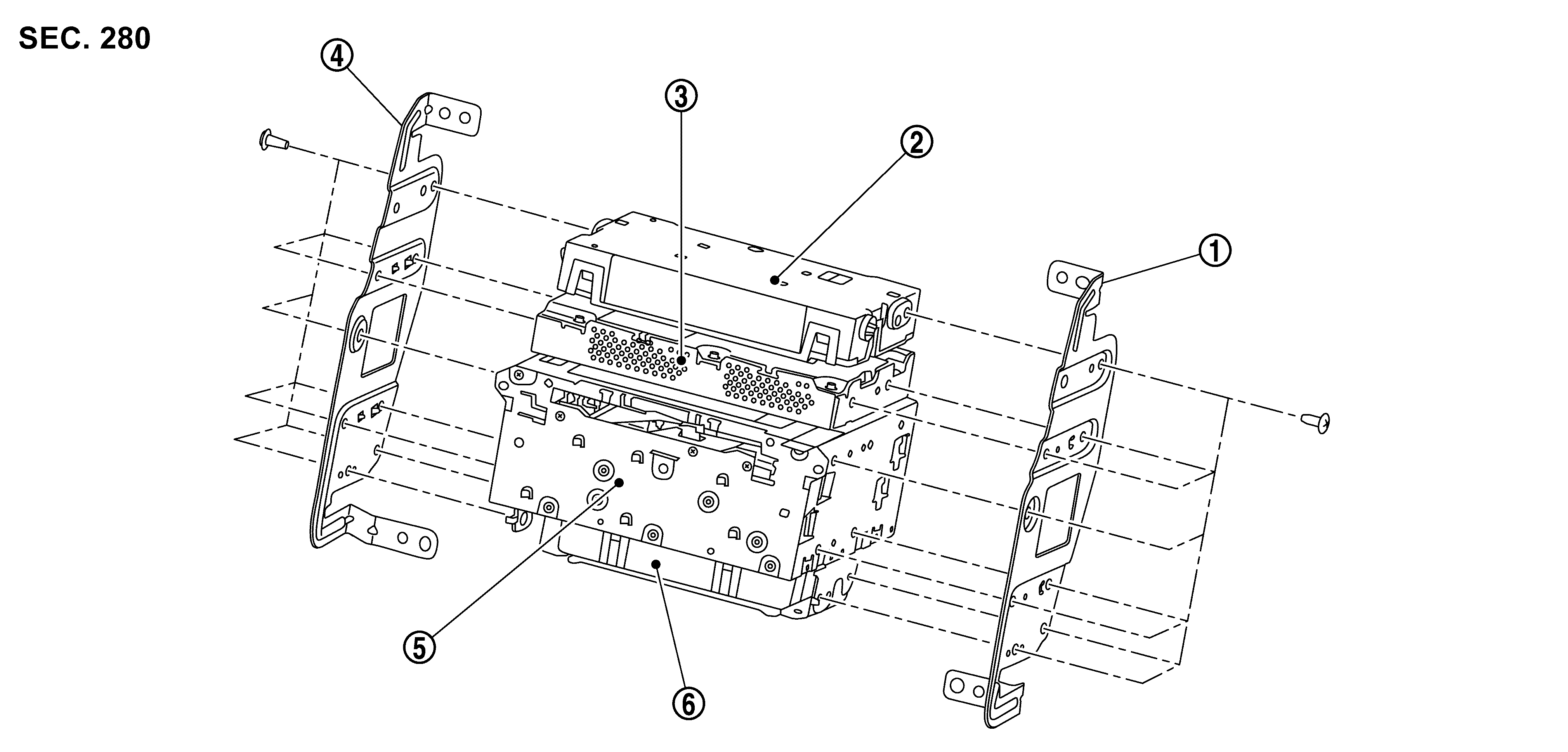

GNSJSNIB0414Z-414Courtesy of NISSAN NORTH AMERICA, INC.

SYMBOL

Bracket RH

SYMBOL

A/C auto amp.

SYMBOL

NAVI control unit

SYMBOL

Bracket LH

SYMBOL

AV control unit

SYMBOL

TCU
