Removal and Installation: Installation

WARNING: This page is about a different car, the 2019 Infiniti Q50. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION: Be sure to perform "Read/Write Configuration" when replacing ADAS control unit 2. For details, refer to Work Procedure .

Note the following, and install in the reverse order of removal.

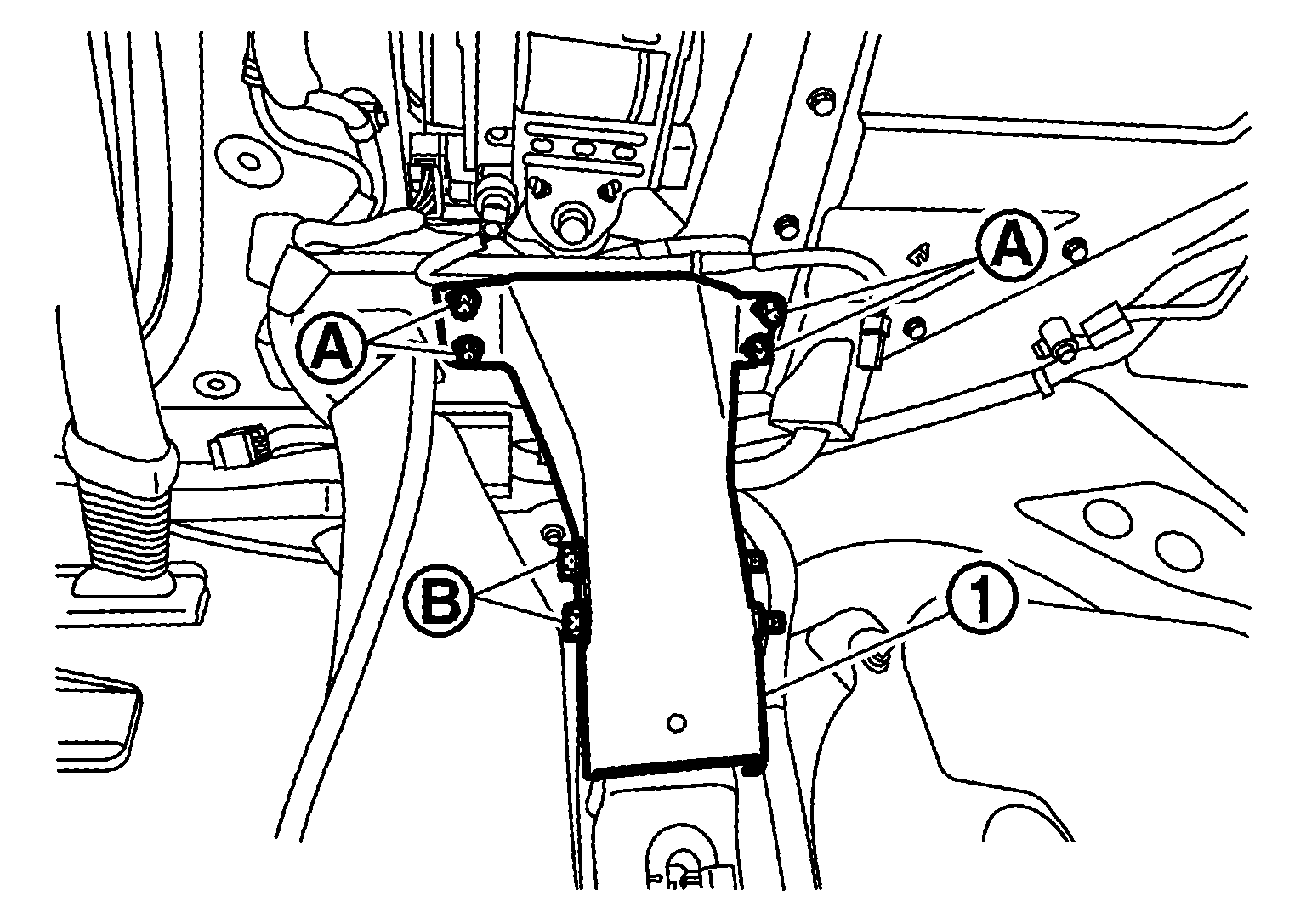

Tighten the rear floor gusset RH

bolts to the specified torque.

Courtesy of NISSAN NORTH AMERICA, INC.

Bolt	: 35 N.m (3.6 kg-m, 26 ft-lb)
Bolt	: 80 N.m (8.2 kg-m, 59 ft-lb)
