Removal and Installation: Removal

WARNING: This page is about a different car, the 2019 Infiniti Q50. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION: Before replacing ADAS control unit, perform "Read/Write Configuration" to save or print current vehicle specification (With FEB models). For details, refer to Work Procedure .
  1. Remove the rear side finisher LH. Refer to Removal and Installation .

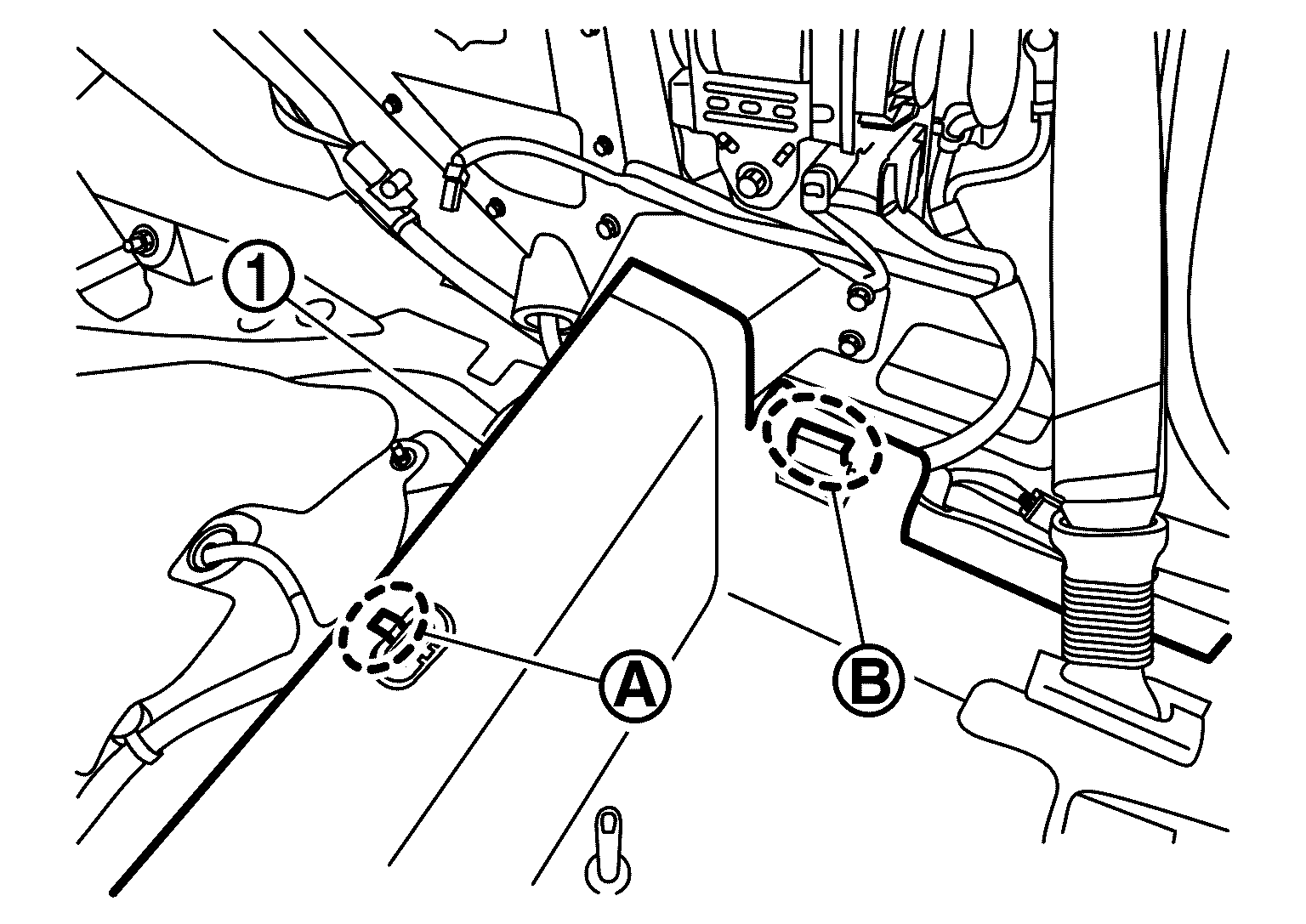

  2. Remove the floor carpet assembly SYMBOL from pawls (SYMBOL and SYMBOL ).
    GNSJSBIB0546Z-546Courtesy of NISSAN NORTH AMERICA, INC.
  3. Remove bolts (SYMBOL and SYMBOL ) and remove the rear floor gusset LH SYMBOL .
    GNSJSBIB0547Z-547Courtesy of NISSAN NORTH AMERICA, INC.

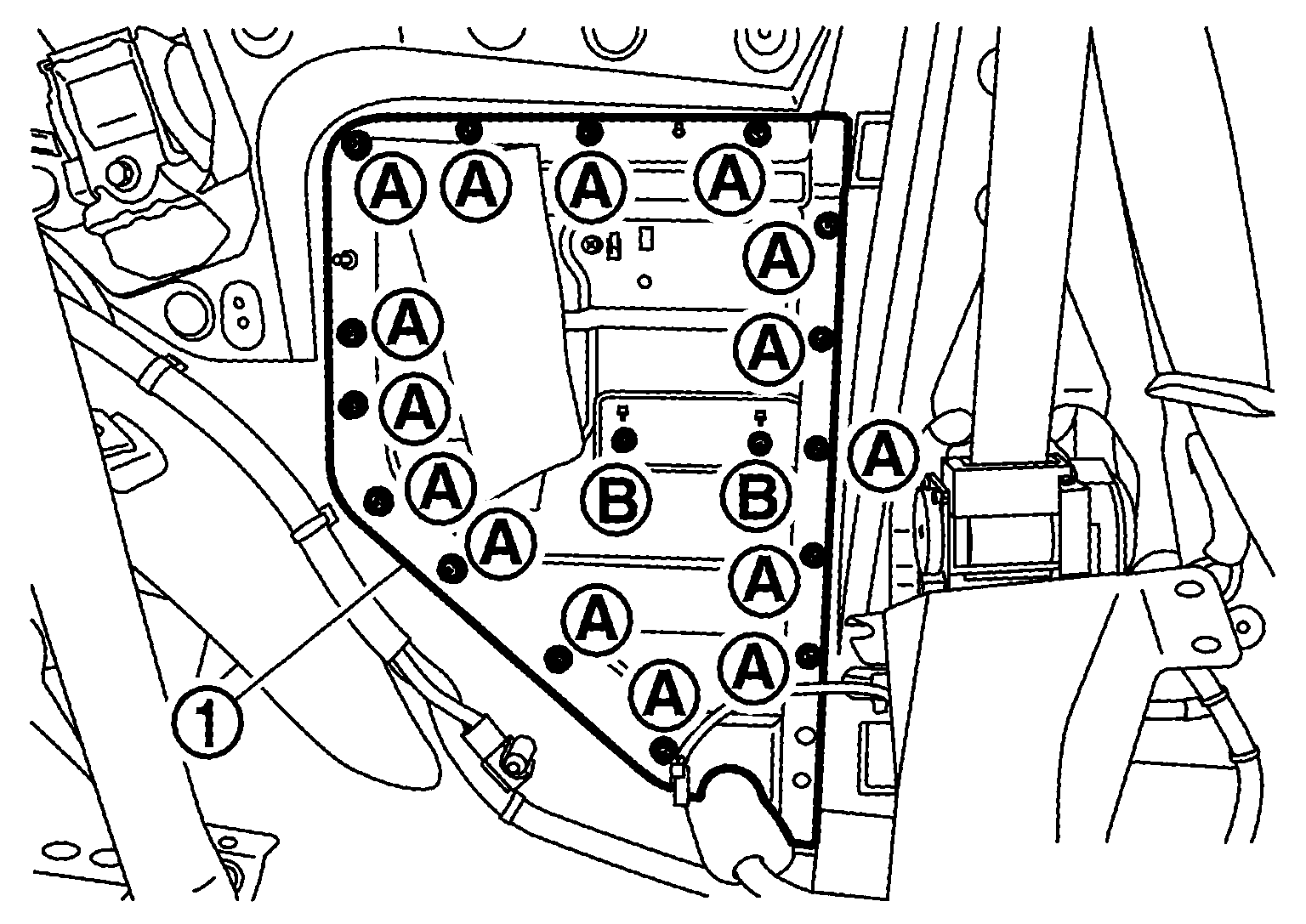

  4. Remove bolts (SYMBOL and SYMBOL ) and remove the rear pillar inner reinforcement LH SYMBOL .
    GNSJSBIB0549Z-549Courtesy of NISSAN NORTH AMERICA, INC.
  5. Disconnect ADAS control unit connector.

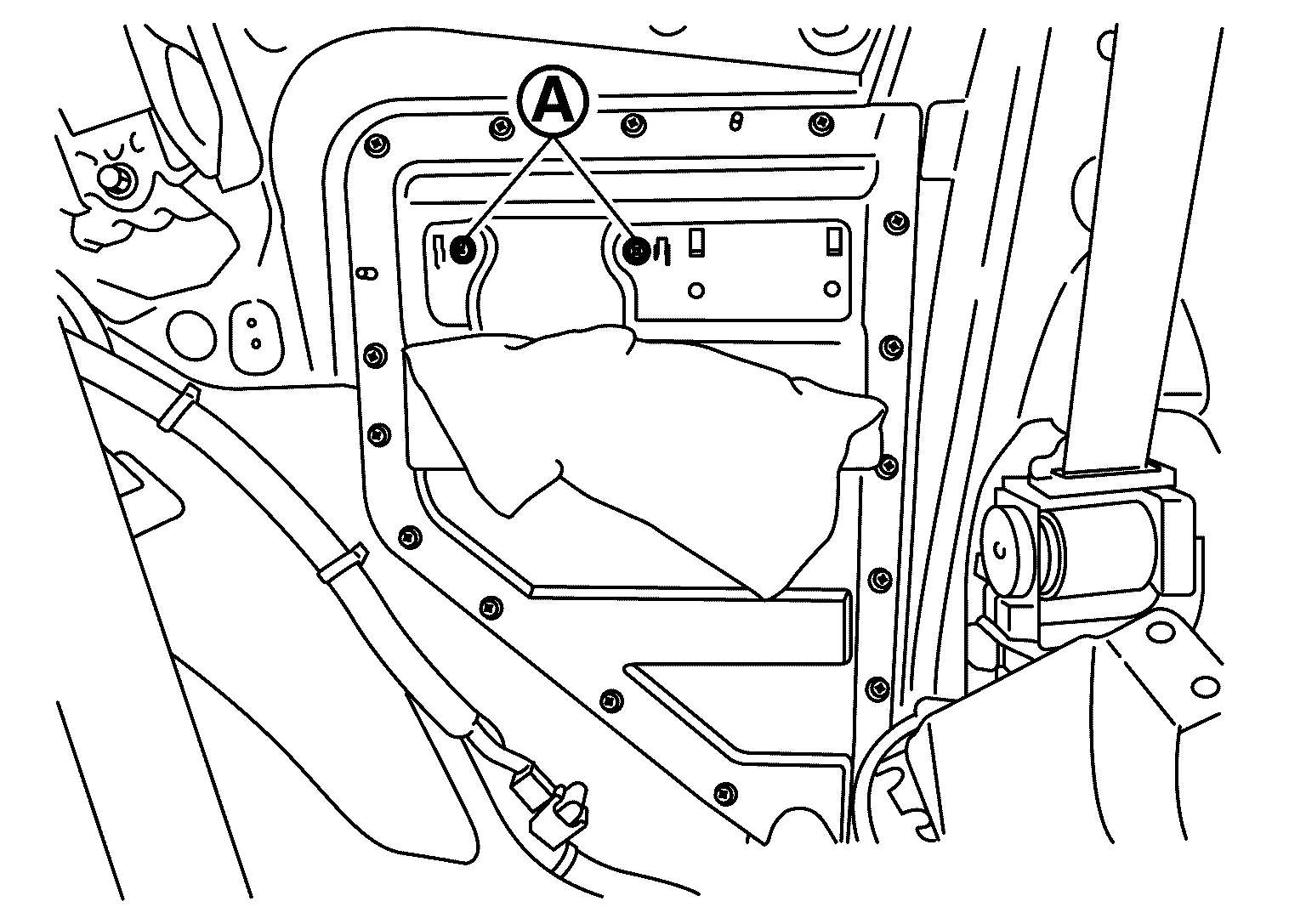

  6. Turn up the noise suppresser and ADAS control unit mounting bolts SYMBOL .
    GNSJSOIA2545Z-545Courtesy of NISSAN NORTH AMERICA, INC.
  7. Remove ADAS control unit.
