Active Test

WARNING: This page is about a different car, the 2019 Infiniti Q50. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION:

Never perform "Active Test" while driving the vehicle.
The "Active Test" cannot be performed when the following systems malfunction is displayed.
- ICC system
- DCA
- LDW
- LDP
- Blind Spot Warning
- Blind Spot Intervention
- BCI
The "Active Test" cannot be performed when the FEB warning lamp is illuminated.
Shift the selector lever to "P" position, and then perform the test.

Test item	Description
BRAKE ACTUATOR	Activates the brake by an arbitrary operation
ICC BUZZER	Sounds a buzzer used for following systems by arbitrarily operating ON/OFF Intelligent Cruise Control (ICC) Distance Control Assist (DCA) Predictive Forward Collision Warning (PFCW) Forward Emergency Brake (FEB)
METER LAMP	The MAIN switch indicator and FEB warning lamp can be illuminated by ON/OFF operations as necessary
STOP LAMP	The ICC brake hold relay can be operated by ON/OFF operations as necessary, and the stop lamp can be illuminated
ACTIVE PEDAL	The accelerator pedal actuator can be operated as necessary
DCA INDICATOR	The DCA system display can be illuminated by ON/OFF operations as necessary
LDP BUZZER	Sounds a buzzer used for following systems by arbitrarily operating ON/OFF Lane Departure Warning (LDW) Lane Departure Prevention (LDP) Blind Spot Warning (BSW) Blind Spot Intervention
LDP ON IND	The LDP system display can be illuminated by ON/OFF operations as necessary
LANE DEPARTURE W/L	The LDW/LDP warning can be illuminated by ON/OFF operations as necessary
BSW/BSI WARNING INDICATOR	The BSW malfunction can be illuminated by ON/OFF operations as necessary
BSI ON INDICATOR	The Blind Spot Intervention system display can be illuminated by ON/OFF operations as necessary
LDW ON INDICATOR	The LDW system display can be illuminated by ON/OFF operations as necessary
LDP WARNING INDICATOR	The LDP malfunction can be illuminated by ON/OFF operations as necessary
LDW WARNING INDICATOR	The LDW malfunction can be illuminated by ON/OFF operations as necessary
BSW ON INDICATOR	The Blind Spot Warning system display can be illuminated by ON/OFF operations as necessary
BSI WARNING INDICATOR	The Blind Spot Intervention malfunction can be illuminated by ON/OFF operations as necessary

BRAKE ACTUATOR

NOTE: The test can be performed only when the engine is running.

Test item	Operation	Description	"PRESS SENS" value

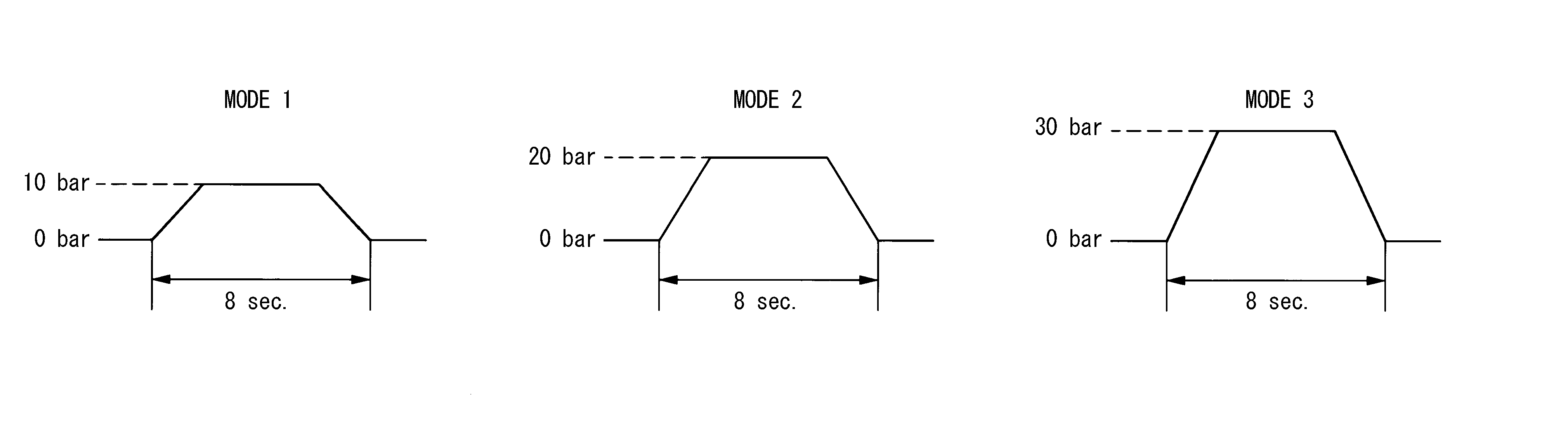

BRAKE ACTUATOR	MODE1	Transmits the brake fluid pressure control signal to the ABS actuator and electric unit (control unit) via chassis control module	10 bar
	MODE2		20 bar
	MODE3		30 bar
	Test start	Starts the tests of "MODE1", "MODE2" and "MODE3"	--
	Reset	Stops transmitting the brake fluid pressure control signal below to end the test	--
	End	Returns to the "SELECT TEST ITEM" screen	--

NOTE: The test is finished in 10 seconds after starting

Courtesy of NISSAN NORTH AMERICA, INC.

ICC BUZZER

Test item	Operation	Description	Operation sound
ICC BUZZER	MODE1	Transmits the buzzer output signals to the ADAS control unit 2 via ITS communication	Intermittent beep sound
	Test start	Starts the tests of "MODE1"	--
	Reset	Stops transmitting the buzzer output signal below to end the test	--
	End	Returns to the "SELECT TEST ITEM" screen	--

METER LAMP

NOTE: The test can be performed only when the engine is running.

Test item

Operation

Description

MAIN switch indicator
ICC system warning
FEB warning lamp

METER LAMP

Off

Stops sending the following signals to exit from the test

Meter display signal
FEB warning lamp signal

OFF

Transmits the following signals to the combination meter via CAN communication

Meter display signal
FEB warning lamp signal

STOP LAMP

Test item	Operation	Description	Stop lamp
STOP LAMP	Off	Stops transmitting the ICC brake hold relay drive signal below to end the test	OFF
STOP LAMP	On	Transmits the ICC brake hold relay drive signal	ON

ACTIVE PEDAL

CAUTION:

Shift the selector lever to "P" position, and then perform the test.
Never depress the accelerator pedal excessively. (The engine speed may rise unexpectedly when finishing the test.)

NOTE:

Depress the accelerator pedal to check when performing the test.
The test can be performed only when the engine is running.

Test item	Operation	Description	Accelerator pedal operation

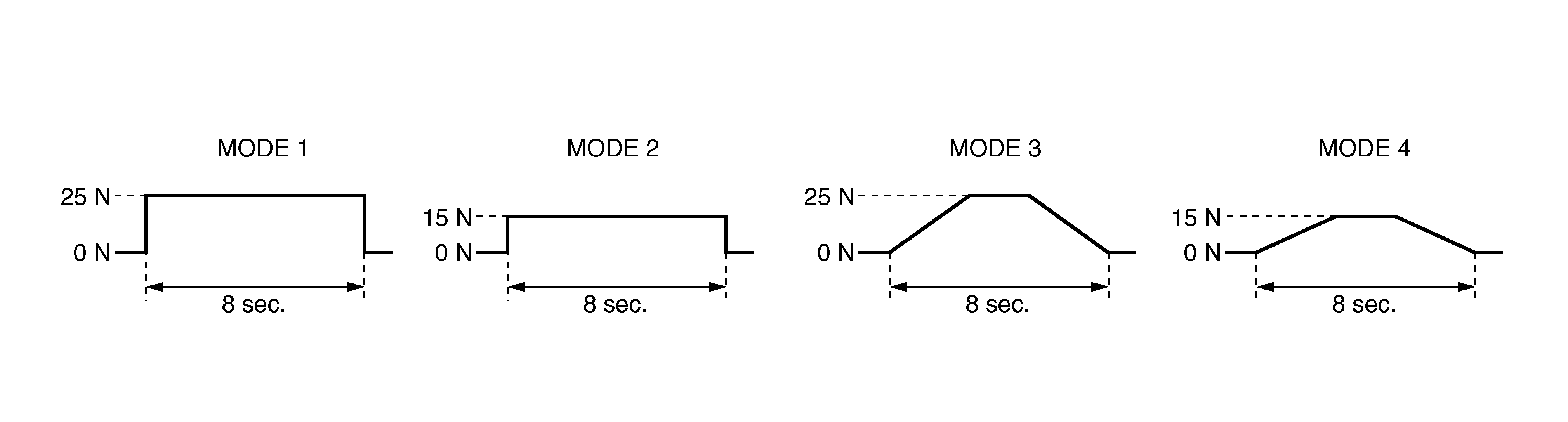

ACTIVE PEDAL	MODE1	Transmit the accelerator pedal feedback force control signal to the accelerator pedal actuator via ITS communication.	Constant with a force of 25 N for 8 seconds
	MODE2		Constant with a force of 15 N for 8 seconds
	MODE3		Change up to a force of 25 N for 8 seconds
	MODE4		Change up to a force of 15 N for 8 seconds
	Test start	Starts the tests of "MODE1", "MODE2", "MODE3" and "MODE4"	--
	Reset	Stops transmitting the accelerator pedal feedback force control signal below to end the test.	--
	End	Returns to the "SELECT TEST ITEM" screen	--

NOTE: The test is finished in 10 seconds after starting

Courtesy of NISSAN NORTH AMERICA, INC.

DCA INDICATOR

NOTE: The test can be performed only when the engine is running.

Test item	Operation	Description	DCA system display
DCA INDICATOR	Off	Stops transmitting the meter display signal below to end the test	--
DCA INDICATOR	On	Transmits the meter display signal to the combination meter via CAN communication	ON

LDP BUZZER

Test item	Operation	Description	Warning buzzer
LDP BUZZER	Off	Stops transmitting the warning buzzer signal below to end the test	--
LDP BUZZER	On	Transmits the warning buzzer signal to the warning buzzer	ON

LDP ON IND

Test item	Operation	Description	LDP system display (Green)
LDP ON IND	Off	Stops transmitting the meter display signal below to end the test	--
LDP ON IND	On	Transmits the meter display signal to the combination meter via CAN communication	ON

LANE DEPARTURE W/L

Test item	Operation	Description	Lane departure system display (Yellow)
LANE DEPARTURE W/L	Off	Stops transmitting the meter display signal below to end the test	--
LANE DEPARTURE W/L	On	Transmits the meter display signal to the combination meter via CAN communication	ON

BSW/BSI WARNING INDICATOR

Test item	Operation	Description	BSW malfunction (Yellow)
BSW/BSI WARNING INDICATOR	Off	Stops transmitting the meter display signal below to end the test	--
BSW/BSI WARNING INDICATOR	On	Transmits the meter display signal to the combination meter via CAN communication	ON

BSI ON INDICATOR

Test item	Operation	Description	Blind Spot Intervention system display (Green)
BSI ON INDICATOR	Off	Stops transmitting the meter display signal below to end the test	--
BSI ON INDICATOR	On	Transmits the meter display signal to the combination meter via CAN communication	ON

LDW ON INDICATOR

Test item	Operation	Description	LDW system display (White)
LDW ON INDICATOR	Off	Stops transmitting the meter display signal below to end the test	--
LDW ON INDICATOR	On	Transmits the meter display signal to the combination meter via CAN communication	ON

LDP WARNING INDICATOR

Test item	Operation	Description	LDP malfunction (Yellow)
LDP WARNING INDICATOR	Off	Stops transmitting the meter display signal below to end the test	--
LDP WARNING INDICATOR	On	Transmits the meter display signal to the combination meter via CAN communication	ON

LDW WARNING INDICATOR

Test item	Operation	Description	LDW malfunction (Yellow)
LDW WARNING INDICATOR	Off	Stops transmitting the meter display signal below to end the test	--
LDW WARNING INDICATOR	On	Transmits the meter display signal to the combination meter via CAN communication	ON

BSW ON INDICATOR

Test item	Operation	Description	Blind Spot Warning system display (Yellow)
BSW ON INDICATOR	Off	Stops transmitting the meter display signal below to end the test	--
BSW ON INDICATOR	On	Transmits the meter display signal to the combination meter via CAN communication	ON

BSI WARNING INDICATOR

Test item	Operation	Description	Blind Spot Intervention malfunction (Yellow)
BSI WARNING INDICATOR	Off	Stops transmitting the meter display signal below to end the test	--
BSI WARNING INDICATOR	On	Transmits the meter display signal to the combination meter via CAN communication	ON
