Exploded View

WARNING: This page is about a different car, the 2019 Infiniti Q50. However, it is still accessible from the selected car via links, so may be relevant.

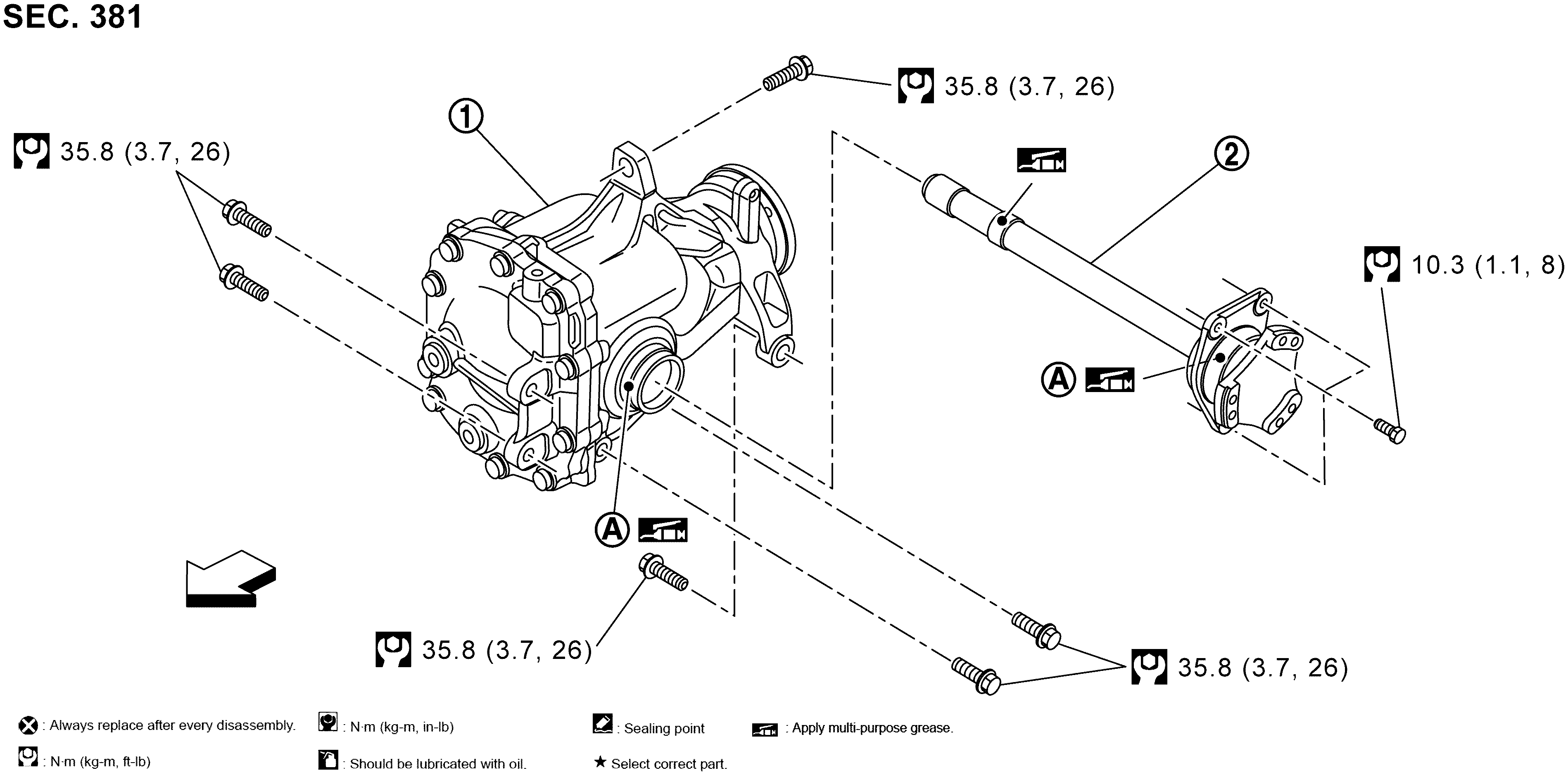

Fig 1: Front Final Drive Assembly Components With Torque Specification (2.0L Turbo Gasoline Engine)
GNSJSDIA9087GB-087Courtesy of NISSAN NORTH AMERICA, INC.

SYMBOL

Front final drive assembly

SYMBOL

Side shaft assembly

SYMBOL

Outer part of O-ring

SYMBOL : Vehicle front

SYMBOL : N.m (kg-m, ft-lb)

SYMBOL : Apply multi purpose grease.
