Warning And Automatic Cancellation Display

WARNING: This page is about a different car, the 2019 Infiniti Q50. However, it is still accessible from the selected car via links, so may be relevant.

Condition

Description

Display on system display

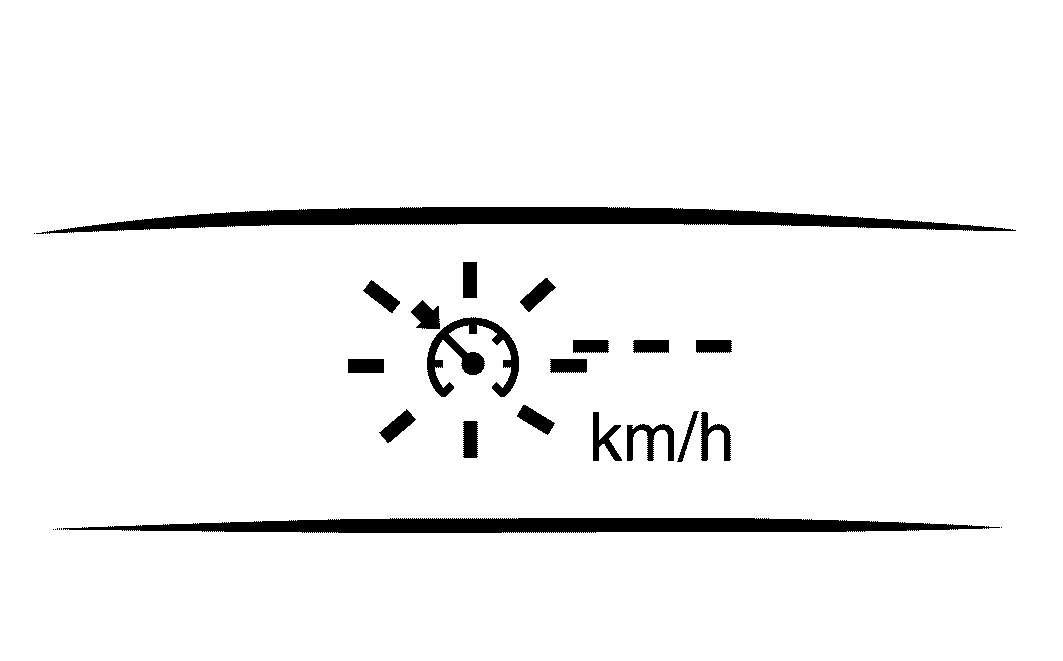

Warning display

When the ASCD system is malfunctioning

A chime sounds and the control is automatically canceled

NOTE: Turn the engine OFF and restart engine. If there is no malfunction, it is possible to set the system
GNSJSOIA1022Z-022Courtesy of NISSAN NORTH AMERICA, INC.

System cancel display

  • When brake pedal is depressed
  • When pressing CANCEL switch
  • When the vehicle slows down more than 13 km/h (8 MPH) below the set speed
  • When the selector lever is not in the "D" position or manual mode
  • When the parking brakes are applied
  • When VDC (including the TCS) operates
  • When a wheel slips

A chime sounds and the control is automatically canceled

NOTE:
  • The system will be in a standby, after the control is automatically canceled
  • A chime sounds when the control is automatically canceled, except when brake pedal is depressed or when CANCEL switch is pressed
GNSJSOIA1020Z-020Courtesy of NISSAN NORTH AMERICA, INC.
NOTE: When the ASCD system is automatically canceled, the cancellation condition can be displayed on "WORK SUPPORT" of CONSULT (ICC/ADAS).
