Transmission Range Switch
WARNING: This page is about a different variant/trim than selected.
- The transmission range switch

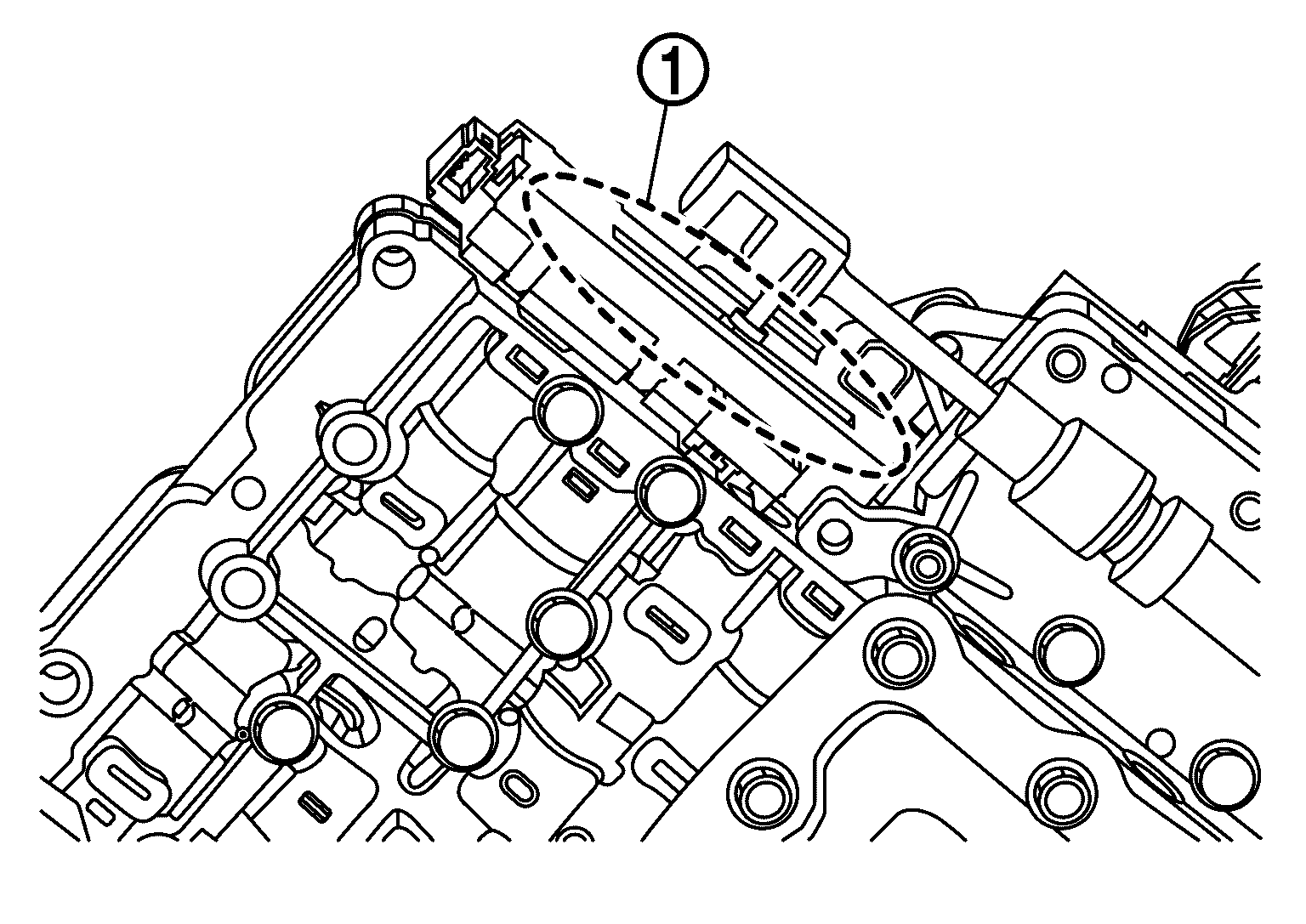

is installed to control valve assembly.
- The transmission range switch incorporates four contact switches. Each contact switch transmits an ON/OFF signal to the TCM.
- The TCM judges a select lever position from a combination of ON/OFF signals transmitted from each contact switch.
Select lever position Transmission range switch SW1 SW2 SW3 SW4 P OFF OFF OFF OFF R ON OFF OFF ON N ON ON OFF OFF D and M ON ON ON ON
