Charge Air Control System Overview (1VC26)

Publication date: 2016-06-01
Reference number: 1VC26

CHARGE AIR CONTROL SYSTEM OVERVIEW

CHARGE AIR CONTROL SYSTEM OVERVIEW

TECHNICAL SERVICE BULLETIN

Reference Number(s): 1VC26, Date of Issue: June 01, 2016

INFINITI:

2016 Q50 V37

CHARGE AIR CONTROL SYSTEM OVERVIEW

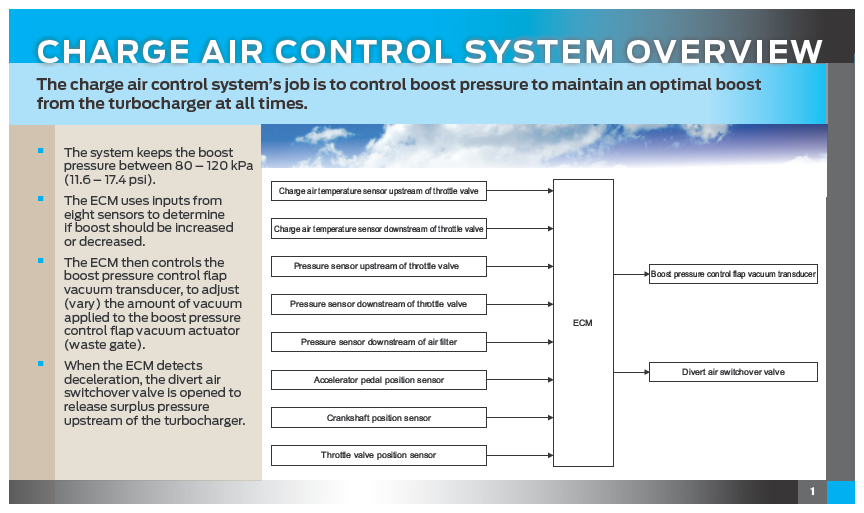

G10529948

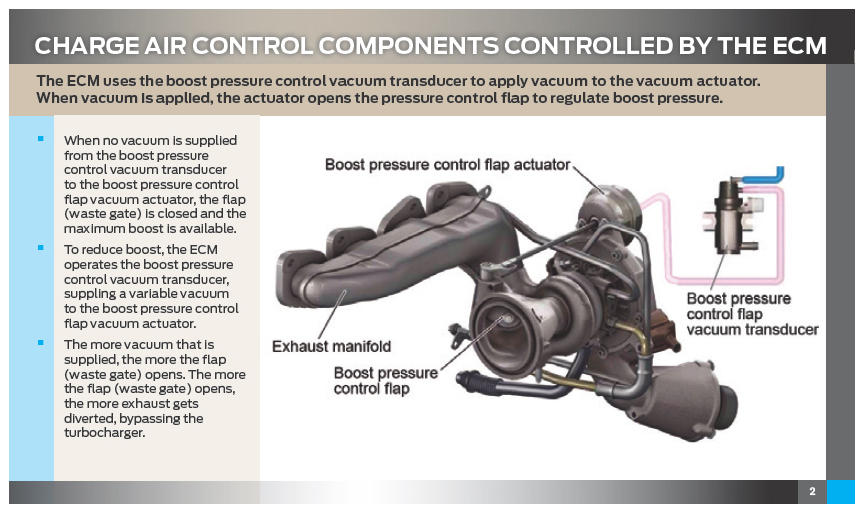

G10529949

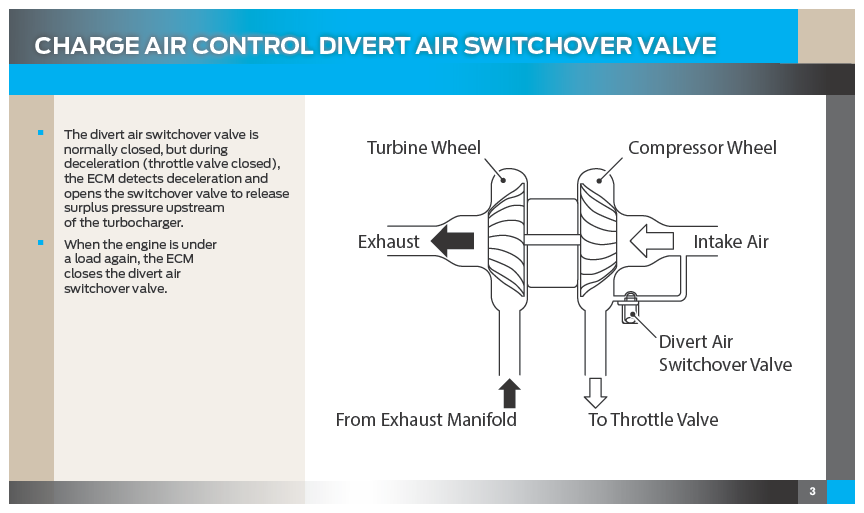

G10529950

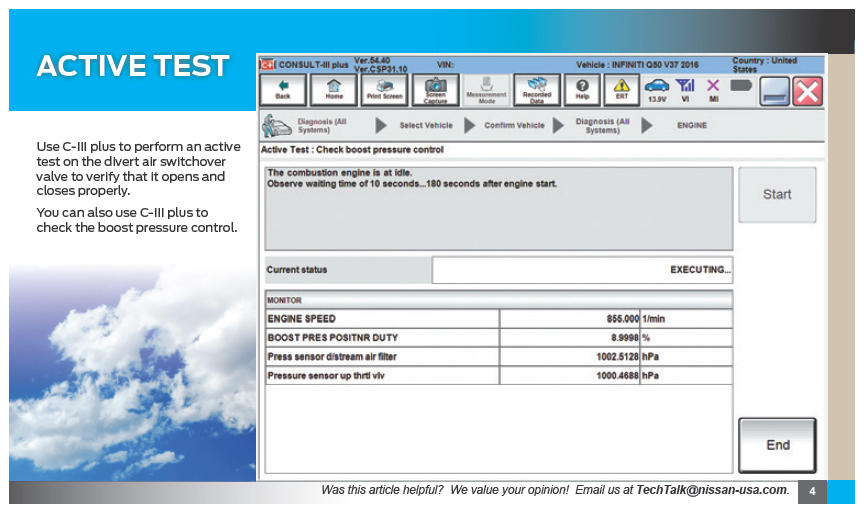

G10529951
