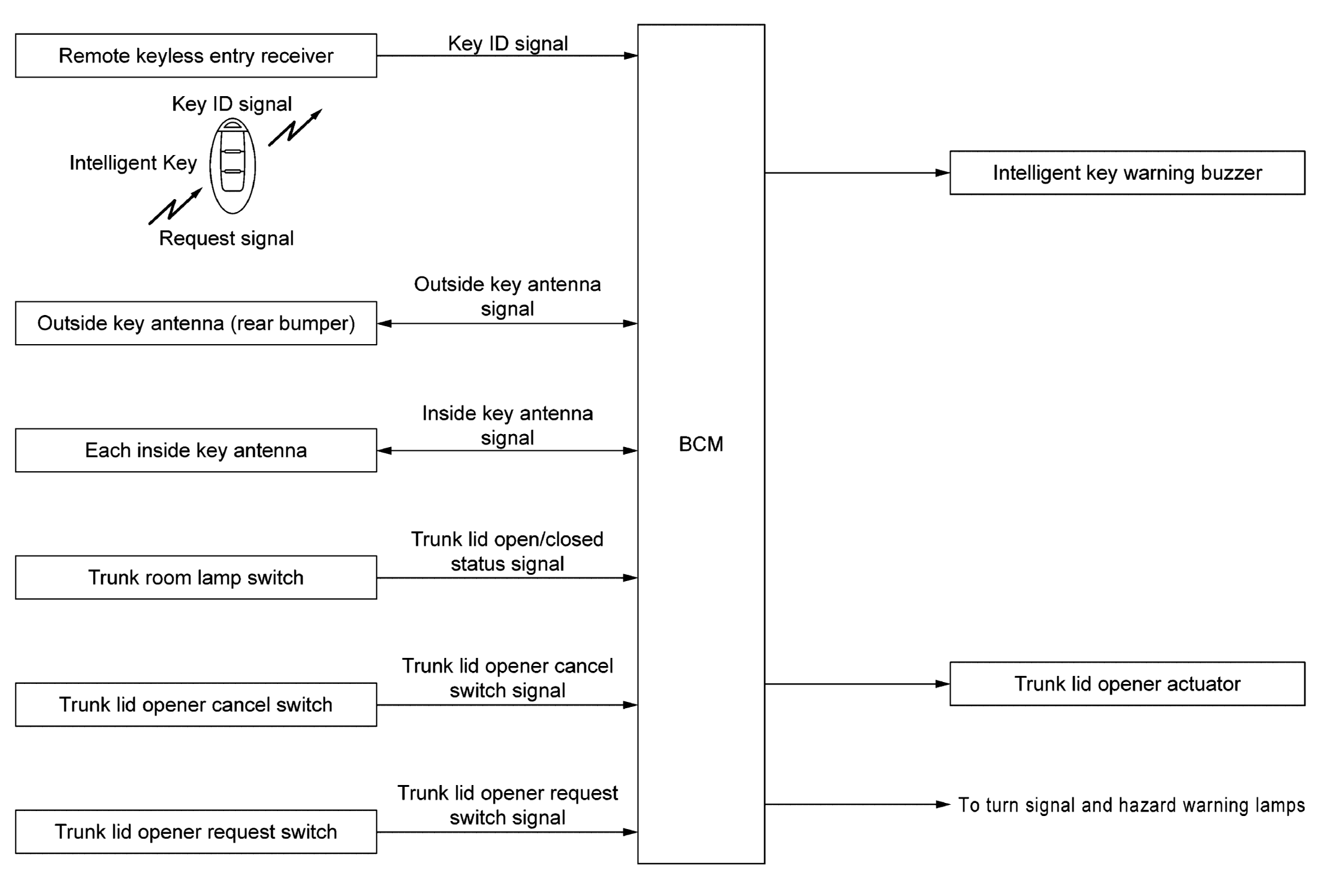

System Diagram

GNSJMKIB4536GB-536Courtesy of NISSAN NORTH AMERICA, INC.

Trunk open function controls operation function of the following items.
