Vehicle Equipment Identification Information

NOTE:

Check CAN system type from the vehicle shape and equipment.

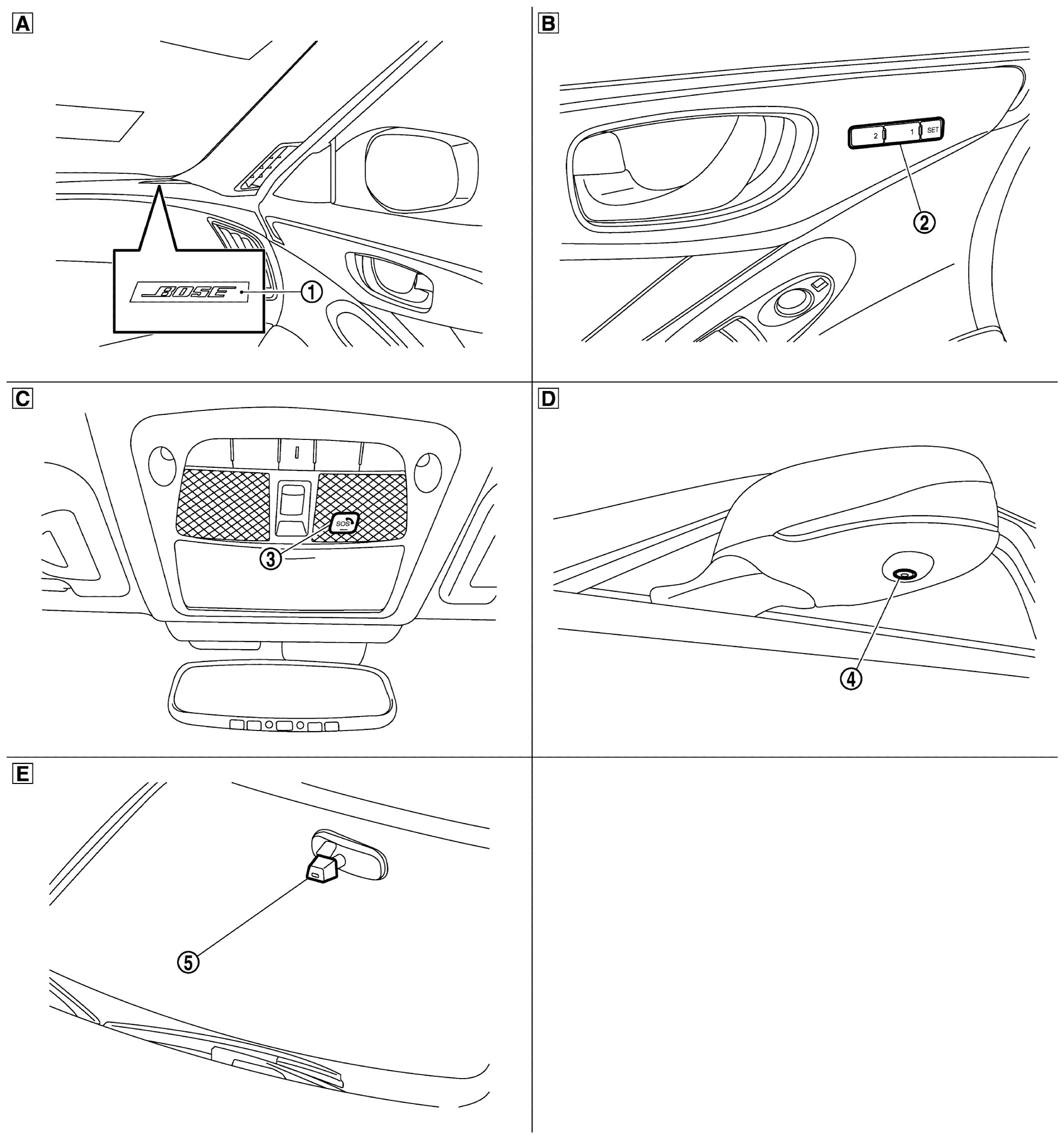

GNSJSMIA2723ZZ-723Courtesy of NISSAN NORTH AMERICA, INC.
WHITE-1 Front squawker RH WHITE-2 Seat memory switch WHITE-3 Telematics switch
WHITE-4 Side camera LH WHITE-5 Image sensor
(Inside mirror assembly)
WZ-A With BOSE audio system WZ-B With automatic drive positioner WZ-C With telematics system
WZ-D With around view monitor system WZ-E With high beam assist system
