ICC System Display (On The Information Display)

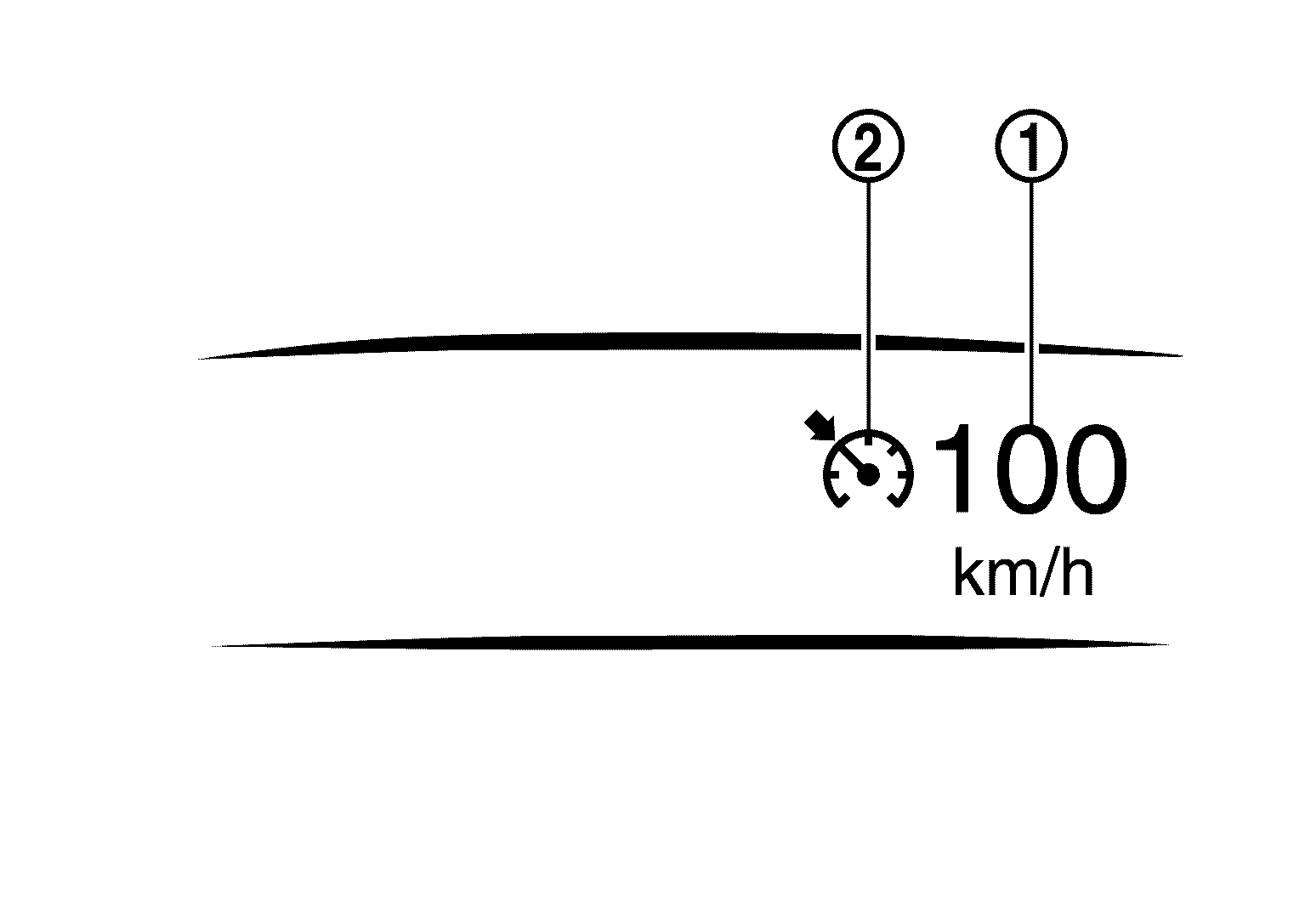

G09161854Courtesy of NISSAN NORTH AMERICA, INC.
No. Description Function
WHITE-1 Set vehicle speed indicator Indicates the set vehicle speed
WHITE-2 ICC system warning (yellow) Indicates that a malfunction occurs in the ICC system
MAIN switch indicator (white) Indicates that the MAIN switch is ON (ICC system ON)
SET switch indicator (green) Indicates that the set conventional (fixed speed) cruise control mode is controlled
