System Display - DCA/LDP/Blind Spot Intervention

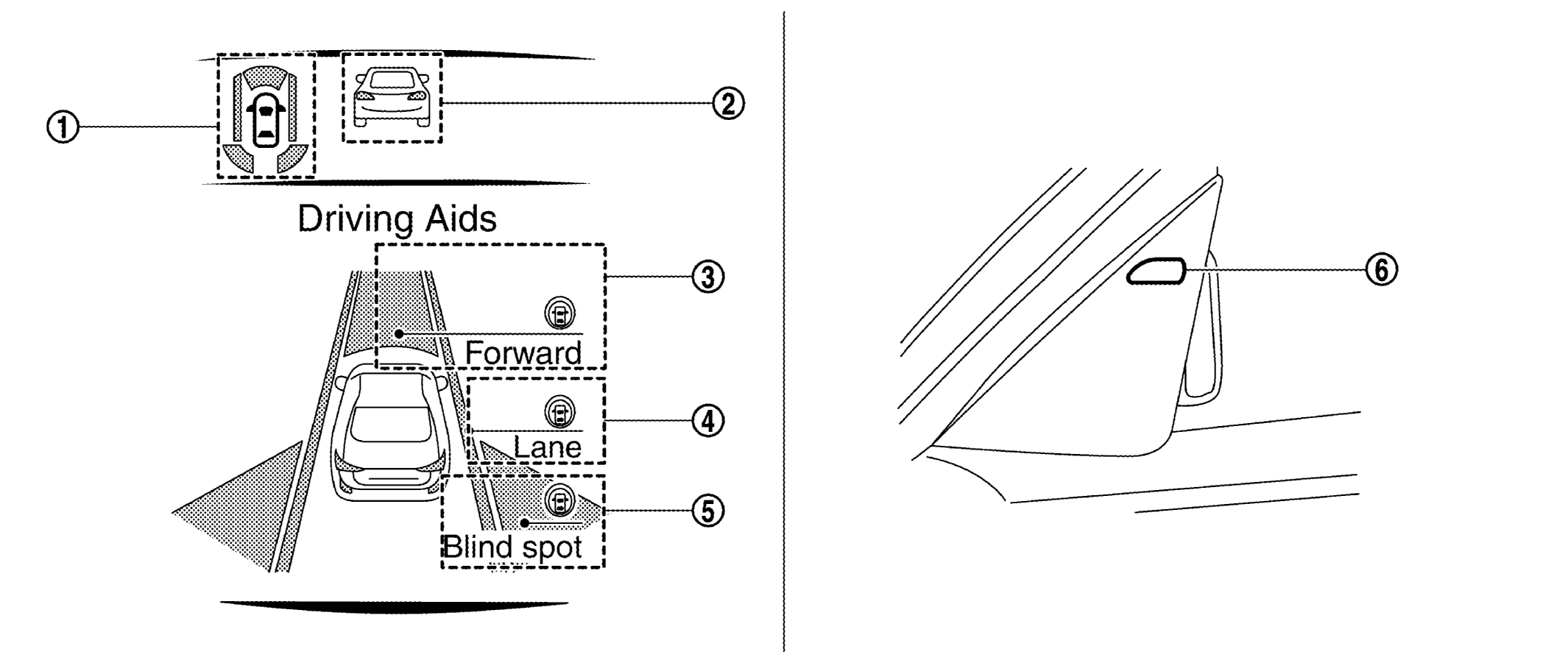

G09162698Courtesy of NISSAN NORTH AMERICA, INC.
No. Switch name Description
WHITE-1 Dynamic driver assistance systems indicator Indicates that DCA/LDP/Blind Spot Intervention systems are ON
WHITE-2 Vehicle ahead detection indicator Indicates whether it detects a vehicle ahead
NOTE:

The vehicle ahead detection indicator turns OFF when the no operation condition is satisfied
WHITE-3 Dynamic driver assistance systems indicator "Forward" position
(Dynamic driver assistance icon)		 Indicates that DCA systems are ON
WHITE-4 Dynamic driver assistance systems indicator "Lane" position
(Dynamic driver assistance icon)		 Indicates that LDP systems are ON
WHITE-5 Dynamic driver assistance systems indicator "Blind spot" position
(Dynamic driver assistance icon)		 Indicates that Blind Spot Intervention systems are ON
WHITE-6 Blind Spot Warning/Blind Spot Intervention indicator LH/RH
  • Illuminates when detect other vehicles beside vehicle in an adjacent lane
  • Blinks when Blind Spot Intervention system is warning to driver
