Component Inspection

1. Turn ignition switch OFF.
2. Disconnect multifunction switch harness connector.

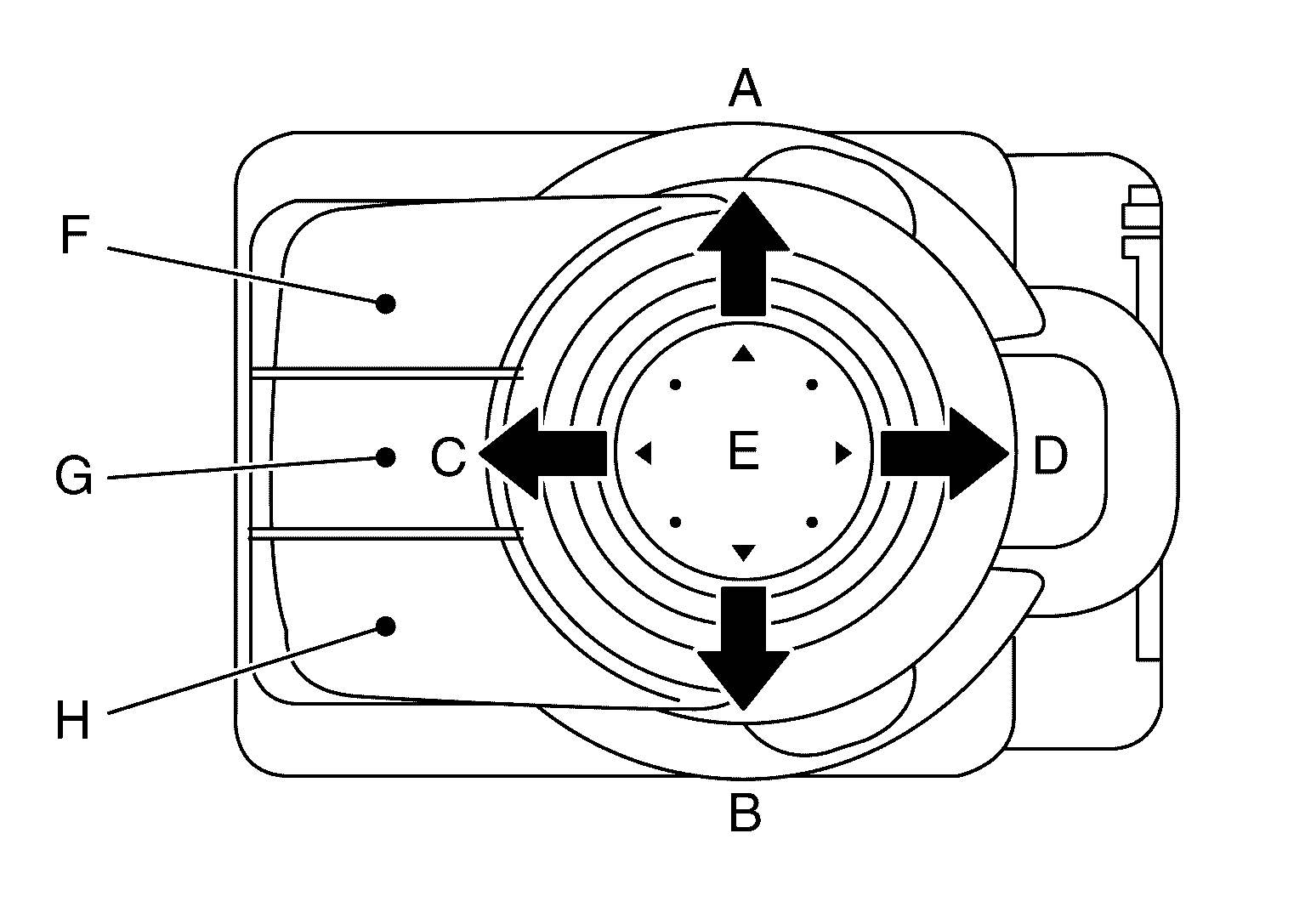

3. Check the resistance between multifunction switch terminals as per the following condition.

   Courtesy of NISSAN NORTH AMERICA, INC.

   Terminal		Switch position	Resistance (Ω)
   (+)	(-)
   1	2	All OFF	4632 - 4868
   		E	390.1 - 410.1
   		F	45.3 - 47.7
   4		All OFF	4632 - 4868
   		A	605.1 - 636.2
   		B	211.2 - 222.0
   		G	45.3 - 47.7
   10		All OFF	4632 - 4868
   		C	605.1 - 636.2
   		D	211.2 - 222.0
   		H	45.3 - 47.7

Is the inspection result normal?

YES

GO TO STEP 2  .

NO

Replace multifunction switch. Refer to REMOVAL AND INSTALLATION .

1. Reconnect all harness connectors disconnected.
2. Turn ignition switch ON.
3. Check the voltage between integral switch harness connector terminals as per the following condition.

   Integral switch			Condition		Voltage (Approx.)
   Connector	Terminals
   	(+)	(-)
   	Terminal
   M3	32	31	Multifunction switch	Rotate	2.0 - 4.3 V
   	37

Is the inspection result normal?

YES

INSPECTION END

NO

Replace multifunction switch. Refer to REMOVAL AND INSTALLATION .
