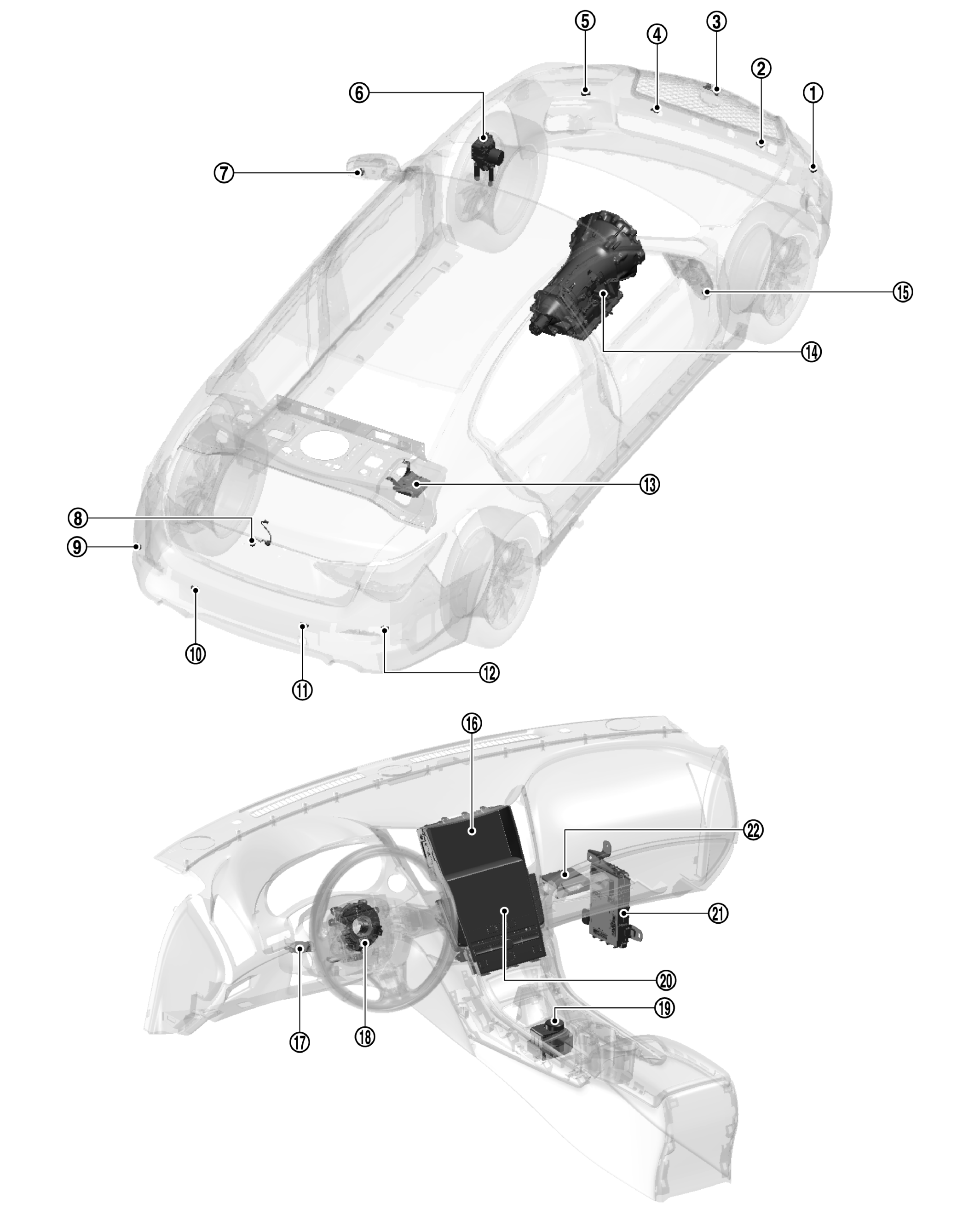

No.	Component	Function
	Corner sensor front RH	Refer to SONAR SENSOR .
	Center sensor front RH	Refer to SONAR SENSOR .
	Front camera	Refer to FRONT CAMERA .
	Center sensor front LH	Refer to SONAR SENSOR .
	Corner sensor front LH	Refer to SONAR SENSOR .
	ABS actuator and electric unit (control unit)	Transmits the following signals to the display control unit. Vehicle speed signal Rear LH wheel speed signal Rear RH wheel speed signal Refer to COMPONENT LOCATION , for detailed installation location.
	Side camera LH	Refer to SIDE CAMERA .
	Rear camera	Refer to REAR CAMERA .
	Corner sensor rear LH	Refer to SONAR SENSOR .
	Center sensor rear LH	Refer to SONAR SENSOR .
	Center sensor rear RH	Refer to SONAR SENSOR .
	Corner sensor rear RH	Refer to SONAR SENSOR .
	Around view monitor control unit	Refer to AROUND VIEW MONITOR CONTROL UNIT .
	TCM	Transmits the shift position signal to the around view monitor control unit. Refer to COMPONENT LOCATION , for detailed installation location.
	Side camera RH	Refer to SIDE CAMERA .
	Display control unit	Camera image signal that is received from around view monitor control unit is displayed in the display. Transmits the following signals to the around view monitor control unit. Camera switch signal
	Buzzer	Refer to BUZZER .
	Steering angle sensor	Refer to STEERING ANGLE SENSOR .
	Multifunction switch	When the "CAMERA" switch is pressed, the push switch B signal is transmitted to integral switch.
	Integral switch	Push switch B signal and camera switch signal are transmitted from integral switch to the display control unit.
	BCM	Transmits the following signals to the around view monitor control unit. Door switch signal Trunk switch signal Refer to COMPONENT LOCATION , for detailed installation location.
	Sonar control unit	Refer to SONAR CONTROL UNIT .
