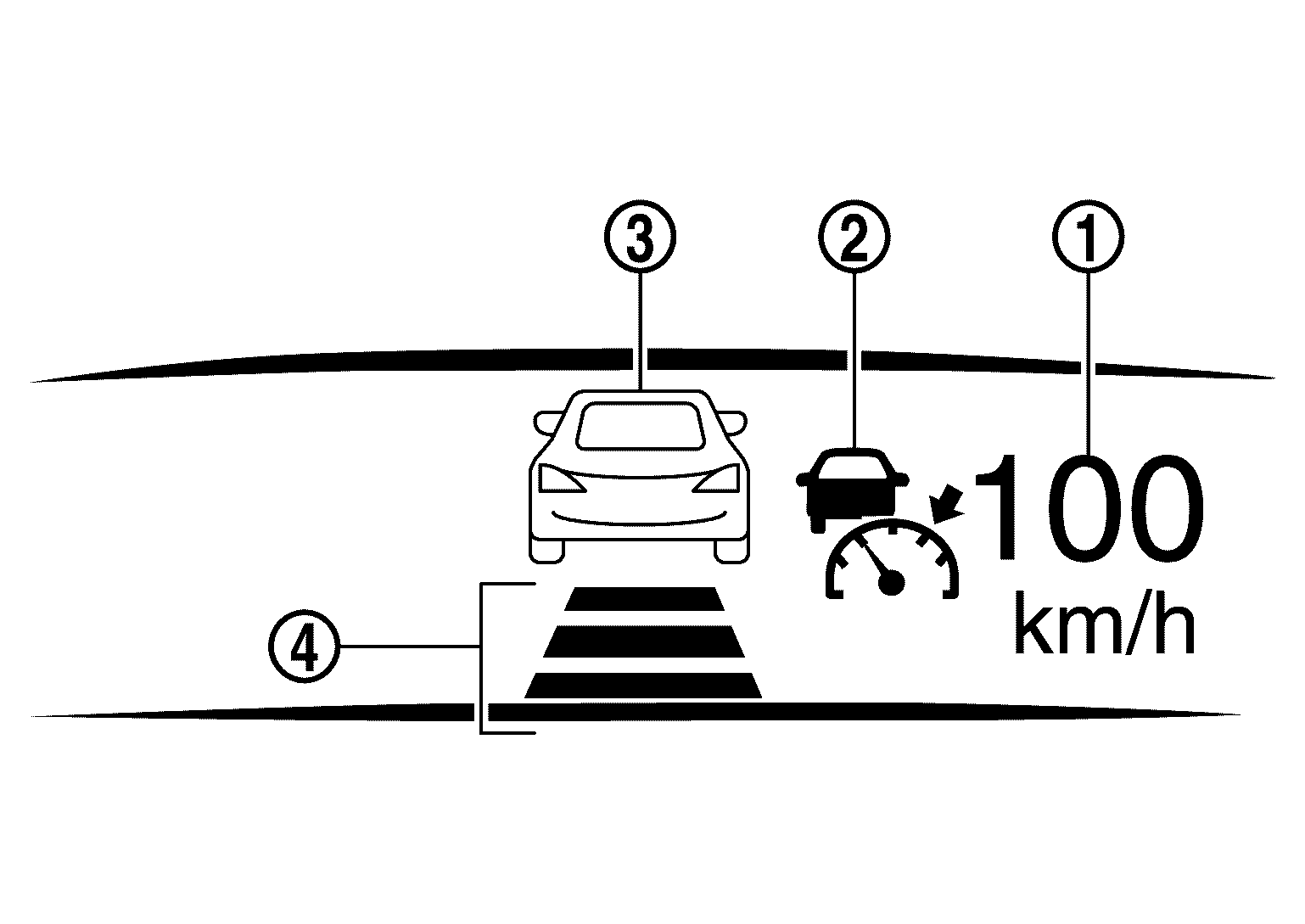

Set vehicle speed indicator |
- Indicates the set vehicle speed
- Indicates 32 km/h (20 MPH) when setting less than 32 km/h (20 MPH)
|
 |
ICC system warning lamp (yellow) |
Indicates that a malfunction occurs in the ICC system |
| MAIN switch indicator (white) |
Indicates that the MAIN switch is ON (ICC system ON) |
| Set switch indicator (green) |
Indicates that the set vehicle to vehicle distance control mode is controlled |
 |
Vehicle ahead detection indicator |
Indicates whether it detects a vehicle ahead |
 |
Set distance indicator |
Indicates the selected distance between vehicles set with the DISTANCE switch |
