Chassis Control Display: Design/Purpose

• The warning message is displayed on the vehicle information display when chassis control detected the system malfunction.
• When the aiming of lane camera unit is incomplete, a warning message is displayed.
• Each chassis control system information is displayed on the vehicle information display.

WARNING MESSAGE

SYSTEM INFORMATION

Design	Description

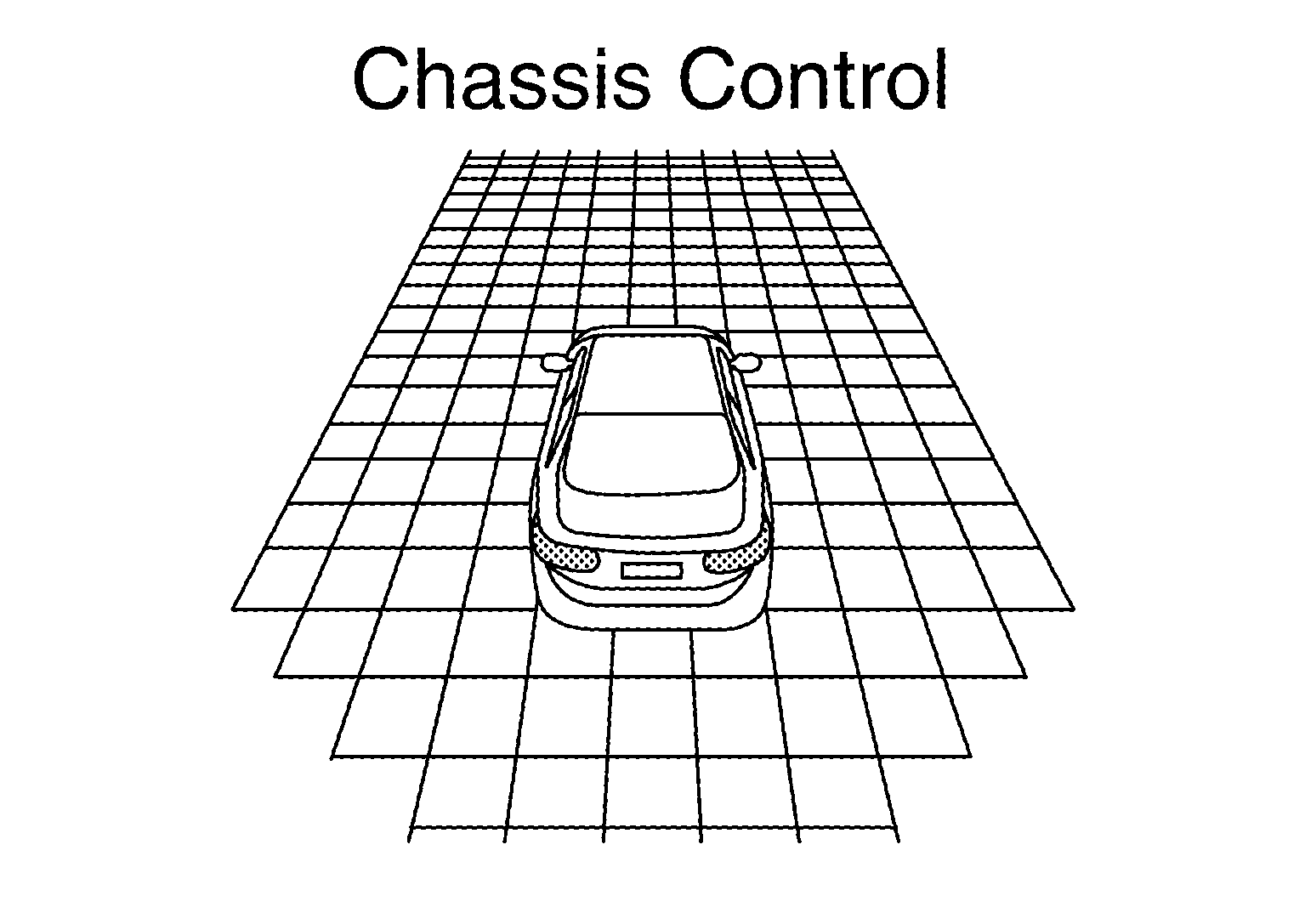

Courtesy of NISSAN NORTH AMERICA, INC.	Active trace control inactive

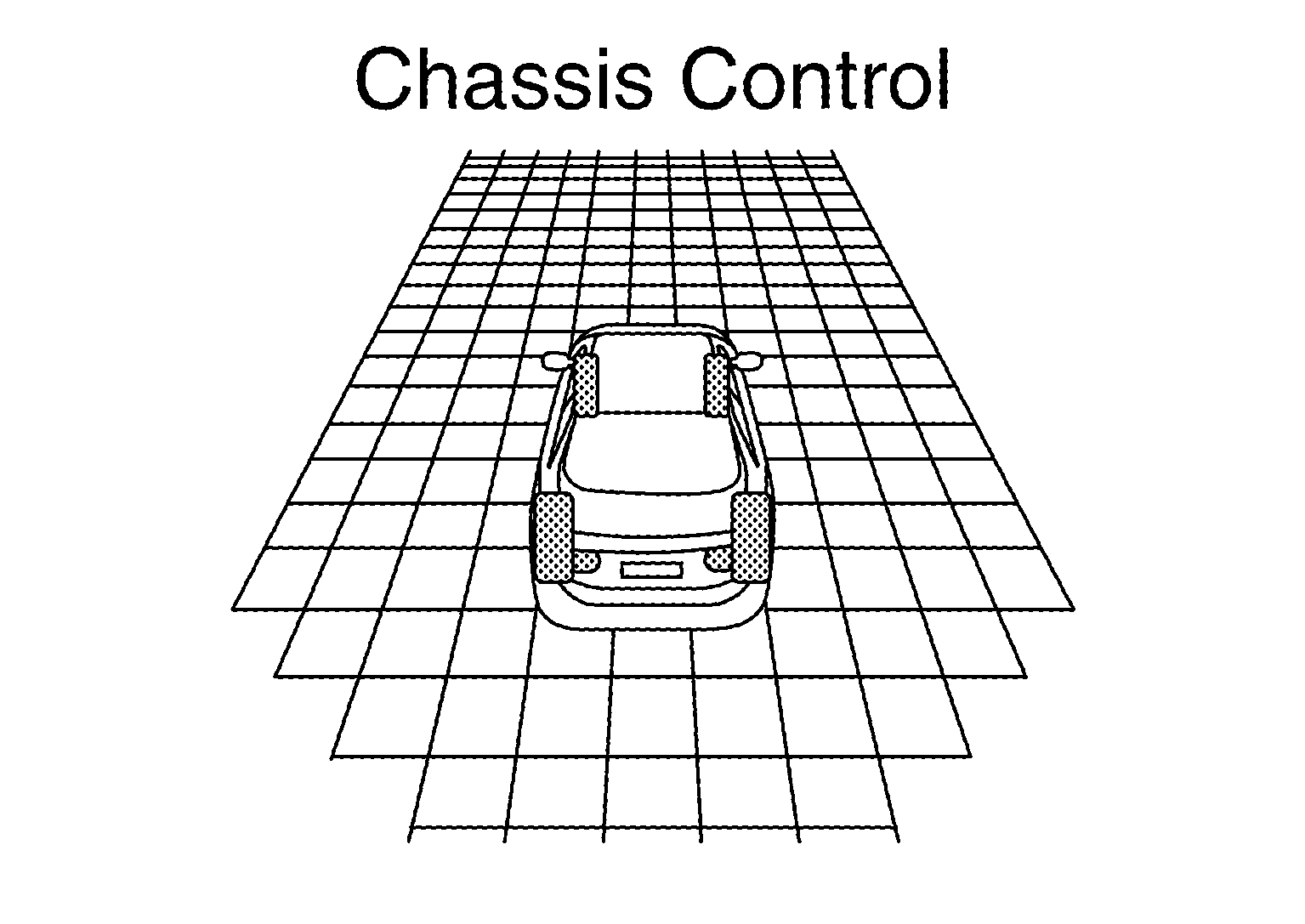

Courtesy of NISSAN NORTH AMERICA, INC.	Active trace control is active. (Steering angle is less than the specified angle.)

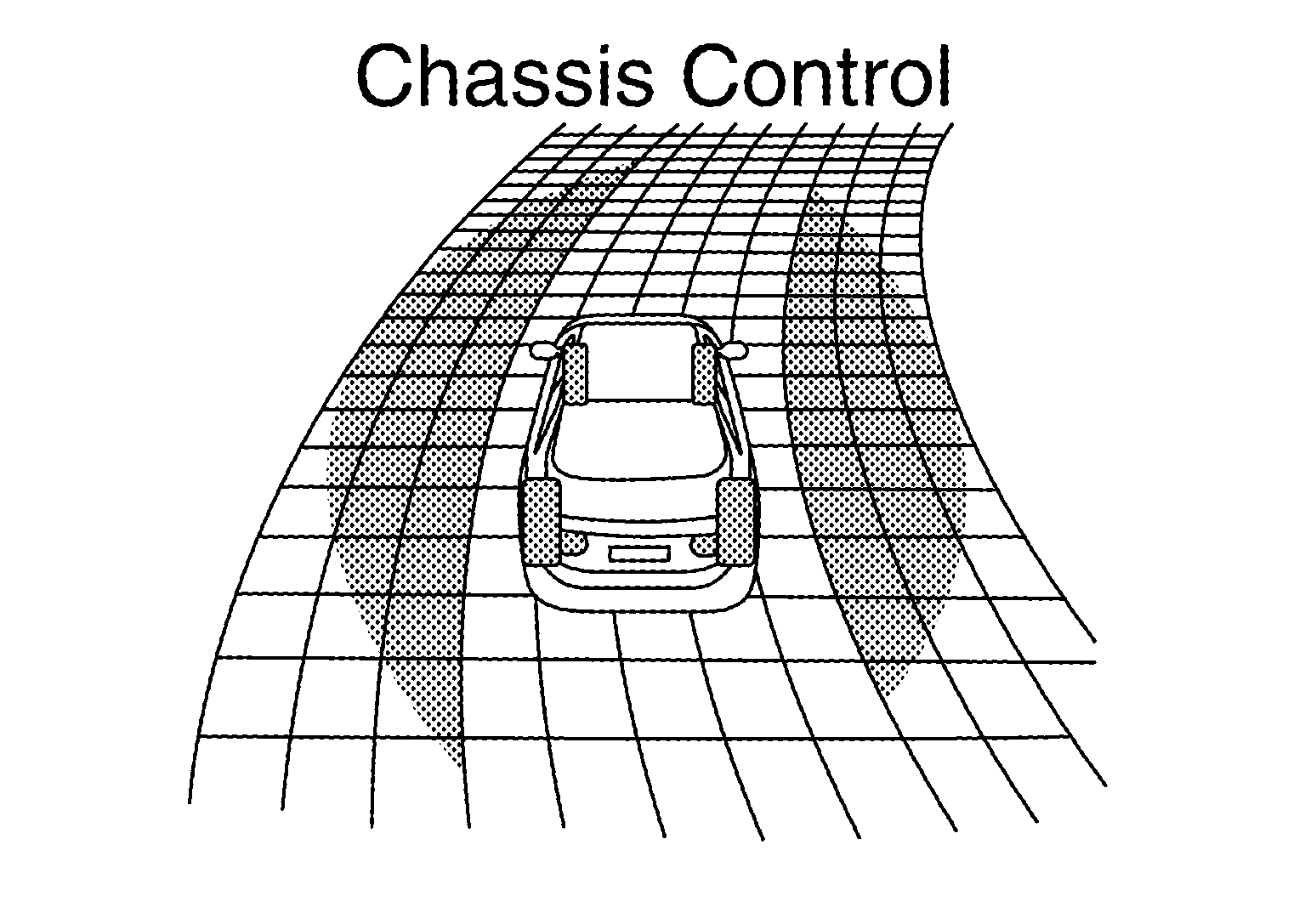

Courtesy of NISSAN NORTH AMERICA, INC.	Active trace control is active. (Steering angle is the specified angle or more in the leftward direction.)

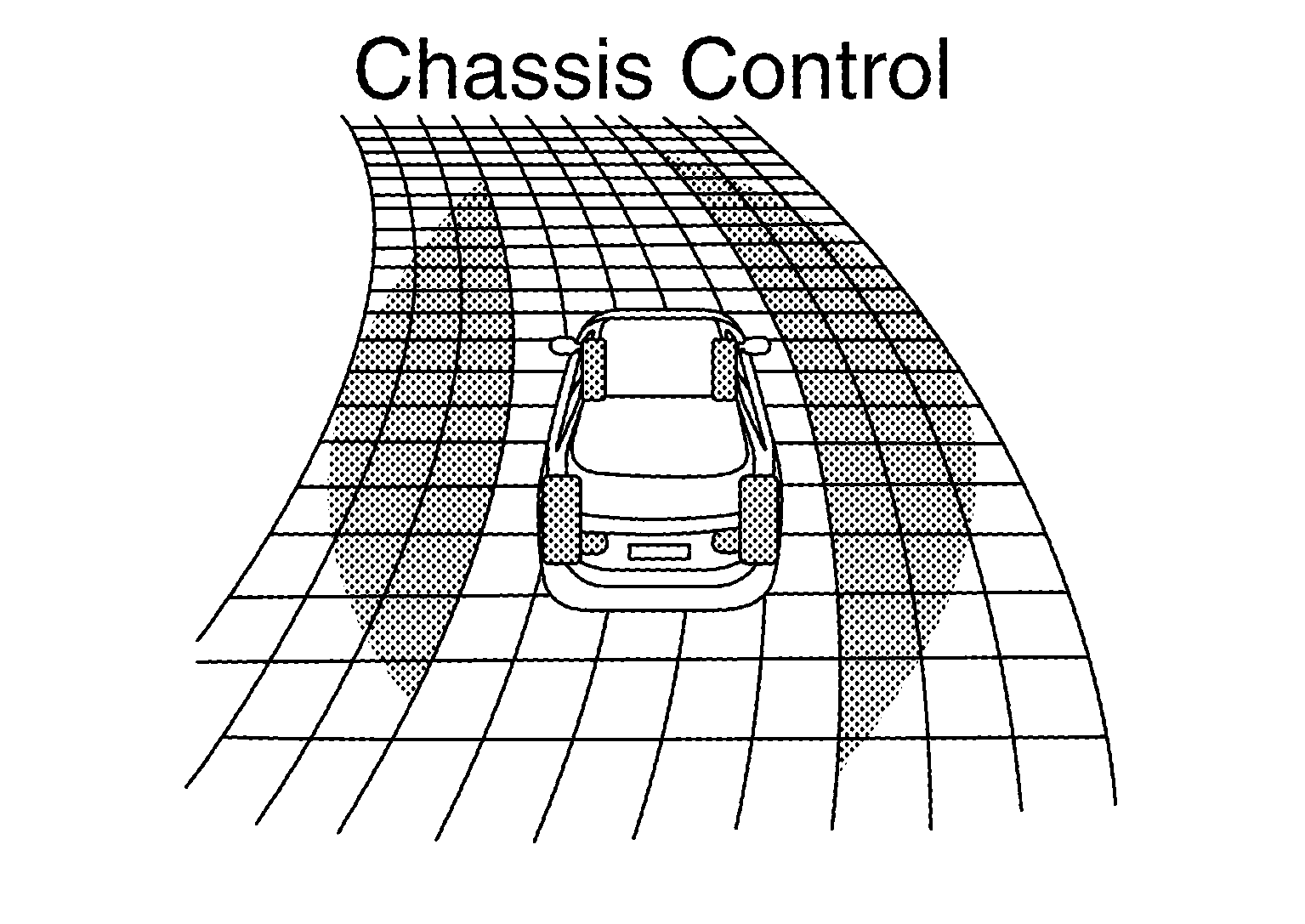

Courtesy of NISSAN NORTH AMERICA, INC.	Active trace control is active. (Steering angle is the specified angle or more in the rightward direction.)

Design	Description

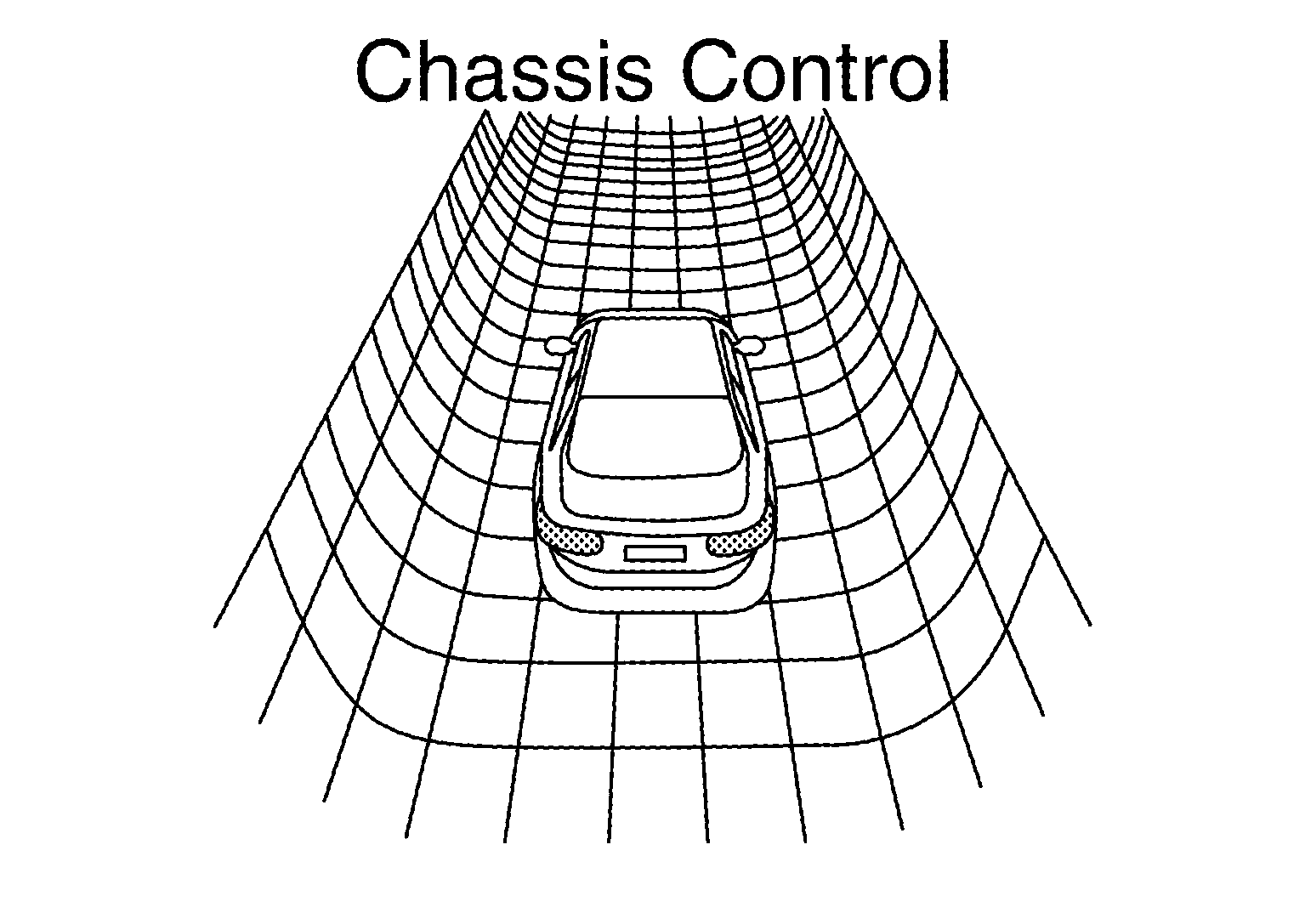

Courtesy of NISSAN NORTH AMERICA, INC.	Active Lane Control is turned ON.

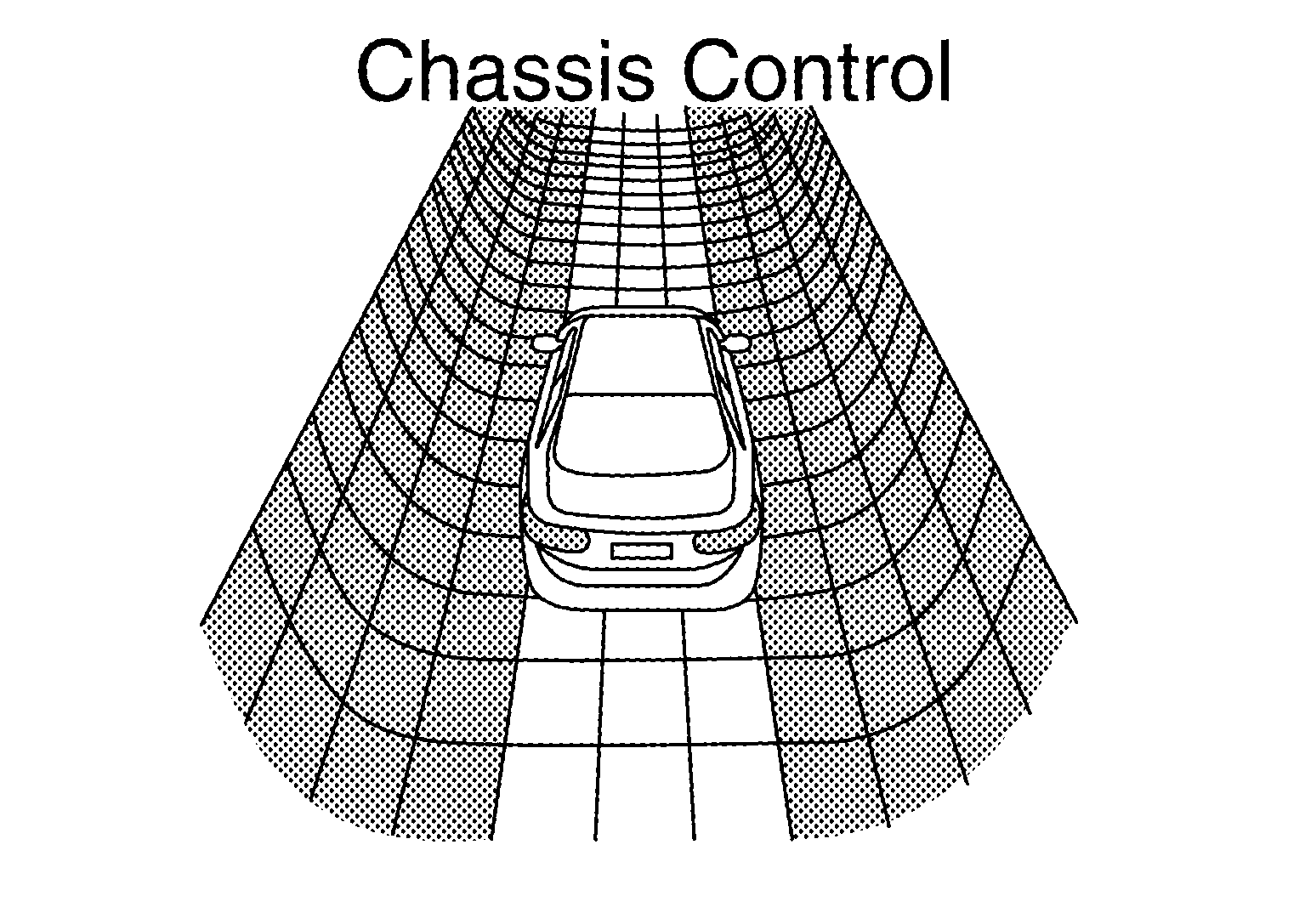

Courtesy of NISSAN NORTH AMERICA, INC.	Active Lane Control is operational or is operating.
