Display And Warning (DCA/LDP/Blind Spot Intervention) - Warning Operation

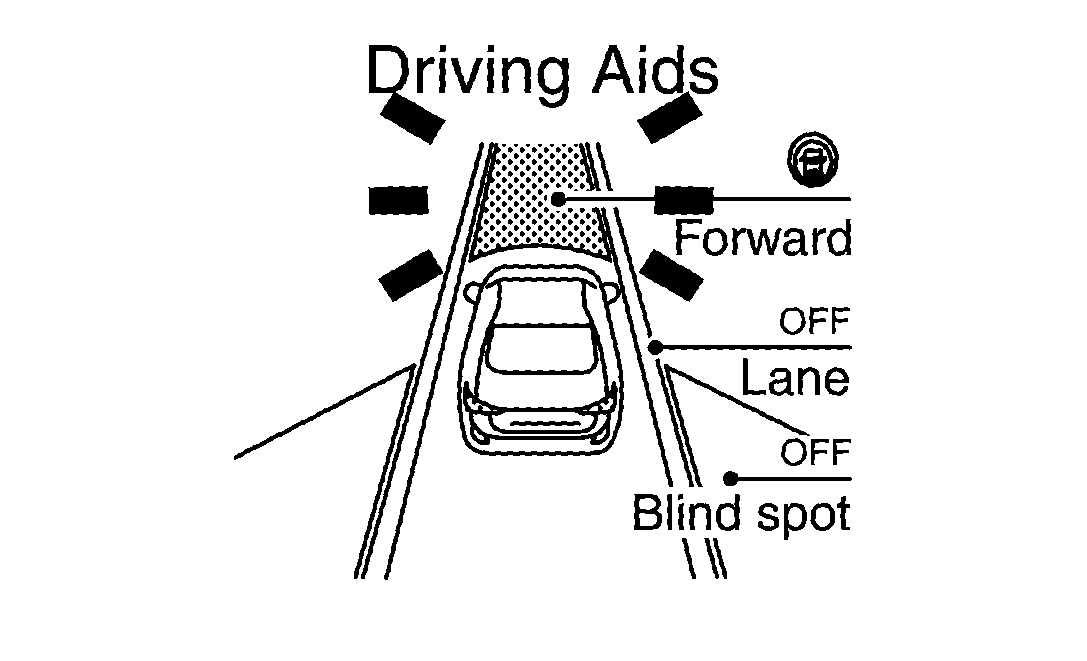

DCA operation

Approach Warning

If own vehicle comes closer to the vehicle ahead due to rapid deceleration of that vehicle or if another vehicle cuts in, the system warns the driver with the chime and DCA system display. Decelerate by depressing the brake pedal to maintain a safe vehicle distance if:
- The vehicle ahead detection indicator blinks.
- The chime sounds.
The warning chime may not sound in some cases when there is a short distance between vehicles. Some examples are:
- When the vehicles are traveling at the same speed and the distance between vehicles is not changing
- When the vehicle ahead is traveling faster and the distance between vehicles is increasing
- When a vehicle cuts in near own vehicle

The warning chime will not sound when own vehicle approaches vehicles that are parked or moving slowly.

Condition	Action
Condition	Dynamics action	Display on combination meter	Indicator	Buzzer
System ON	-	Courtesy of NISSAN NORTH AMERICA, INC.	Green	-
When the system detected vehicle ahead When the system judges that the brake operation by the driver is necessary	Accelerator pedal actuation Operates brake	Courtesy of NISSAN NORTH AMERICA, INC.	Yellow (Blink)	Beep
	Accelerator pedal actuation Operates brake	Courtesy of NISSAN NORTH AMERICA, INC.	Yellow (Blink)	Beep

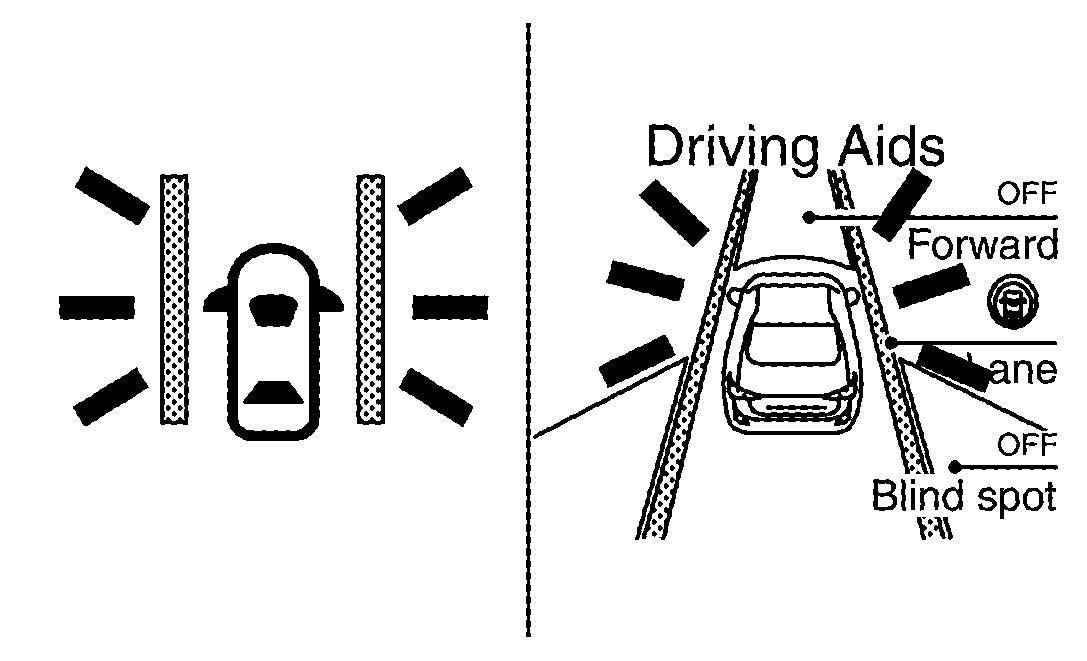

LDP operation

Vehicle condition/ Driver's operation			Action
Vehicle speed (Approx.) [km/h (MPH)]	Turn signal condition	Status of vehicle close to lane marker	Yawing control	Indication on the combination meter	Indicator	Buzzer
Less than Approx. 60 km/h (37 MPH)	-	Close to lane marker	OFF	Courtesy of NISSAN NORTH AMERICA, INC.	Green	-
Approx. 70 km/h (45 MPH) or more	Turn signal OFF Turn signal ON (Opposite to the deviate side)	Close to lane marker	ON	Courtesy of NISSAN NORTH AMERICA, INC.	Yellow (Blink)	Short continuous beeps
	Turn signal ON (Deviate side)	Close to lane marker	OFF	Courtesy of NISSAN NORTH AMERICA, INC.	Green	-
	Turn signal OFF Turn signal ON (Opposite to the deviate side)	Close to lane marker with soft braking	OFF	Courtesy of NISSAN NORTH AMERICA, INC.	Yellow (Blink)	Short continuous beeps

NOTE:

After the operating conditions of warning are satisfied, the warning continues until the vehicle speed reaches approximately 60 km/h (37 MPH). Refer to SYSTEM DESCRIPTION .

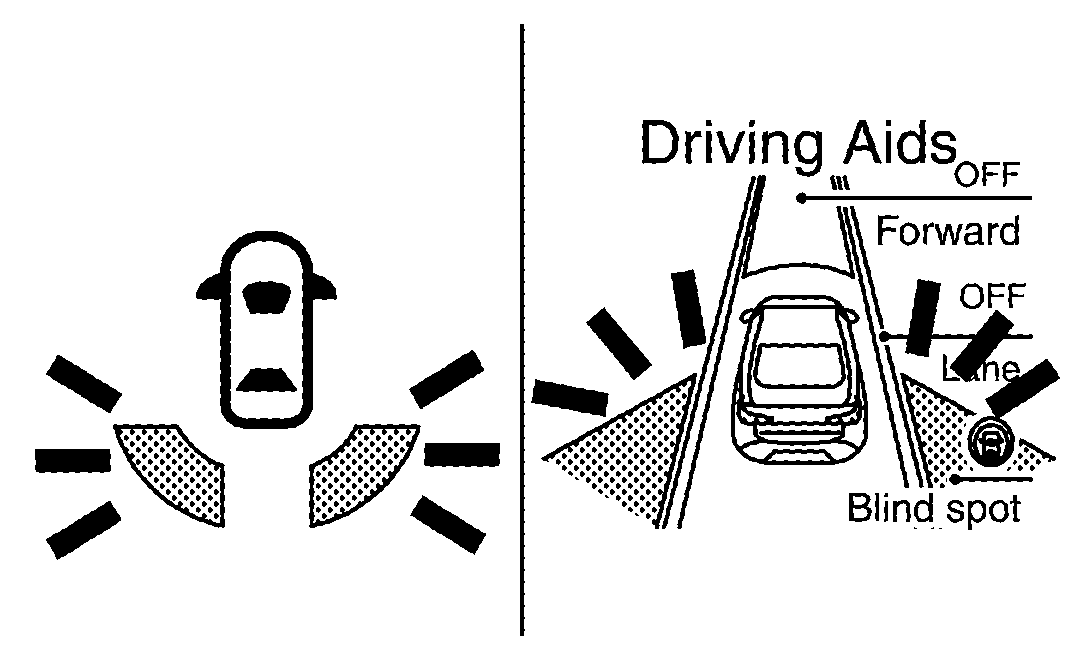

Blind Spot Intervention operation

Vehicle condition/ Driver's operation			Action
Vehicle speed (Approx.) [km/h (MPH)]	Status of vehicle detection within detection area	Status of approach to adjacent lane	Indication on the Blind Spot Intervention indicator	Yaw control	Indication on the combination meter	Indicator	Buzzer
Less than approx. 60 (37)	-	-	OFF	OFF	Courtesy of NISSAN NORTH AMERICA, INC.	Green	OFF
Approx. 60 (37) or more	Vehicle is not detected	-	OFF	OFF	Courtesy of NISSAN NORTH AMERICA, INC.	Green	OFF
	Vehicle is detected	Not approaching	ON	OFF	Courtesy of NISSAN NORTH AMERICA, INC.	Green	OFF
	Vehicle is detected	Approaching	Blink	ON	Courtesy of NISSAN NORTH AMERICA, INC.	Yellow (Blink)	Short continuous beeps

NOTE:

If vehicle speed exceeds approximately 32 km/h (20 MPH), BSW function operates until the vehicle speed becomes lower than approximately 29 km/h (18 MPH).
Time shown in the figure is approximate time.
Always Blind Spot Intervention system operates together with BSW system. Whenever Blind Spot Intervention system is turned ON by pushing the dynamic driver assistance switch, BSW system also be turned on even if the BSW system is turned off.
